3-CONTROLSANDINSTRUMENTS

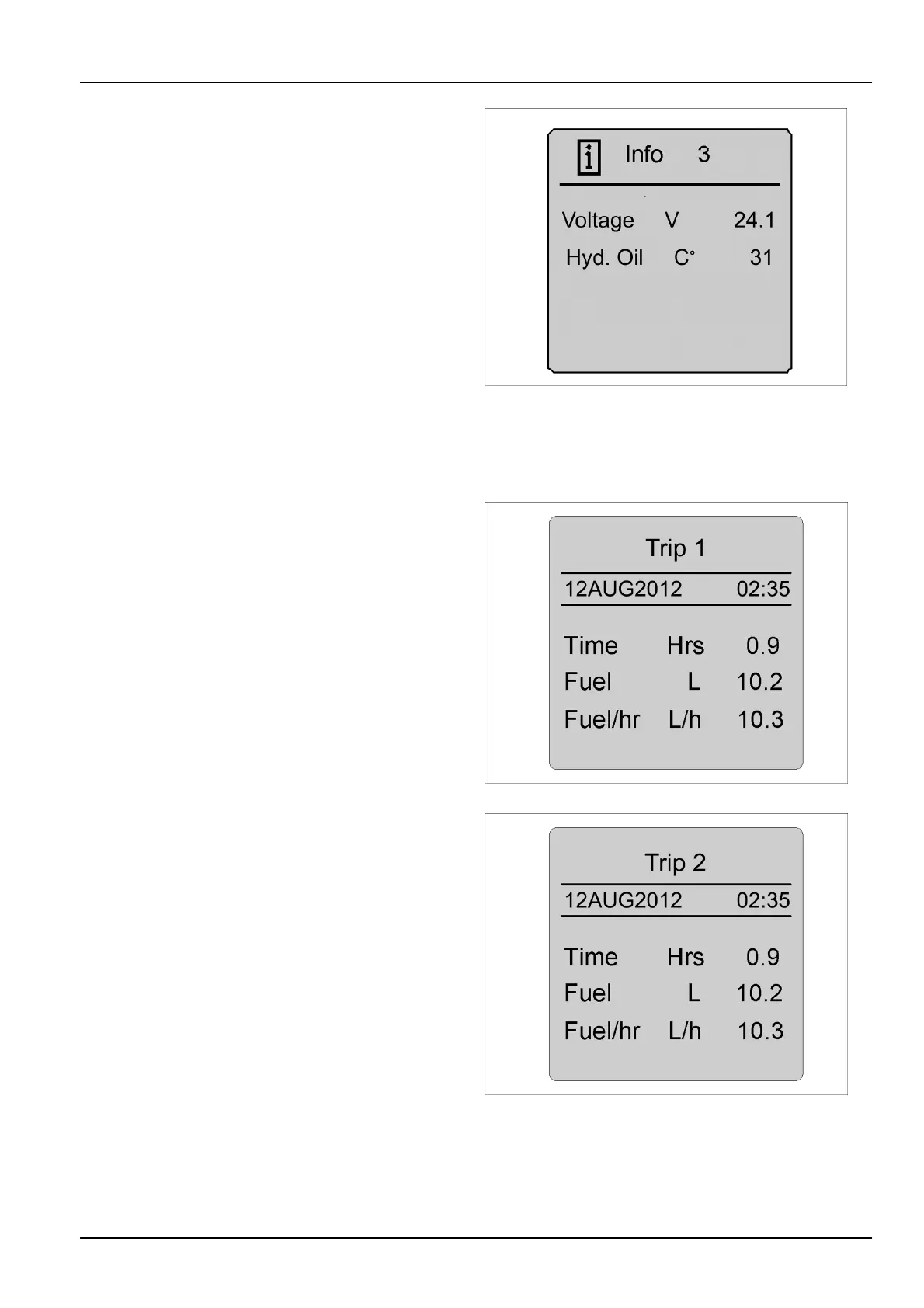

PushthedownswitchagaintodisplaytheInfo3screen.

Thisscreendisplaysthevoltageandhydraulicoiltemper-

ature.

RAIL12DOZ0822AA7

Tripscreens

NOTE:TheTripscreenscanonlybeaccessedwiththe

keyintheONposition,andtheengineOFF .

PressthedownswitchagainandtheTrip1screenwill

display.TheLCDprovidestwotripcomputers.Thetrip

screenswilldisplaysincelastresetthetotaltimeinhours,

thetotalfuel,andtheaveragefuelconsumptionperhour.

RCPH10WHL353AAH8

Bycontinuingtoscrolldown,theTrip2screenwilldisplay.

Trip1andTrip2screenscanberesetindependently.

Previousscreenscanbeaccessedbyusingtheuparrow

switch.

RCPH10WHL354AAH9

3-43
