28-20
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 28 Configuring Twice NAT
Configuration Examples for Twice NAT
By default, the NAT rule is added to the end of section 1. If you want to add a NAT rule to section 3,
after the network object NAT rules, choose Add NAT Rule After Network Object NAT Rules.
The Add NAT Rule dialog box appears.

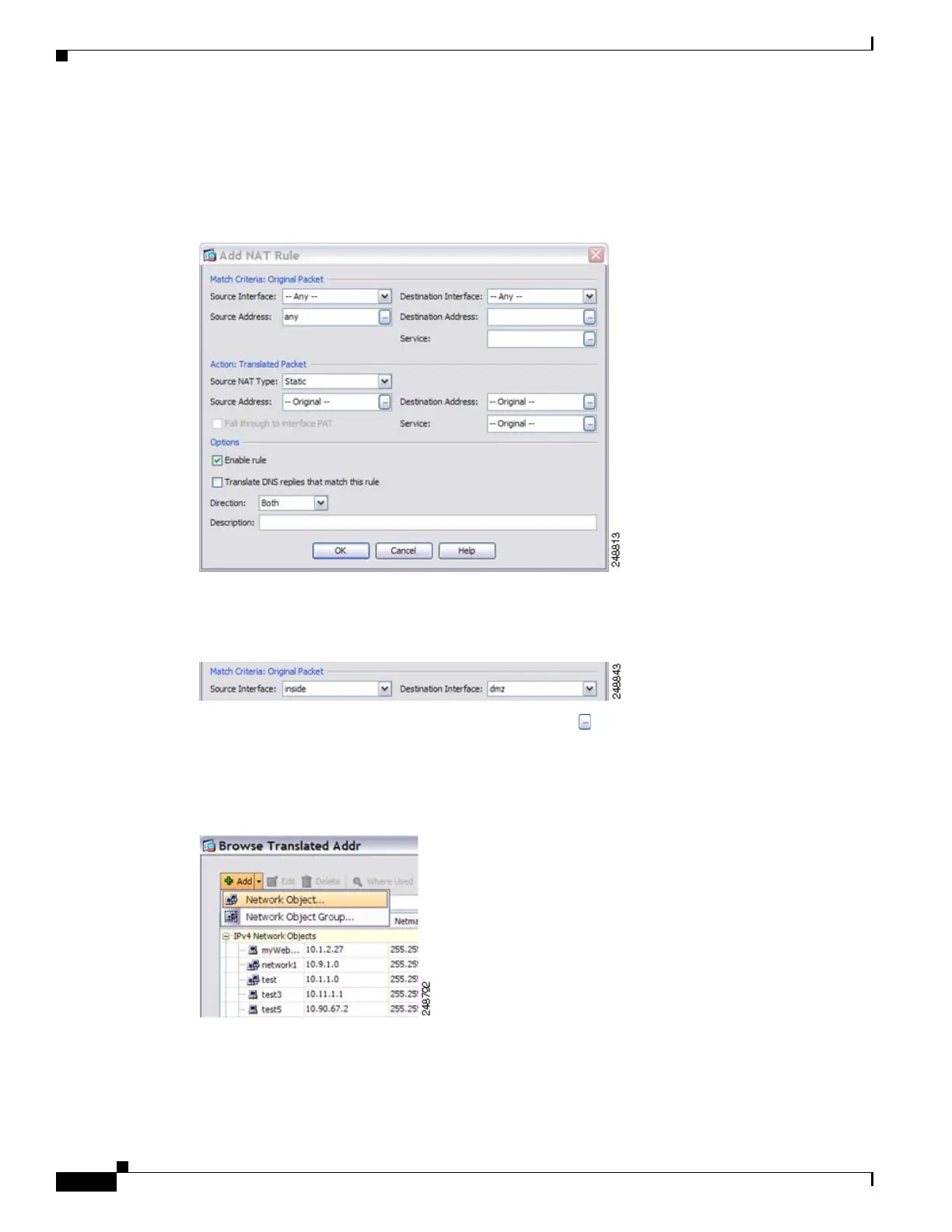

Figure 28-31 Add NAT Rule Dialog Box
Step 2
Set the source and destination interfaces:
Figure 28-32 Setting the Interfaces
Step 3 For the Original Source Address, click the browse button to add a new network object for the inside
network in the Browse Original Source Address dialog box.
a. Add the new network object.
Figure 28-33 Adding a New Network Object for the Inside Network
b.
Define the inside network addresses, and click OK.
