Chapter 28 Configuring Twice NAT
Configuration Examples for Twice NAT

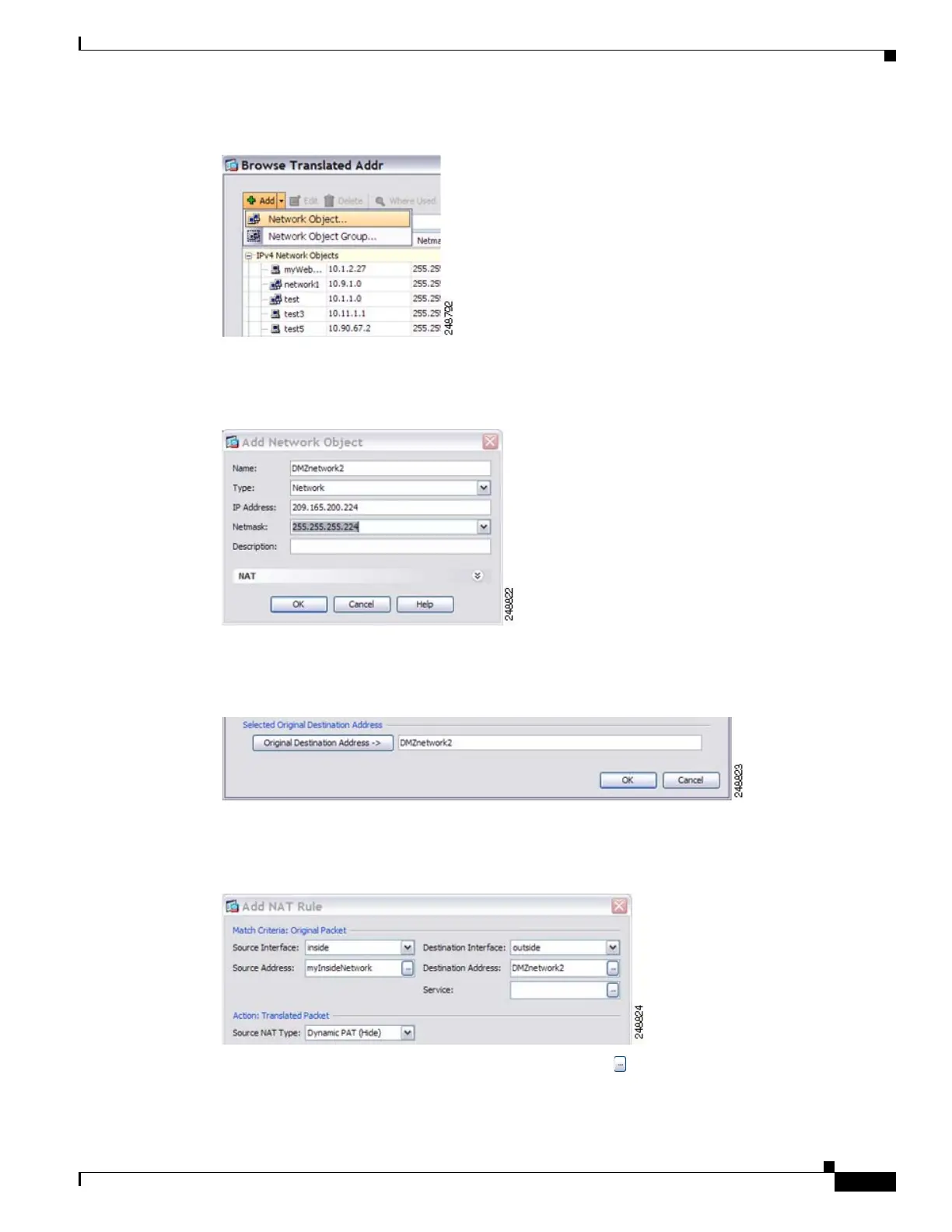

Figure 28-47 Adding a New Network Object for the DMZ Network 2
b.
Define the DMZ network 2 addresses, and click OK.
Figure 28-48 Defining the DMZ Network 2 Addresses
c.
Choose the new network object by double-clicking it. Click OK to return to the NAT configuration.
Figure 28-49 Choosing the New Network Object
Step 13
Set the NAT Type to Dynamic PAT (Hide):
Figure 28-50 Setting the NAT Type
Step 14
For the Translated Source Address, click the browse button to add a new network object for the PAT
address in the Browse Translated Source Address dialog box.
a. Add the new network object.
