28-34
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 28 Configuring Twice NAT
Configuration Examples for Twice NAT

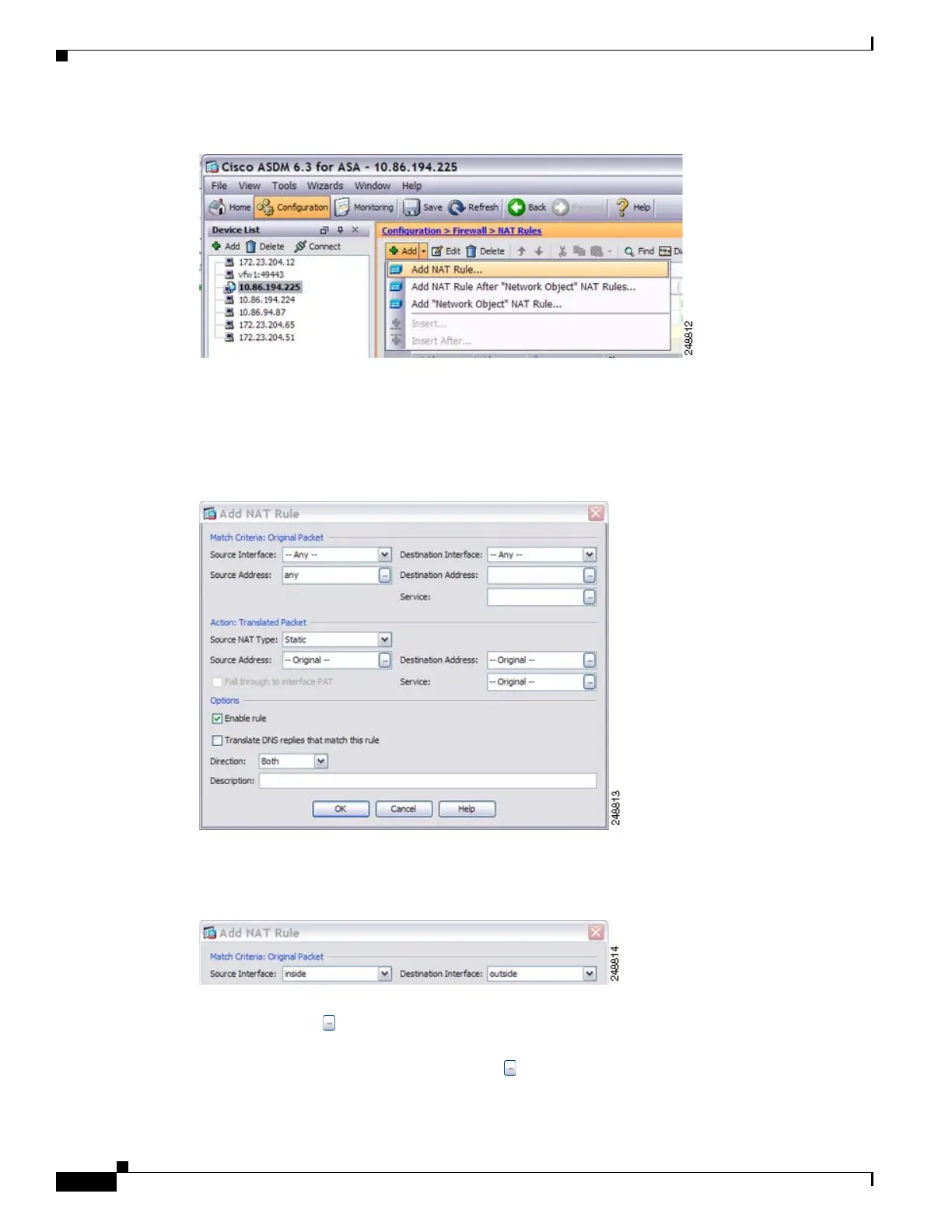

Figure 28-73 Adding a NAT Rule
By default, the NAT rule is added to the end of section 1. If you want to add a NAT rule to section 3,
after the network object NAT rules, choose Add NAT Rule After Network Object NAT Rules.
The Add NAT Rule dialog box appears.
Figure 28-74 Add NAT Rule Dialog Box
Step 11
Set the real and mapped interfaces:
Figure 28-75 Setting the Interfaces
Step 12
For the Original Source Address, type the name of the inside network object (myInsideNetwork) or click
the browse button to choose it.
Step 13 For the Original Destination Address, type the name of the Telnet/web server network object
(TelnetWebServer) or click the browse button to choose it.
