28-35
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 28 Configuring Twice NAT
Configuration Examples for Twice NAT

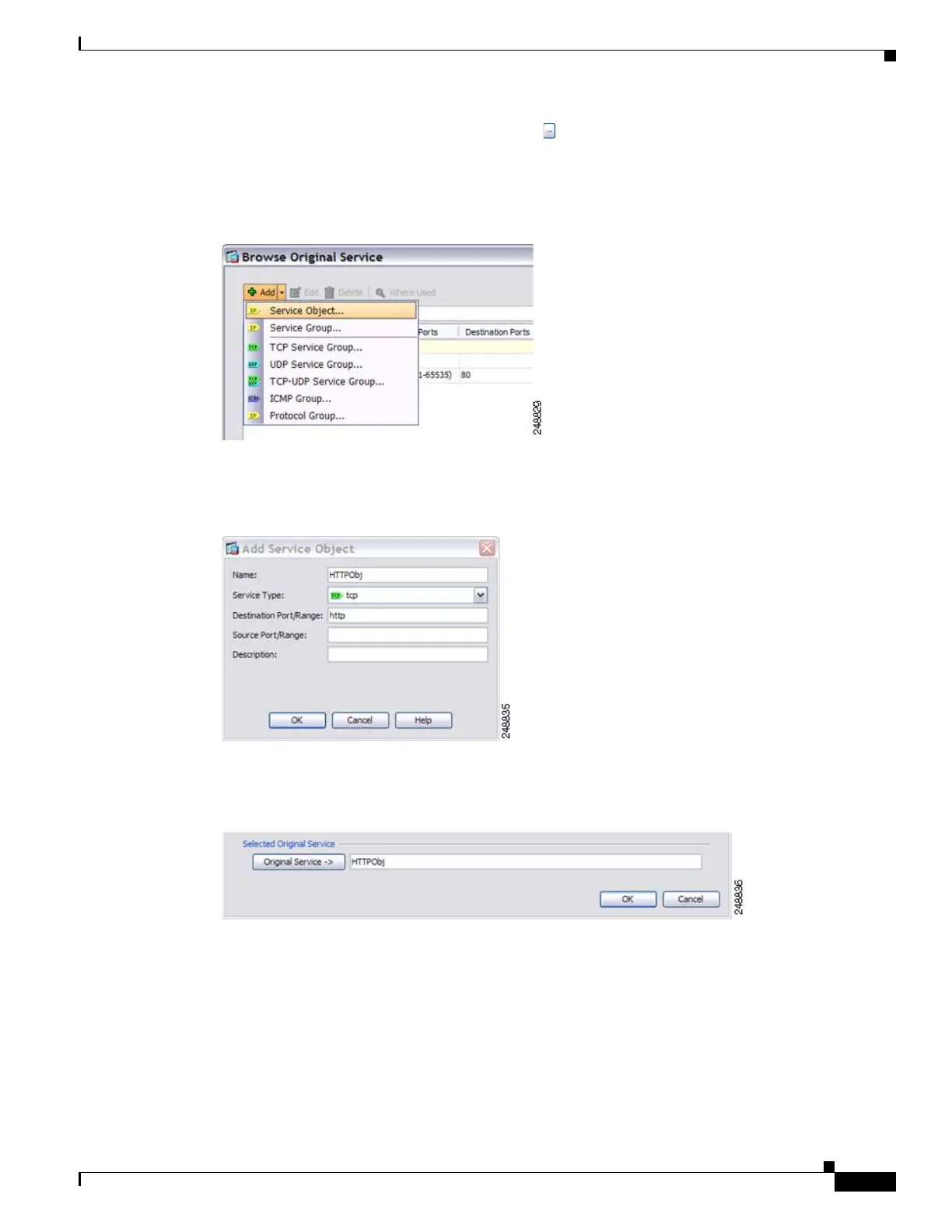

Step 14 For the Original Service, click the browse button to add a new service object for HTTP in the Browse
Original Service dialog box.
a. Add the new service object.
Figure 28-76 Adding a New Service Object for HTTP
b.
Define the protocol and port, and click OK.
Figure 28-77 Defining the Protocol and Port
c. Choose the new service object by double-clicking it. Click OK to return to the NAT configuration.
Figure 28-78 Choosing the New Service Object
Step 15
Set the NAT Type to Dynamic PAT (Hide):
