Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 28 Configuring Twice NAT
Configuration Examples for Twice NAT

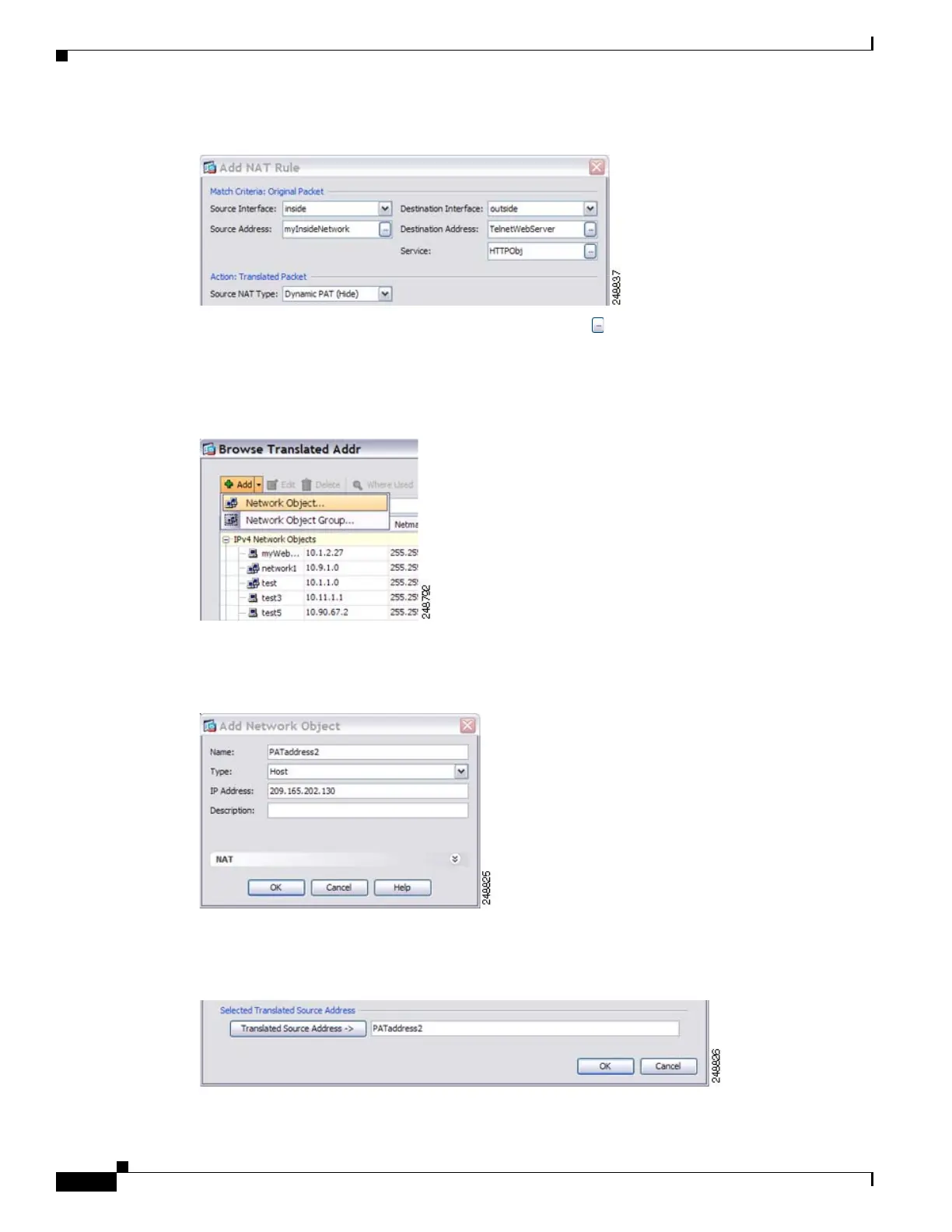

Figure 28-79 Setting the NAT Type
Step 16
For the Translated Source Address, click the browse button to add a new network object for the PAT
address in the Browse Translated Source Address dialog box.
a. Add the new network object.
Figure 28-80 Adding a New Network Object for the PAT Address
b. Define the PAT address, and click OK.
Figure 28-81 Defining the PAT Address
c. Choose the new network object by double-clicking it. Click OK to return to the NAT configuration.
Figure 28-82 Choosing the New Network Object
