Chapter 2 Getting Started with CMS
Topology View

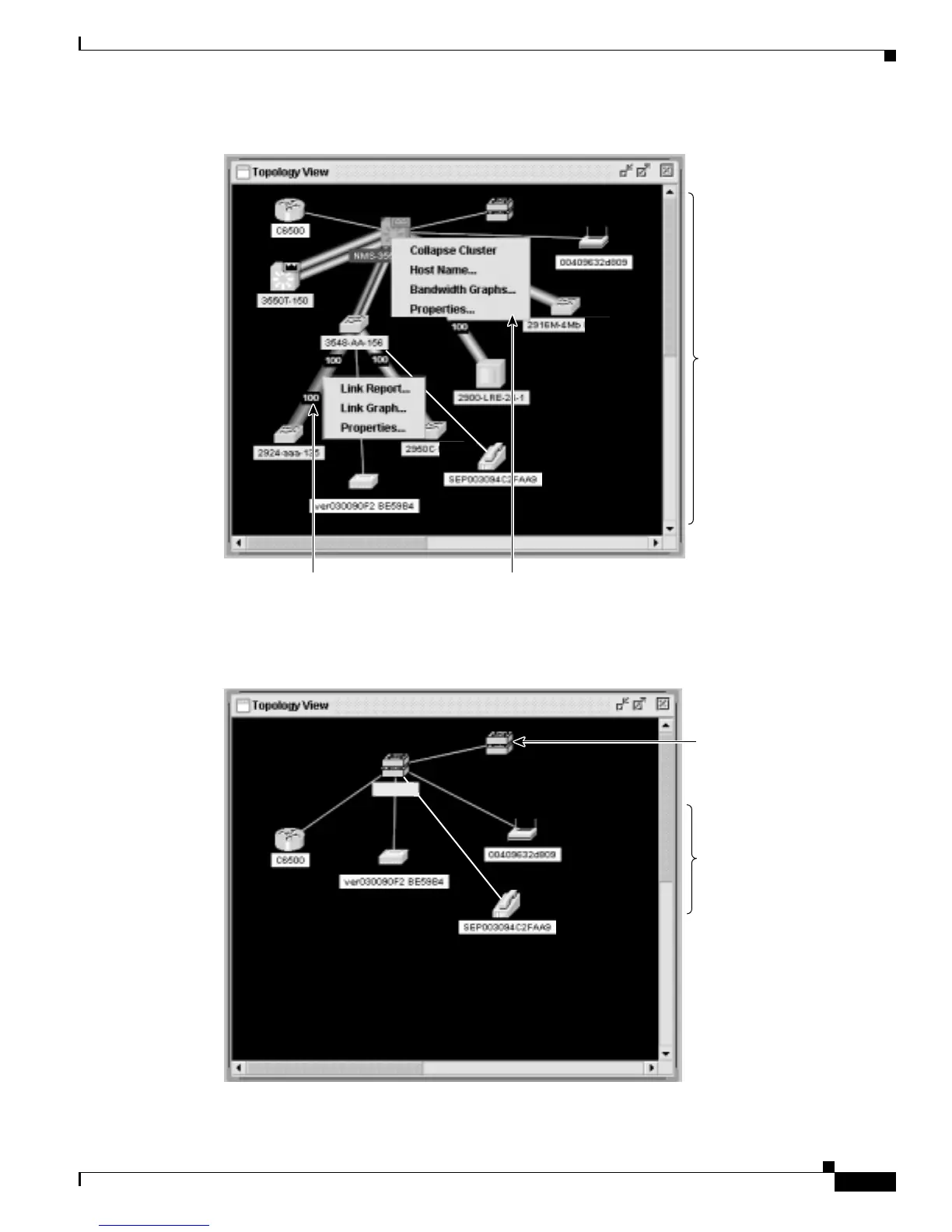

Figure 2-6 Expand Cluster View
Figure 2-7 Collapse Cluster View
Right-click a
link icon to display
a link popup menu.
Cluster members of
cluster1 and other
devices connected
to cluster1.
65722
Right-click a
device icon to display
a device popup menu.
Devices connected
to cluster1 that are
not eligible to join
the cluster.
Neighboring cluster
connected to
cluster1.
65723
cluster1
