Chapter 18 Configuring STP
Understanding Spanning-Tree Features

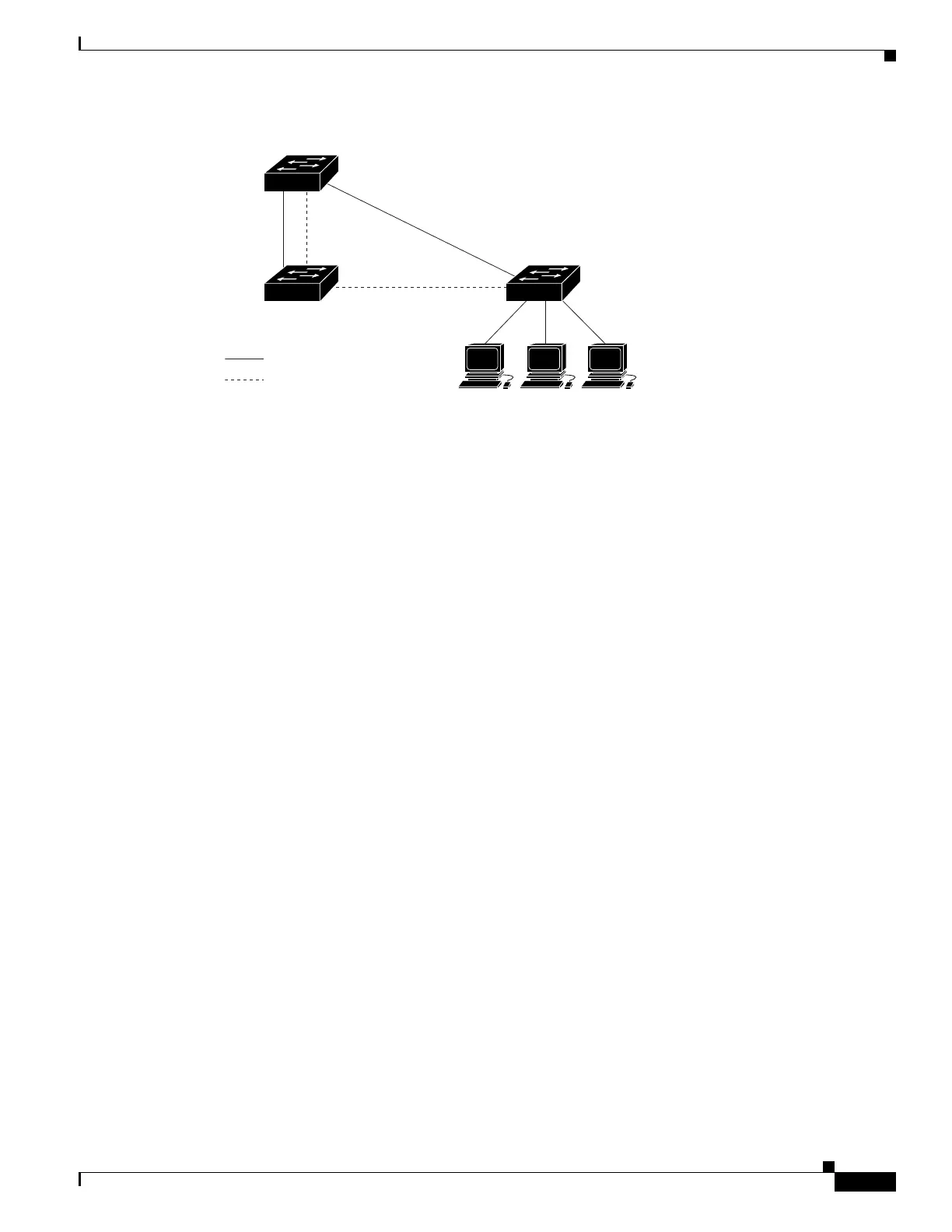

Figure 18-4 Spanning Tree and Redundant Connectivity
You can also create redundant links between switches by using EtherChannel groups. For more
information, see Chapter 38, “Configuring EtherChannels and Link-State Tracking.”
Spanning-Tree Address Management
IEEE 802.1D specifies 17 multicast addresses, ranging from 0x00180C2000000 to 0x0180C2000010, to
be used by different bridge protocols. These addresses are static addresses that cannot be removed.
Regardless of the spanning-tree state, each switch in the stack receives but does not forward packets
de
stined for addresses between 0x0180C2000000 and 0x0180C200000F.
If spanning tree is enabled, the CPU on the switch or on each switch in the stack receives packets
de
stined for 0x0180C2000000 and 0x0180C2000010. If spanning tree is disabled, the switch or each
switch in the stack forwards those packets as unknown multicast addresses.
Accelerated Aging to Retain Connectivity
The default for aging dynamic addresses is 5 minutes, the default setting of the mac address-table
aging-time global configuration command. However, a spanning-tree reconfiguration can cause many
station locations to change. Because these stations could be unreachable for 5 minutes or more during a
reconfiguration, the address-aging time is accelerated so that station addresses can be dropped from the
address table and then relearned. The accelerated aging is the same as the forward-delay parameter value
(spanning-tree vlan vlan-id forward-time seconds global configuration command) when the spanning
tree reconfigures.
Because each VLAN is a separate spanning-tree instance, the switch accelerates aging on a per-VLAN
b
asis. A spanning-tree reconfiguration on one VLAN can cause the dynamic addresses learned on that
VLAN to be subject to accelerated aging. Dynamic addresses on other VLANs can be unaffected and
remain subject to the aging interval entered for the switch.
101226 Workstations
Active link
Blocked link

Cisco Catalyst 3750-E Specifications

General

Series	Catalyst 3750-E
Switching Capacity	32 Gbps
Stacking Bandwidth	32 Gbps
StackWise Plus	Yes
Layer Support	Layer 3
MAC Address Table Size	12, 000 entries
RAM	256 MB
Flash Memory	64 MB
Memory	256 MB DRAM, 64 MB Flash
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	48 10/100/1000 Ethernet ports
Form Factor	Rack-mountable
Jumbo Frame Support	Yes
Input Voltage	100 to 240 VAC
Storage Temperature	-25 to 70 °C
Relative Humidity	10 to 90% non-condensing
