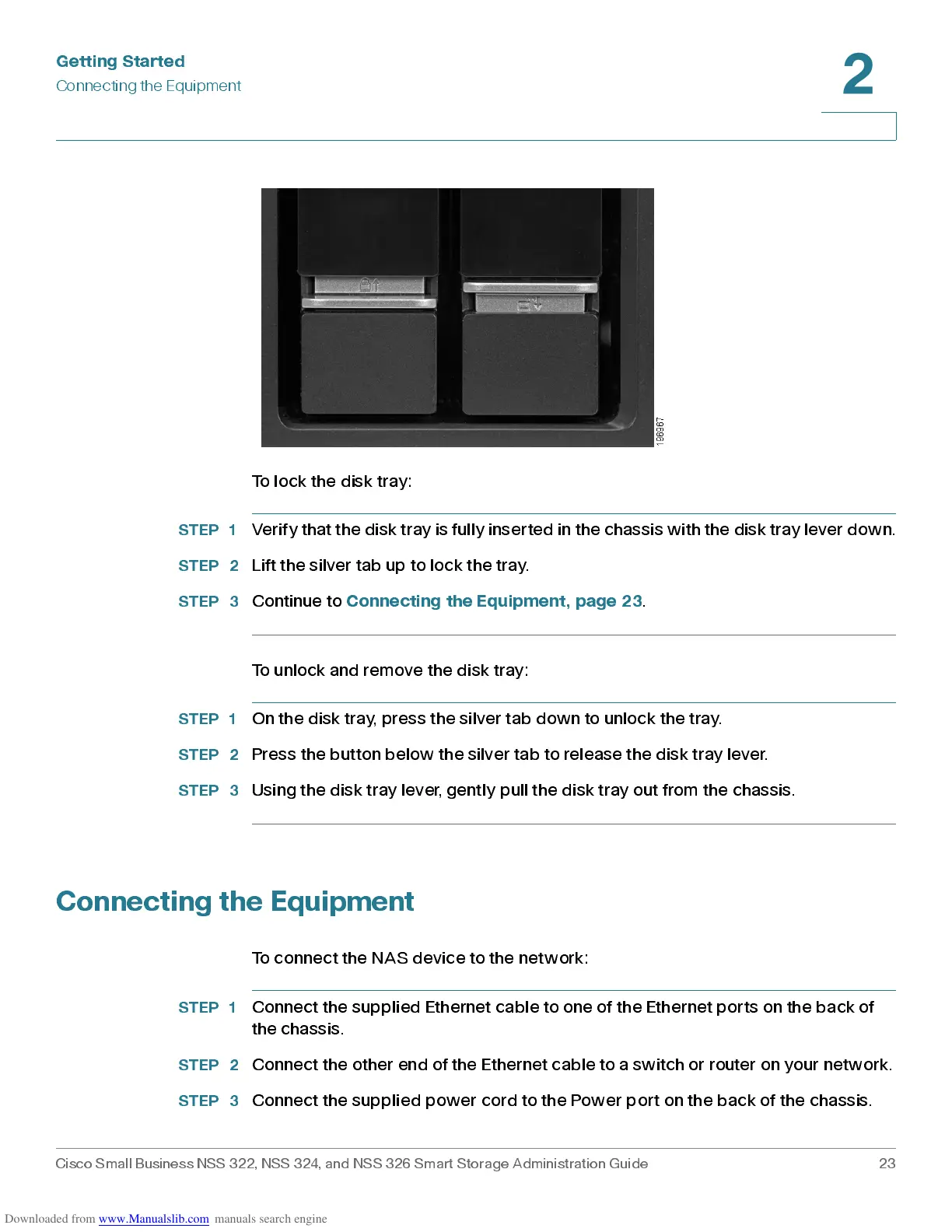

Get ting St ar t e d
Connecting the Equipment
Cisco Small Business NSS 322, NSS 324, and NSS 326 Smart Storage Administration Guide 23
2
To lock the disk tray:
STEP 1
V erify that the disk tray is fully insert ed in the chassis with the di sk tray lever down.
STEP 2
Lift the silver tab up to lock the tray.
STEP 3
Continue to
Conn e cti ng the Equ ipm ent, p age 23
.
To unlock and remove the disk tray:
STEP 1
On the disk tray, press the silver tab down to unlock the tray.
STEP 2
Press the button below the silver tab to release the disk tray lever.
STEP 3
Using the disk tray lever, gently pull the disk tray out from the chassis.
Connecting the Equipment
To connect the NAS device to the network:
STEP 1
Conne ct the supplied Ethernet ca ble to one of th e Ethern et por ts on the ba ck of
the chassis.
STEP 2
Connect the other end of the Ethernet cable to a switch or router on your network.
STEP 3
Connect the supplied power cord to the Power port on the back of the chassis.
