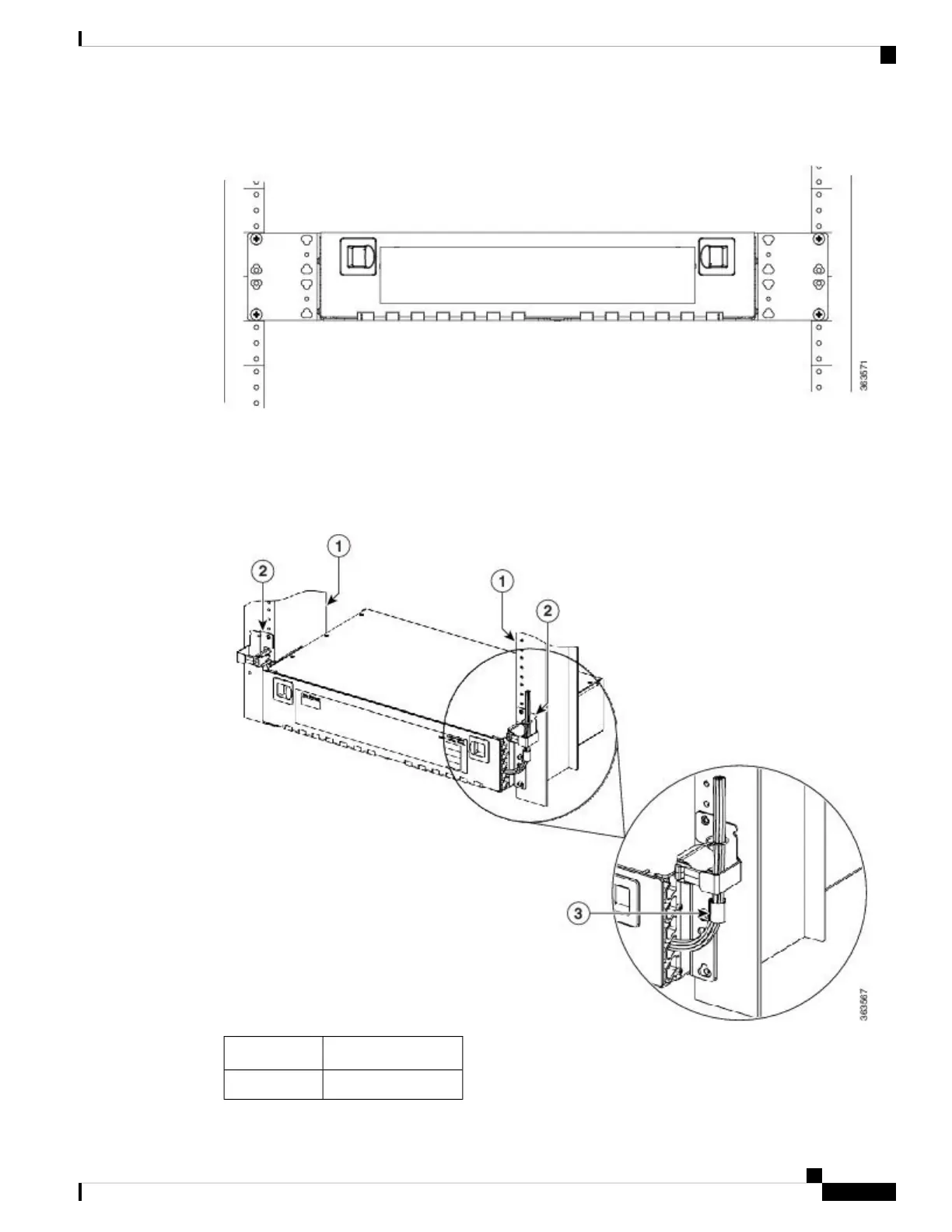

Figure 89: Mesh Panel Unit, Front View
Step 4 Install the right Vertical cable guide (VCG) using the washer and the screw provided with the installation kit.
The Vertical Cable Guide can be installed in top position (Figure A), if the fibers are connected from the top,
or they can be installed in bottom position (Figure B), if the fibers are connected from the bottom.
Figure 90: Figure A
SpecificationsSerial Number
Rack1
Cisco ONS 15454 Hardware Installation Guide
169
Installing the ONS 15454 M12 (ANSI and ETSI) Shelf
Install PP-Mesh on an ANSI 23" Configuration
