Step 13 Place the 23-inch mounting bracket flush in the front position (see Diagram 1 of Figure 124: Mounting the
Brackets on the ONS 15454 M2 Shelf for ANSI Rack Configuration, on page 201) or in the middle position
(see Diagram 3 of Figure 124: Mounting the Brackets on the ONS 15454 M2 Shelf for ANSI Rack
Configuration, on page 201) against the left side of the chassis.
Step 14 Align the screw holes on the 23-inch mounting bracket with the screw holes on the left side of the chassis.
Step 15 Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).

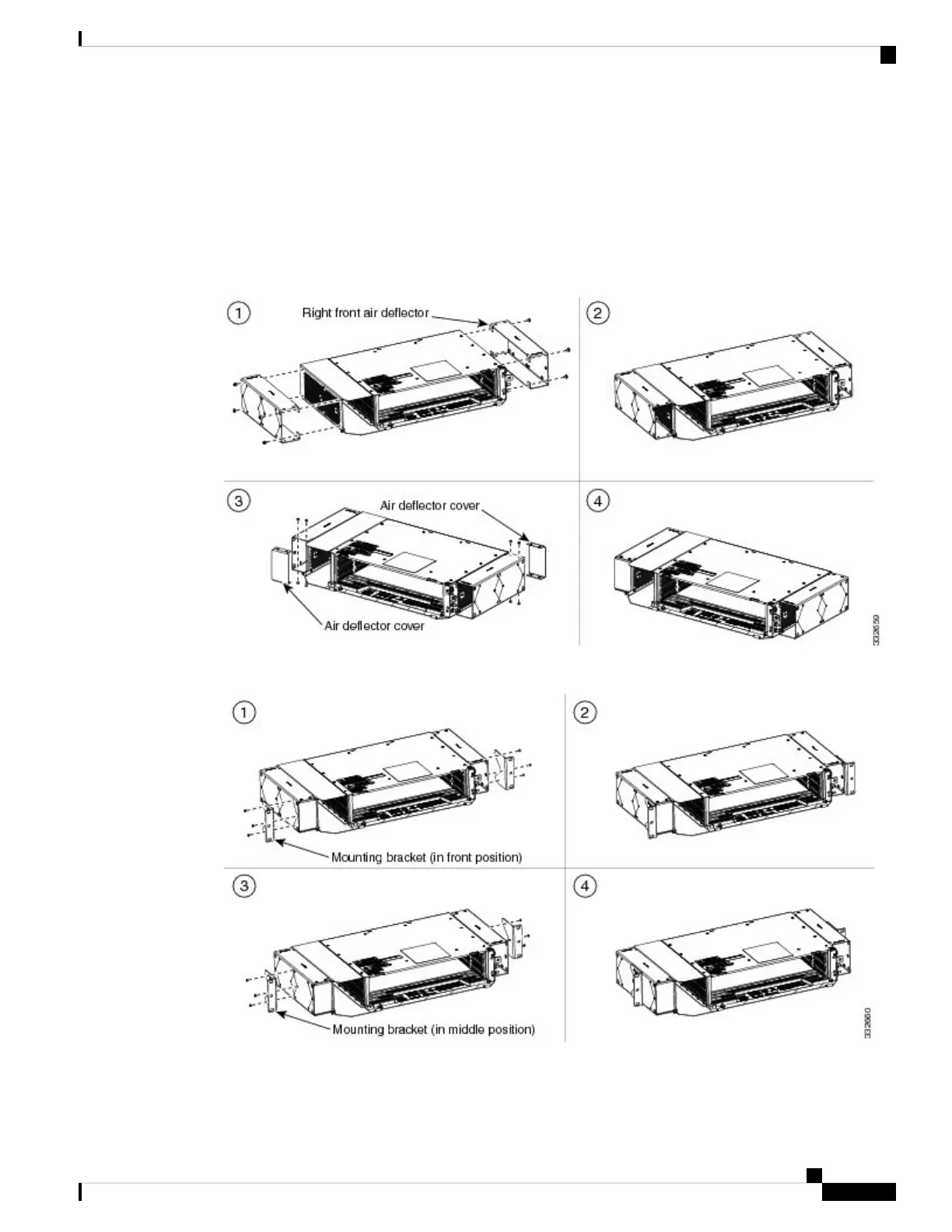

Figure 123: Mounting the Air Deflectors (Front-to-Back) on the ONS 15454 M2 Shelf for ANSI Rack Configuration
Figure 124: Mounting the Brackets on the ONS 15454 M2 Shelf for ANSI Rack Configuration
Cisco ONS 15454 Hardware Installation Guide
201
Installing the ONS 15454 M2 Shelf
DLP-G584 Mounting the Bracket with Air Deflectors (Front-to-Back) on the ONS 15454 M2 Shelf for ANSI Rack Configuration
