Removal and replacement of ADU modules
99-145912-A Chapter 8: Service & maintenance 8-37
Service & maintenance
3. Disconnect the 8-pin connector and the 6-pin connector (colored
wires) from the Elevation DDM.
4. Loosen the 4x4 mm Allen screws from the motor assembly.
5. Slide free in the key holes of the motor assembly and remove the
motor.
To insert a new Elevation motor and encoder follow the
instructions above in reverse order while observing the
following guidelines:
1. String the Elevation belt around the pulley of the motor assembly and
below the belt tensioner.

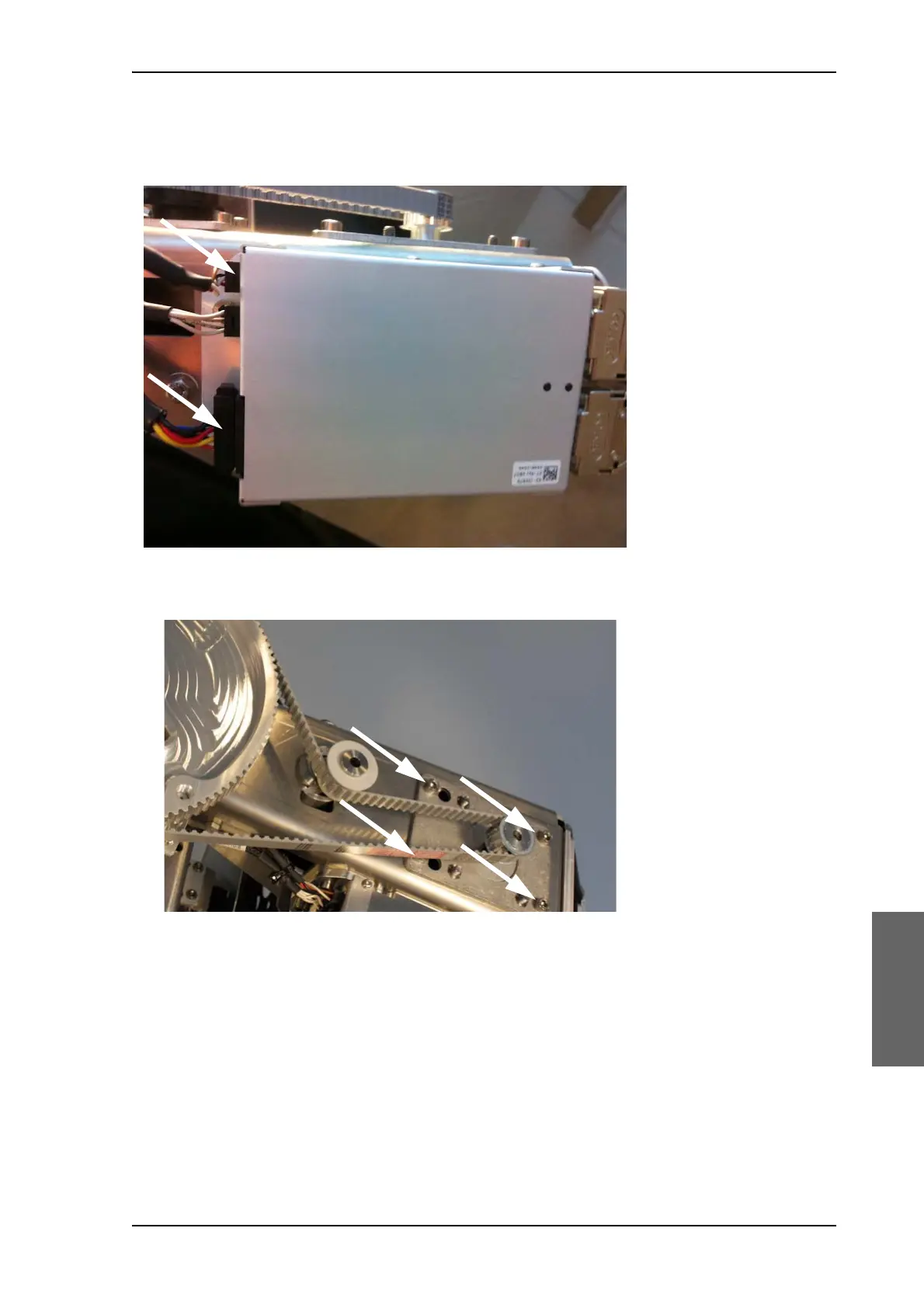

Figure 8-37: Elevation DDM, disconnect 2 connectors
Figure 8-38: Elevation motor and encoder, loosen the screws for the motor assembly
