SAILOR 100 GX system
2-2 Chapter 2: Introduction 99-145912-A
The following figure shows the SAILOR 100 GX system.
SAILOR 100 GX features
 Single 50 Ohm coax cable for the ADU.
 One-Touch Commissioning.
 Gyro-free operation.
 SNMP support.
 Secure connection, HTTPS and SSH.
 Remote access using SAILOR FleetBroadband over WAN.
 Remote or local simultaneous software update of ADU, ACU and
GMU via PC and Internet browser.
 Global RF configuration.
 Full remote control and troubleshooting with built-in test equipment
(BITE).
 ACU with 4 x LAN, NMEA 0183, NMEA 2000, RS-232 and RS-422.
 ACU is DC powered. Start up voltage: 22 VDC guaranteed, operating
range: 20 – 32 VDC.
 GMU with 8+2 LAN, RS-232 and RS-422 and I/O connector.
 No scheduled maintenance.

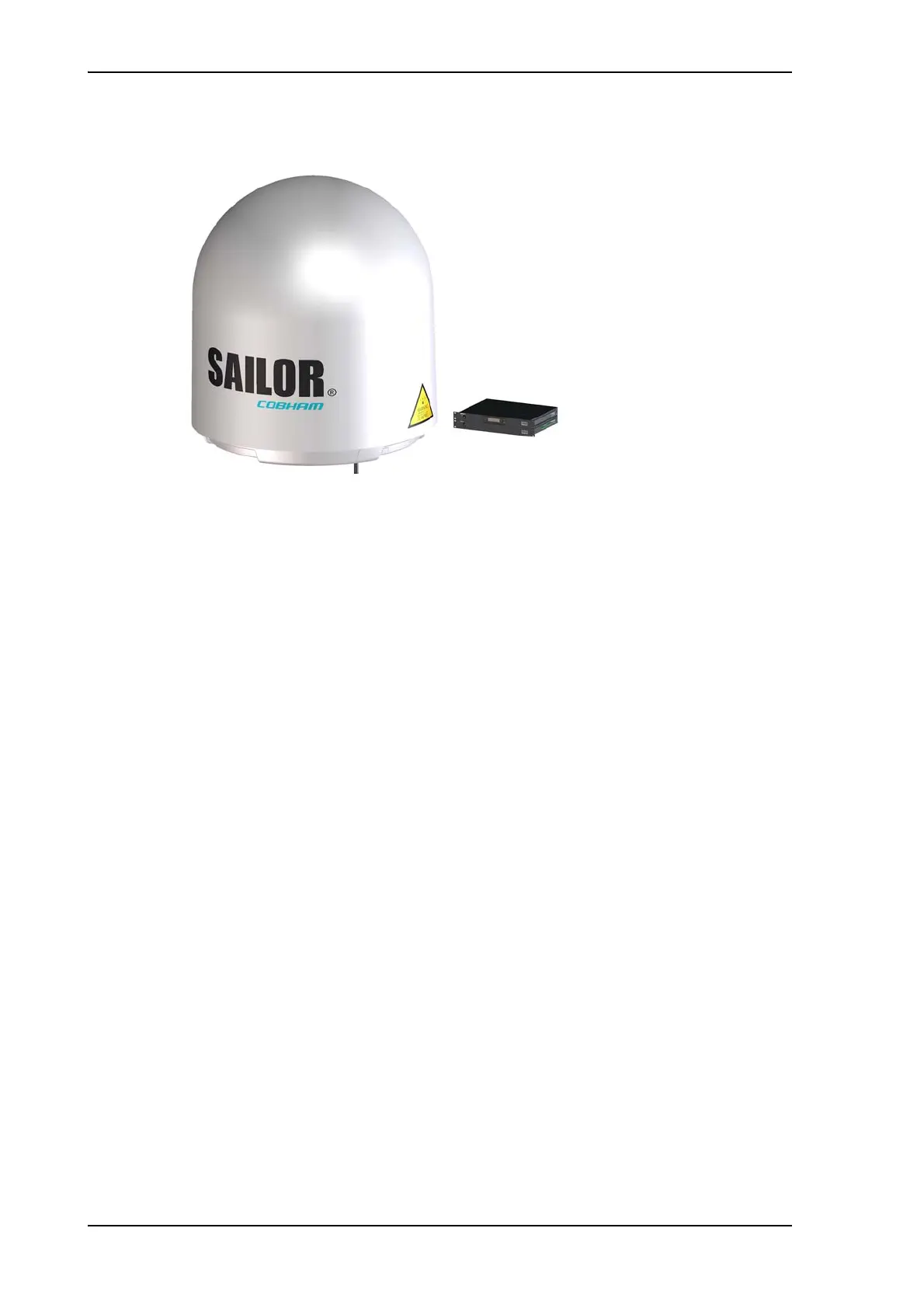

Figure 2-2: ADU, ACU and GMU
Above Deck
Unit (ADU)
Antenna Control Unit (ACU)
GX Modem Unit (GMU)
