COBHAM SAILOR 100 GX User Manual

Removal and replacement of ADU modules
99-145912-A Chapter 8: Service & maintenance 8-53
Service & maintenance
13.Remove the Azimuth Drive Belt.
To insert a new Azimuth Drive Belt follow the instructions above in
reverse order while observing the following guidelines:
Follow the instructions in To replace the Azimuth Motor on page 8-38.

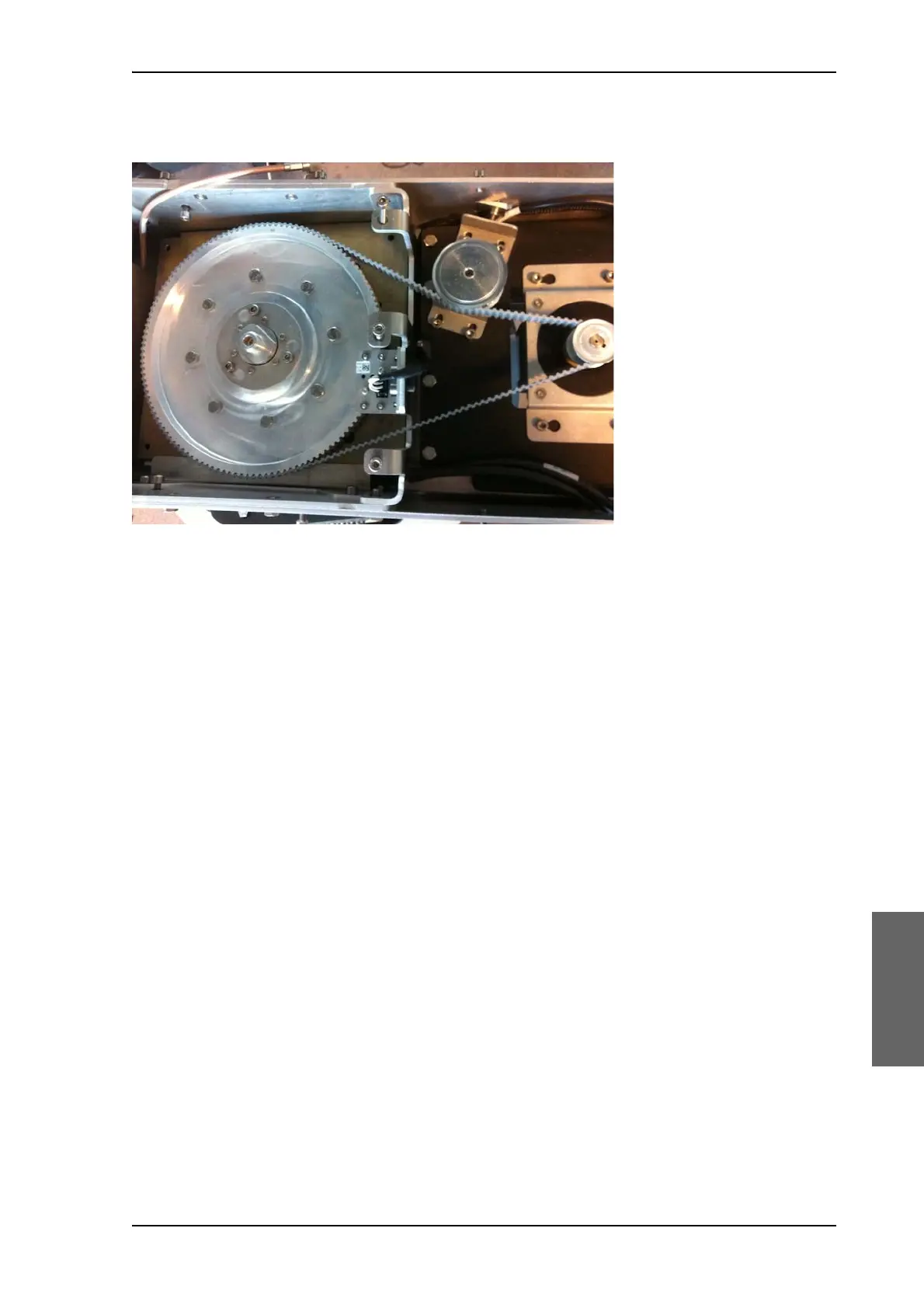

Figure 8-66: Azimuth Drive Belt
