SAILOR 100 GX system
2-4 Chapter 2: Introduction 99-145912-A
Modules in the SAILOR 100 GX ADU
1. GPS module.
2. VSAT Interface Module (VIM2).
3. Pedestal Control Module (PCM).
4. Service switch.
In switch-off position the DC Motor Driver modules and the BUC are
turned off for safe conditions during service and repair. The switch
must be set to on for normal operation.
5. Motor Driver Module for cross elevation (DDM/SMD).
6. Cross elevation motor and encoder.

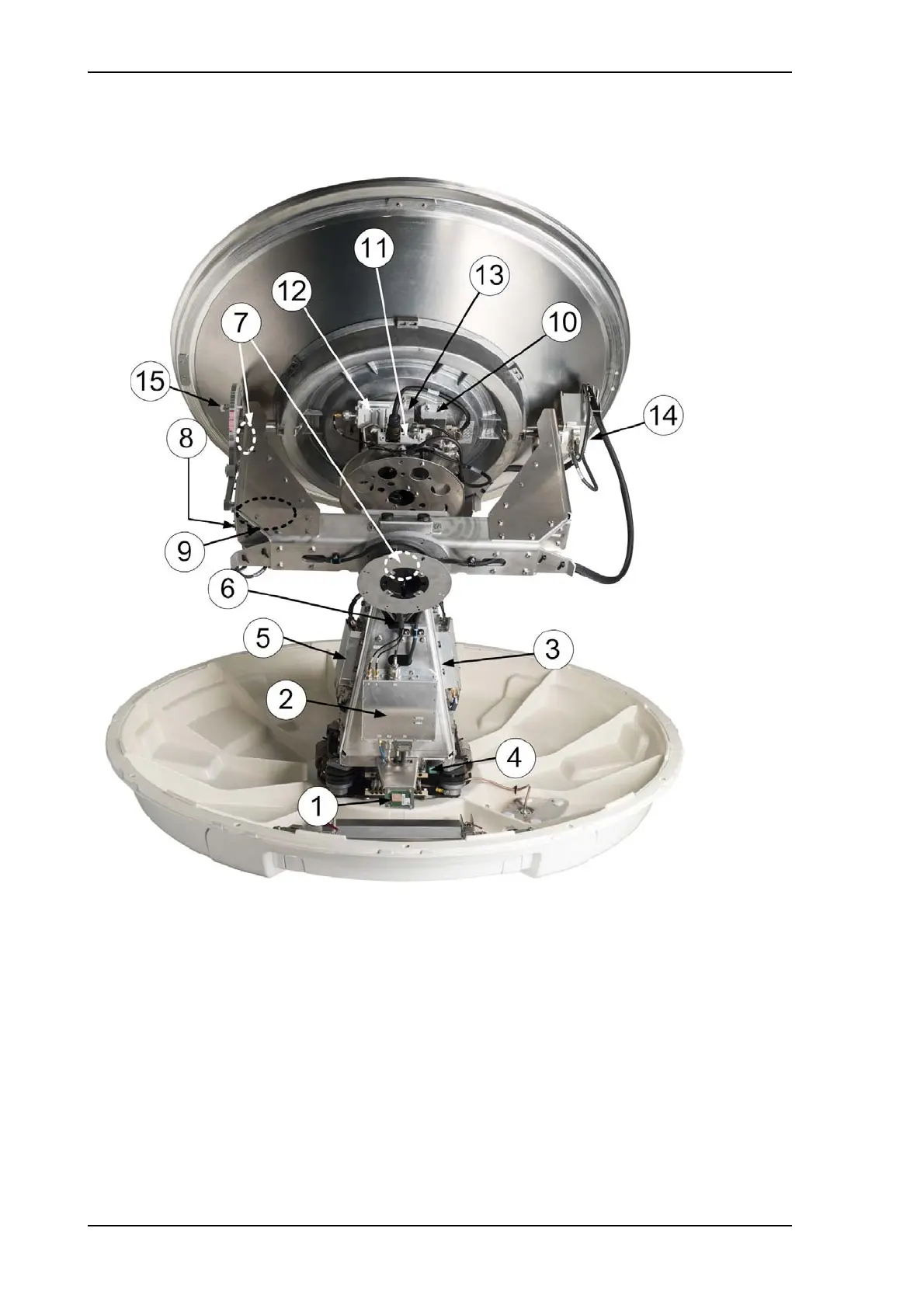

Figure 2-4: Above Deck Unit modules 1/2
