COBHAM SAILOR 100 GX User Manual

Inspection of mechanical components
8-70 Chapter 8: Service & maintenance 99-145912-A

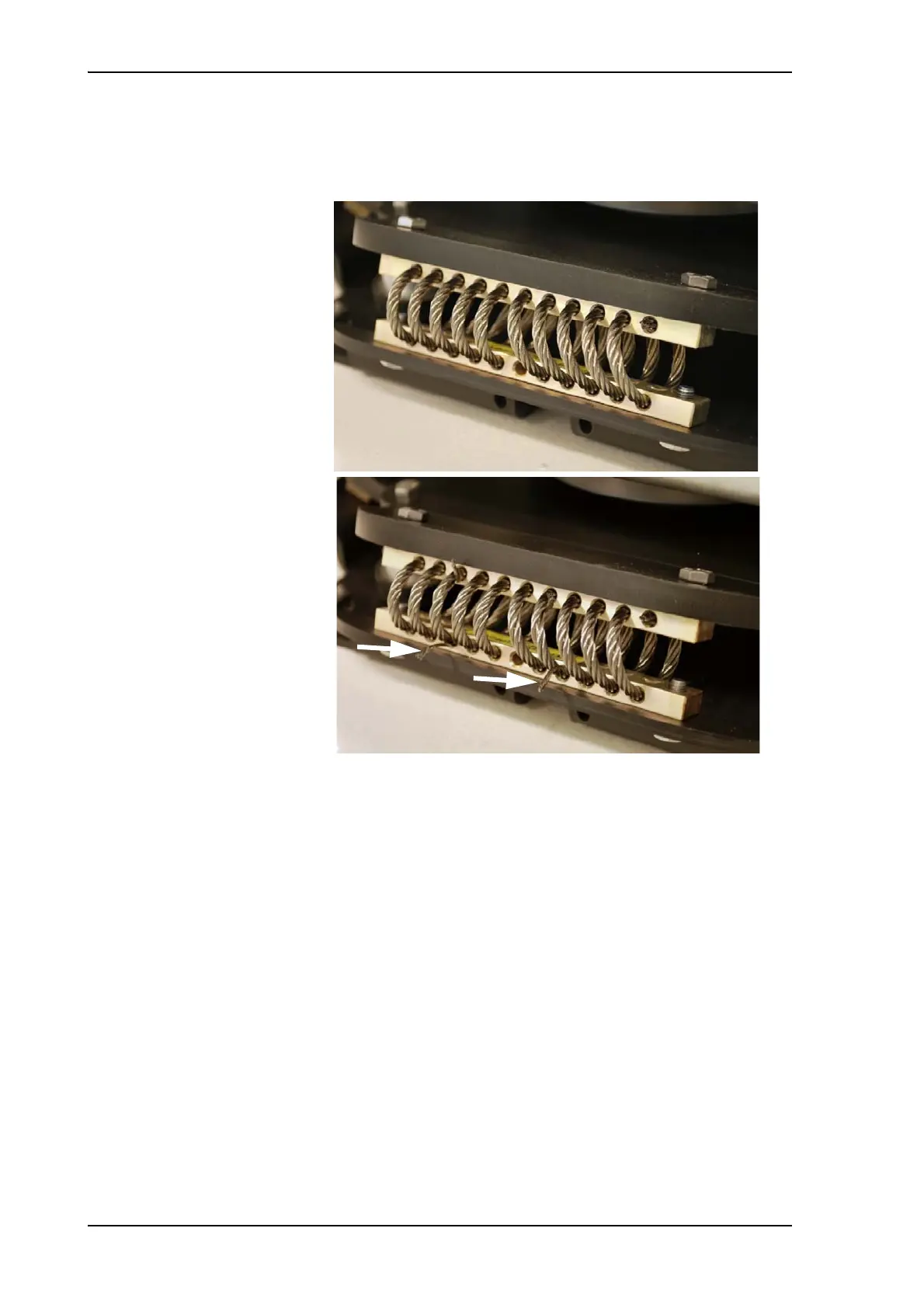

The following figure shows a healthy wire-rope isolator and a critically
worn-down isolator. Note the two broken wires on the second picture.
They indicate that this wire-rope isolator must be replaced.
Another sign of excessive wear is illustrated in the following figure. It
shows a healthy wire-rope isolator and a critically worn-down isolator.
Figure 8-92: Inspection of a wire-rope isolator 1/2
OK
NOT OK
