Installation of the ADU
3-20 Chapter 3: Installation 99-145912-A
page A-9 for a more detailed drawing how to connect the N-
connector on the ADU.
11. Ensure that the connector assembly is properly protected against
seawater and corrosion. As a minimum, wrap it with self-
amalgamating rubber.
12. Put the protection plate in place and fasten the 4 bolts (picture 5).
13. Fasten the nut.
14. Where the cables are exposed to mechanical wear – on deck,
through bulkheads, etc. – protect the cables with steel pipes.
Otherwise, follow standard procedures for cabling in ship
installations.

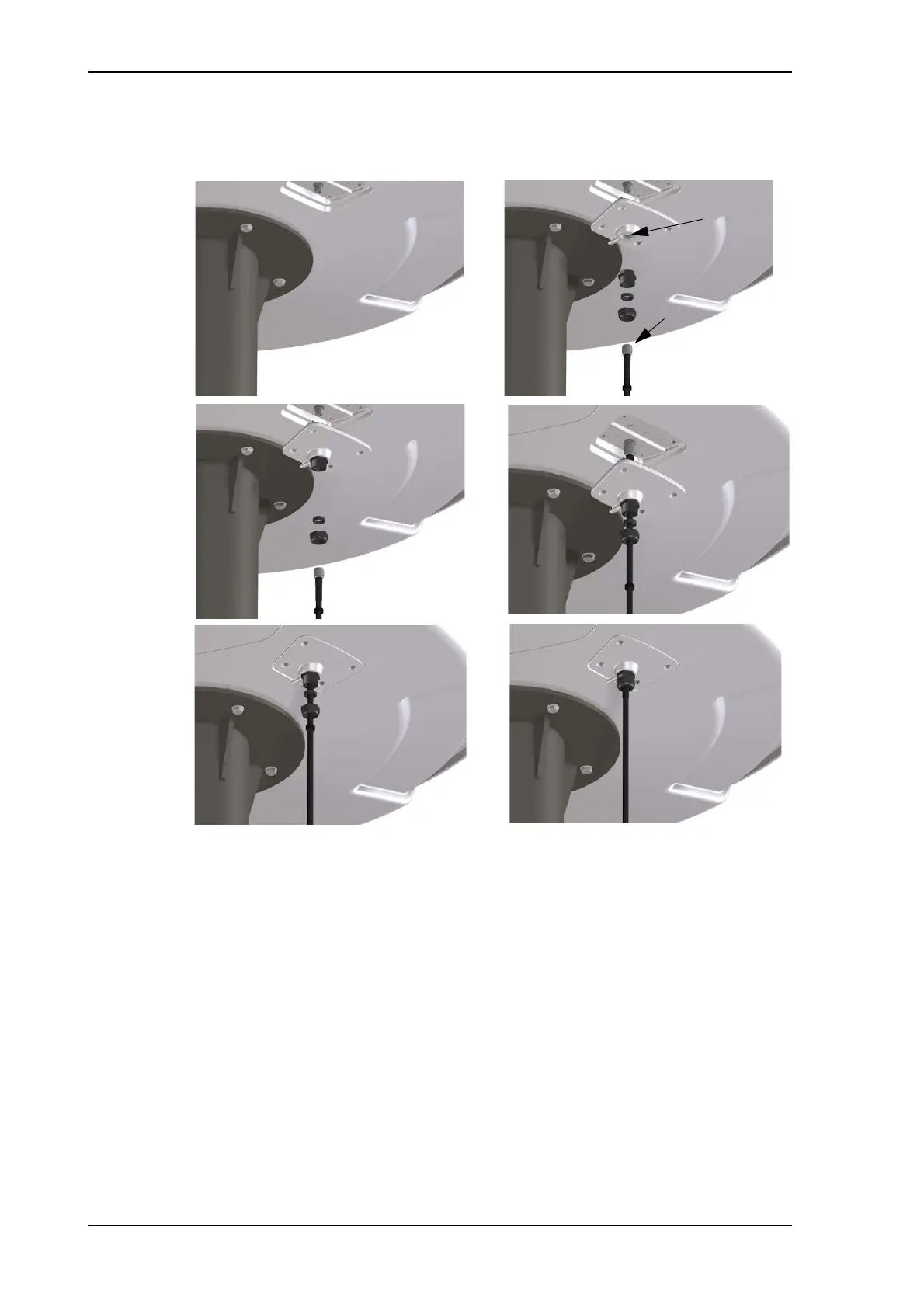

Figure 3-18: Connecting the ADU cable
Protection plate
N connector
1
2
3
4
5
6
