Sensor Type Sensitivity Measurement Types
Accelerometer
mV/g 0.1-10 000
Acceleration
Velocity
Displacement
Velocity Sensor
mV/in/s 0.1-10 000
mV/mm/s 0.34-90.55
Velocity
Displacement
Displacement
Sensor
(or prox probe)
mV/mil 0.1-10 000
mV/µm 0.34-90.55
Displacement
For information on how to define a sensor see Defining and Editing
Sensors (page 101).
Connecting Sensors to the Instrument
Sensors are connected to the instrument via BNC and, in the case of
the vbBalancer+ instrument, seven-pin LEMO socket. Use the
provided triple BNC adapter (LEMO breakout cable) to connect
channels 2 through 4 if using these channels on a vbBalancer+
instrument.

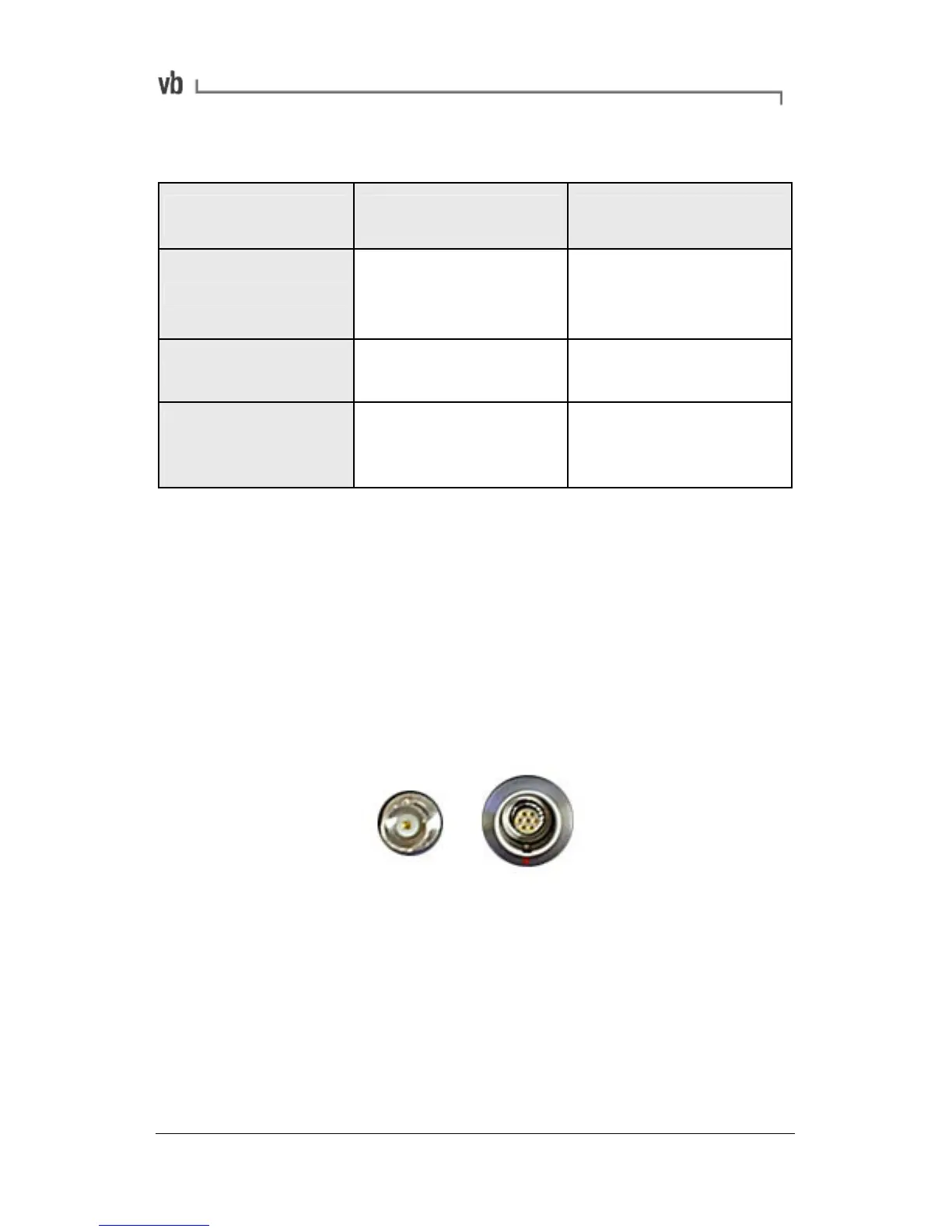

BNC (left), seven-pin LEMO (right)
Note: The triple BNC adapter's three BNC inputs are numbered to
indicate channel.
BNC Attach the sensor cable plug to the BNC connector(s) by
inserting and gently turning clockwise. Remove by turning in an
anti-clockwise direction then pulling up
