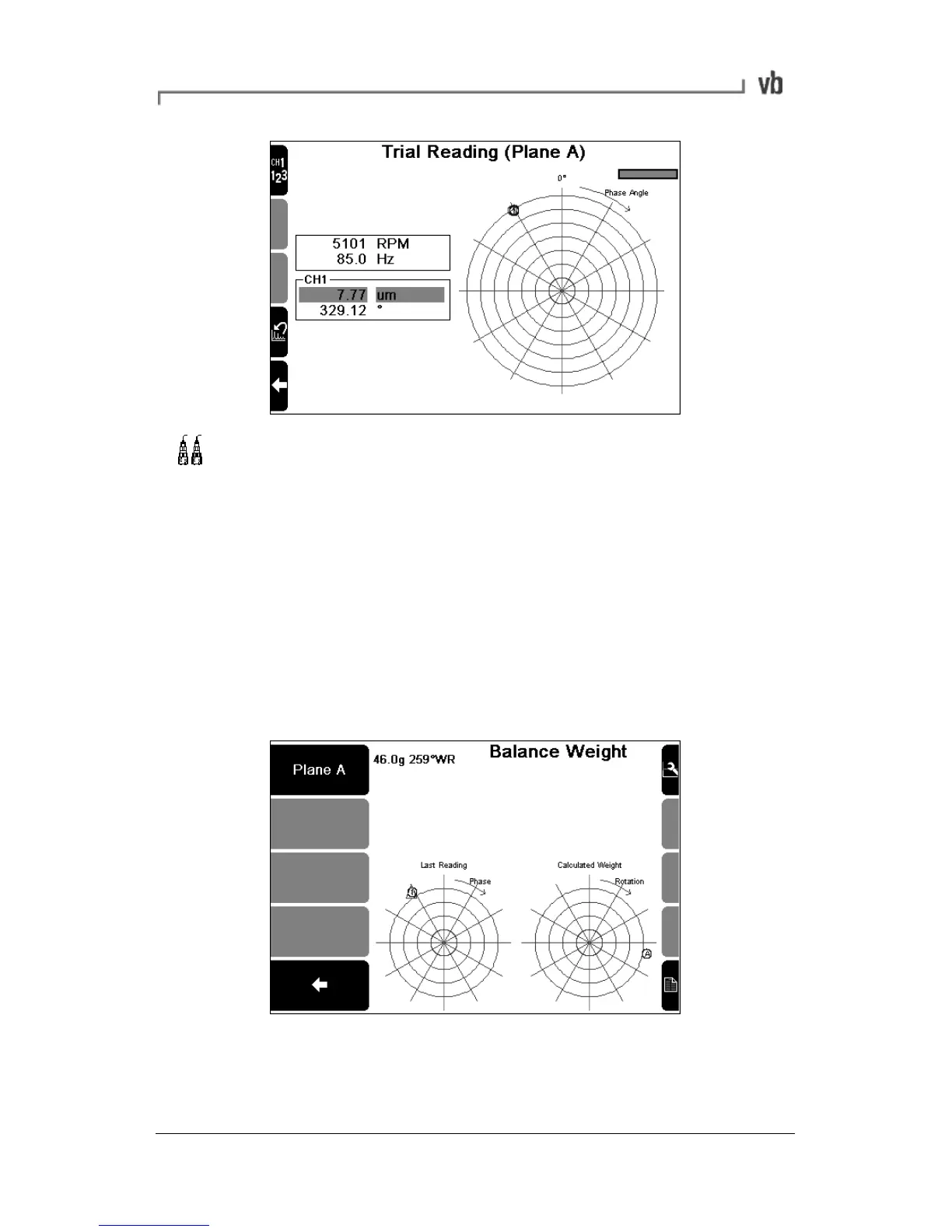

Perform the same procedure for Plane B (attach a trial
weight, enter its position and specify whether weight is being
added or drilled out). If you are removing trial weights the
Plane A trial weight must be removed before performing the
Plane B trial reading.
Step 4. Balance the Rotor
With Initial and Trial Readings completed the Balance Weight Menu
will now display. The instrument displays the weight required to
correct the initial imbalance and the angular position at which it must
be attached.
• Stop the machine. If you are removing trial weights as you
go, do this now before attaching your correction weight.
