ComNav P4 Installation and Operation
Advanced Operations
Document PN 29010100 V1r0 - 156 -
Work Menu
The Work menu has all of the adjustable parameters that are involved with WORK mode.
To
access the Work menu, double-press the WORK button.

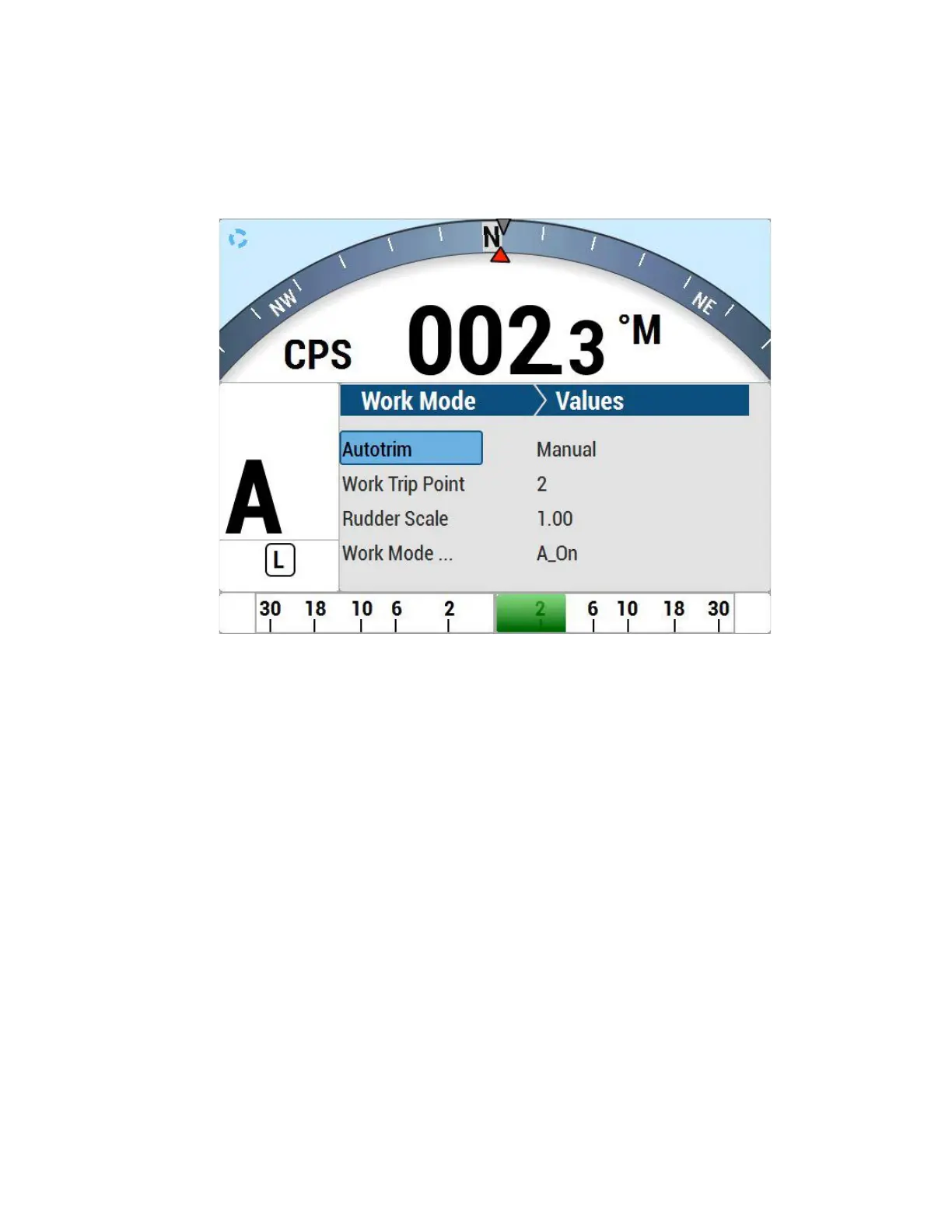

Figure 73 – WORK Mode Menu
Rudder Bias
This menu line only appears when WORK mode is active. It shows the current rudder
bias,
which can be adjusted if desired.
Autotrim
The autopilot’s WORK mode can be configured to use manual or automatic rudder bias
trim
when in WORK mode (the default is to use automatic bias).
Manual rudder bias is fixed by the position of the rudder when the autopilot first enters
WORK mode, but can be adjusted by the user if desired.
Automatic rudder bias is initially set to the position of the rudder when the autopilot first
enters WORK mode, but is automatically adjusted on a continual basis thereafter to
ensure
that the vessel remains on-course.
Work Trip Pt. - Work Trip Point
This is the speed below which WORK mode can be engaged, and above which WORK
mode
will be disengaged automatically. The value can be 1 to 10, and these units refer to
the
information the
Speed Source (see the Auto menu) is providing.
