ComNav P4 Installation and Operation System Overview
Document PN 29010100 V1r0 - 29 -
P4 Control Head
PN 20140001 (P4 Second Station Kit, Colour Head)
PN 30140001 (P4 Colour Head only)
The P4 Control Head (Figure 4) connects to a NMEA 2000 network or standalone with a
supplied T-connector to the Signal Processor Unit (SPU), via a supplied 6m NMEA 2000
standard light cables.
P4 Control Head incorporates a state-of-the-art, high visibility/high resolution QVGA TFT
colour LCD display.

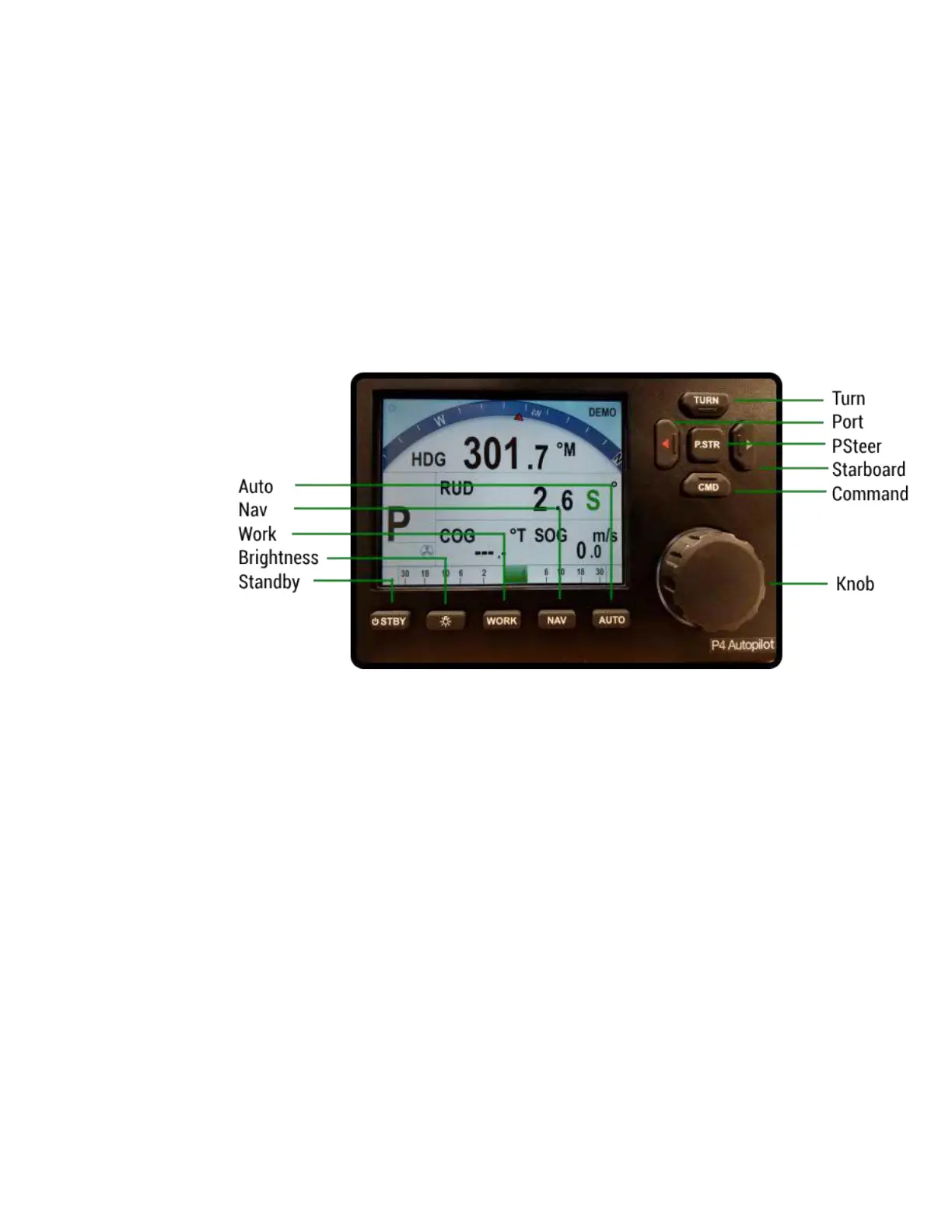

Figure 4 – P4 Control Head
The Control Head, when shipped as part of a complete P4 system, is a “core” module, with
accessories for mounting option: bracket for bracket mounting. All required hardware is
included, except for two fasteners needed to fasten the bracket to a mounting surface.
