Note that the plug screws must be turned counter-clockwise several turns (using a small slotted
screwdriver), to open up the plug’s wire clamp, before a wire is inserted into that clamp; the
screw must then be turned clockwise until the wire is tightly held in the clamp.
All connectors and pins are labelled, as shown in Figure 22.

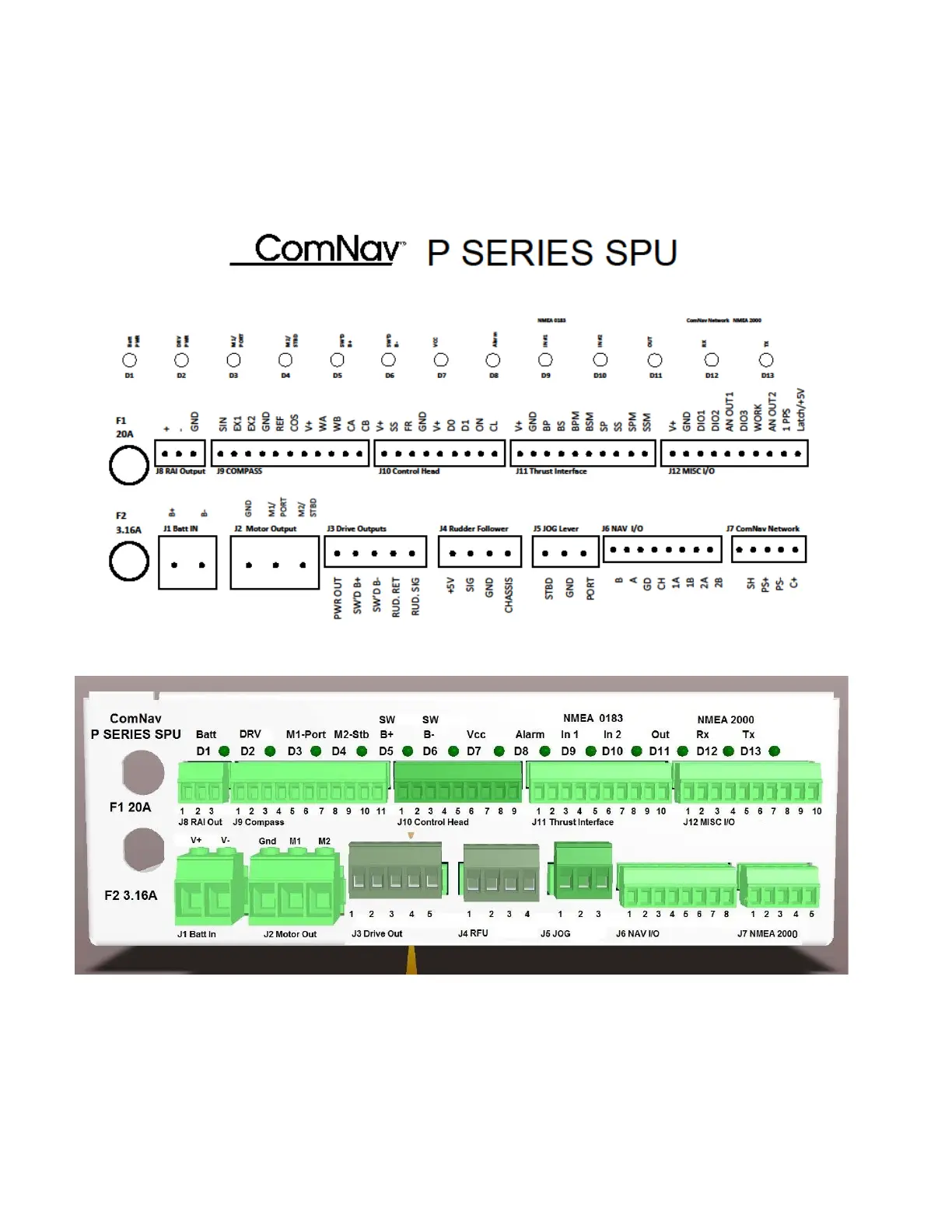

Figure 22 – SPU Connector Wiring Signal names & Label
