ComNav P4 Installation and Operation System Overview
Document PN 29010100 V1r0 - 36 -

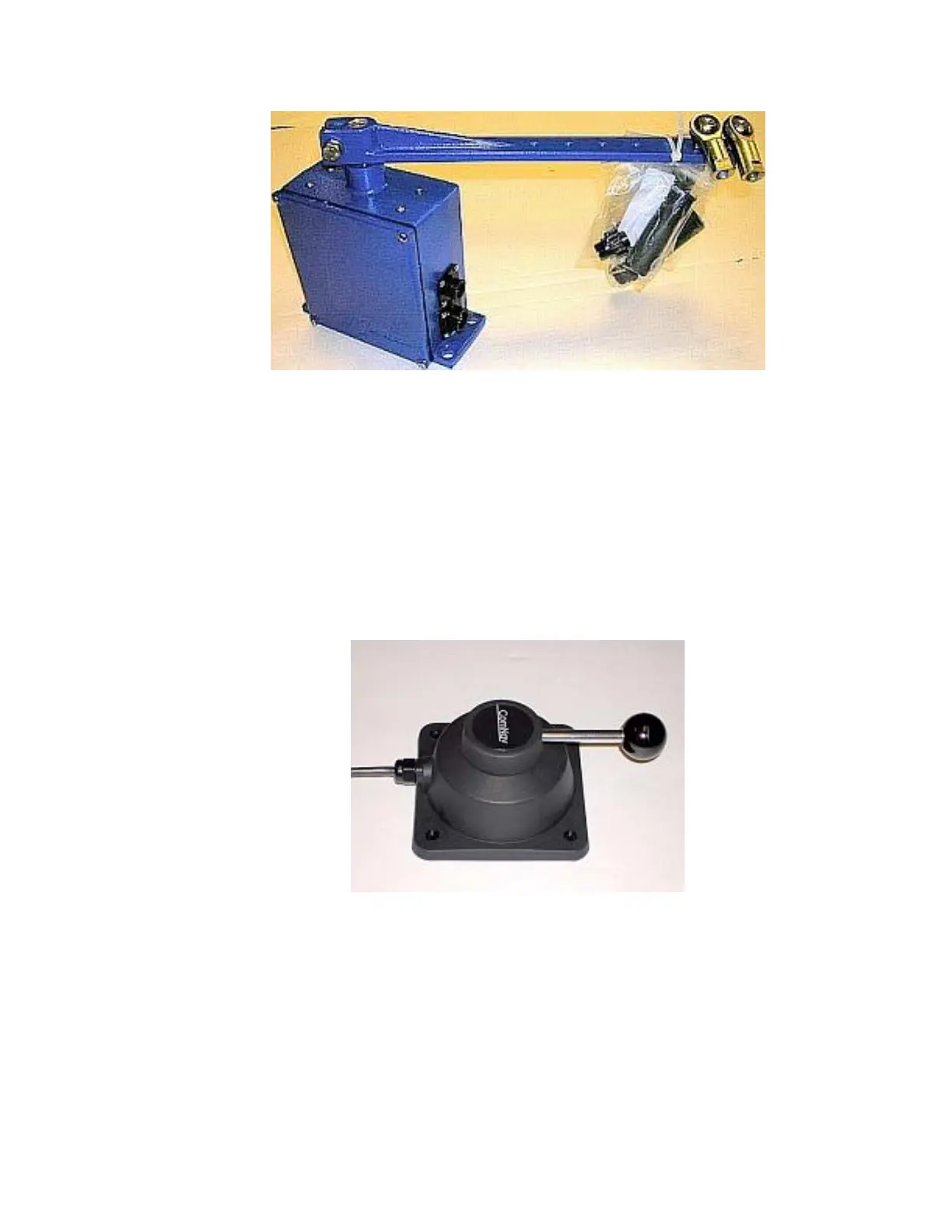

Figure 13 – Heavy Duty Rotary Rudder Follower
Other Controls, Indicators and Sensors
Jog Levers
PN 20310002 (1 set of switches)
PN 20310003 (2 sets of switches)
ComNav’s Non-Follow-Up (NFU) Jog Lever is a permanently mounted, watertight, electrical
switch specifically designed for marine use. The spring-centered lever is moved port or
starboard as desired to provide non-follow-up (time dependent) electrical control of the
vessel’s steering system.
Figure 14 – Jog Lever
Rudder Angle Indicator (RAI) – 3”
PN 20360023
The ComNav Rudder Angle Indicator (RAI) is a backlit 3” (76 mm) diameter gauge that
displays the actual position of the vessel’s rudder. The RAI is flush mounted, encased in high
impact resistant polycarbonate plastic with a water resistant front face, and requires a lighting
voltage supply of 12, 24 or 32 VDC.
An optional Bezel Kit (Part # 30360004), Wheelhouse Case (PN 20360017) and Watertight
Case (PN 20360016) are available.
