MEP Performance Monitor Configuration

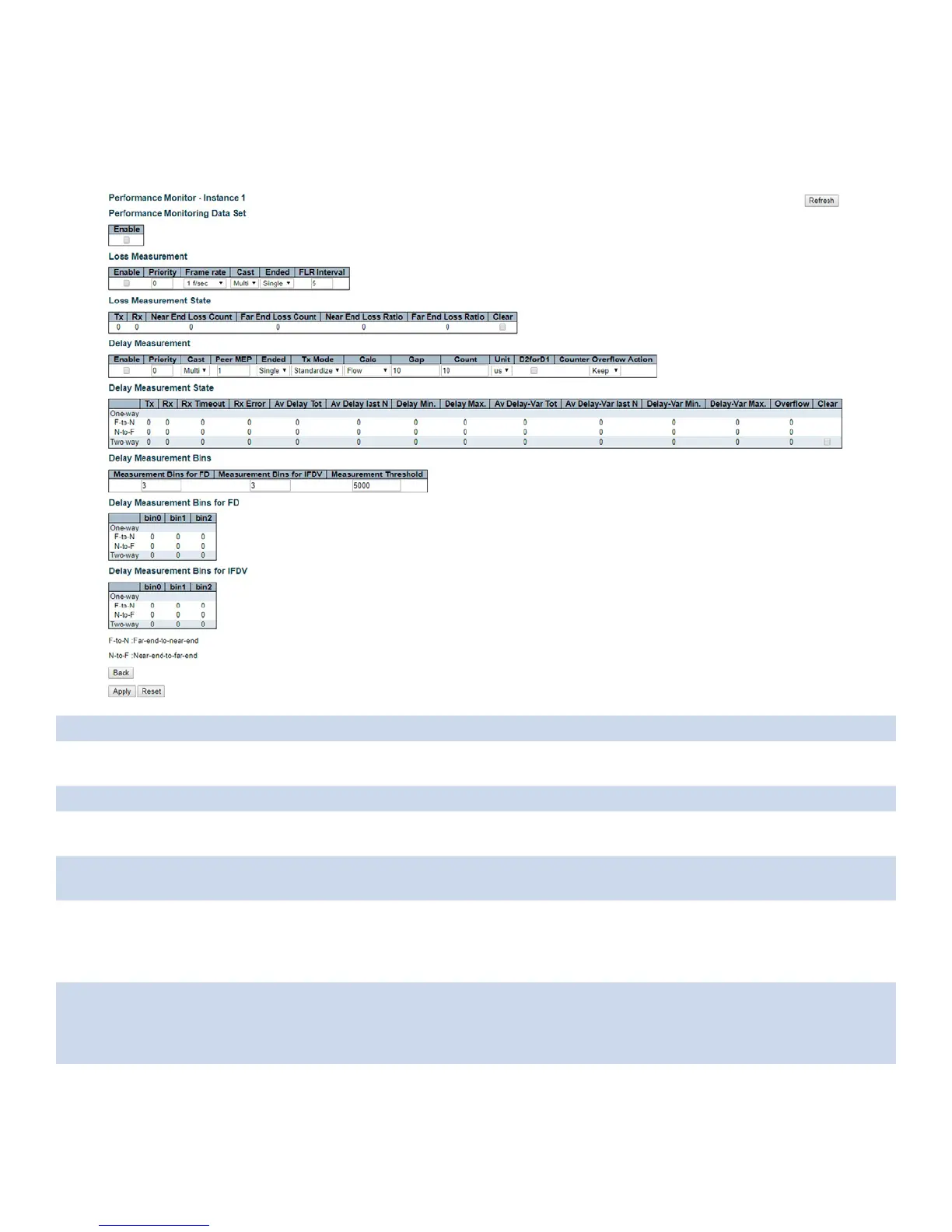

This page allows the user to inspect and configure the performance monitor of the current MEP
Instance.
Performance Monitoring Data Set
Enable When enabled this MEP instance will contribute to the 'PM Data Set' gathered by the PM
Session.
Loss Measurement
Enable Loss Measurement based on transmitting/receiving CCM or LMM/LMR PDU can be
enabled/disabled - see 'Ended'. This is only valid with one Peer MEP configured.
Priority The priority to be inserted as PCP bits in TAG (if any). In case of enable of Continuity Check
and Loss Measurement both implemented on SW based CCM, 'Priority' has to be the same.
Frame rate Selecting the frame rate of CCM/LMM PDU. This is the inverse of transmission period
as described in Y.1731. Selecting 300f/sec or 100f/sec is not valid. In case of enable of
Continuity Check and Loss Measurement both implemented on SW based CCM, 'Frame
Rate' has to be the same.
Cast Selection of CCM or LMM PDU transmitted unicast or multicast. The unicast MAC will be
taken from the 'Unicast Peer MAC' configuration. In case of enable of Continuity Check and
dual ended Loss Measurement both implemented on SW based CCM, 'Cast' has to be the
same.
Ended Single: Single ended Loss Measurement implemented on LMM/LMR.
Dual: Dual ended Loss Measurement implemented on SW based CCM.
