QoS Ingress Port Classification Configuration

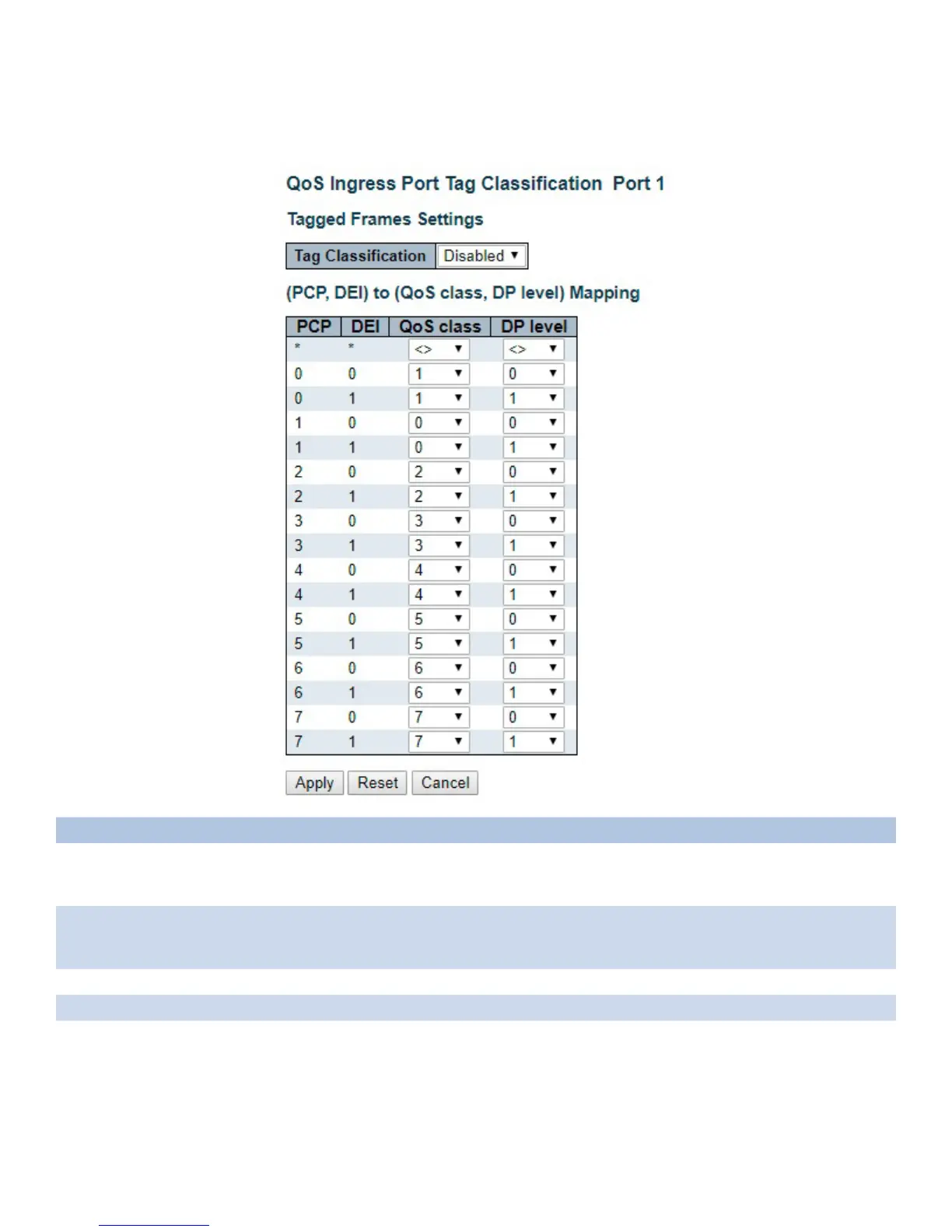

The classification mode for tagged frames are configured on this page.
Object Description
Tag Classification Controls the classification mode for tagged frames on this port.
Disabled: Use default QoS class and Drop Precedence Level for tagged frames.
Enabled: Use mapped versions of PCP and DEI for tagged frames.
(PCP, DEI) to (QoS
class, DP level)
Mapping
Controls the mapping of the classified (PCP, DEI) to (QoS class, DP level) values when Tag
Classification is set to Enabled.
Apply Click to apply changes.
Reset Click to undo any changes made locally and revert to previously saved values.
Cancel Click to undo any changes made locally and return to the previous page.
