DSCP Translation

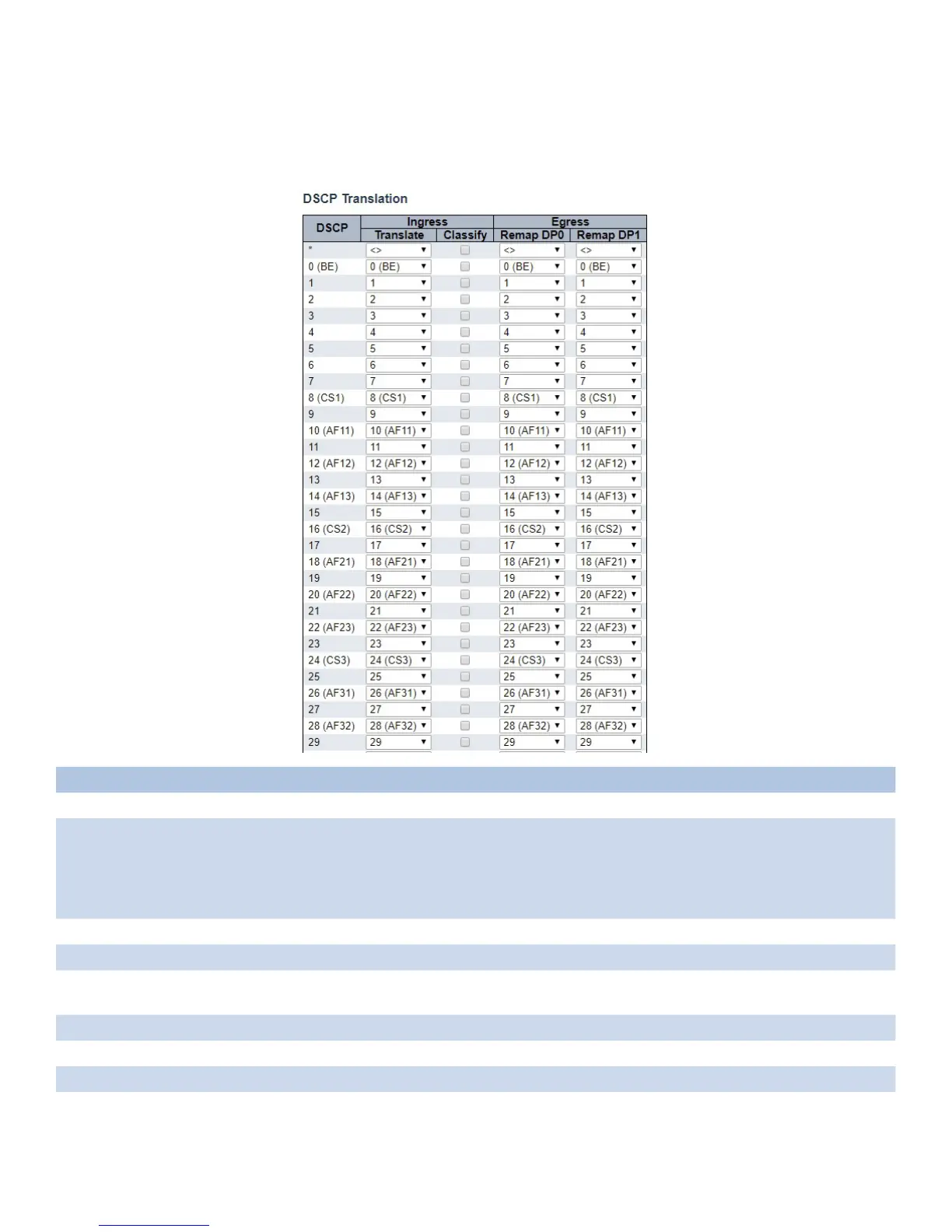

This page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP
translation can be done in Ingress or Egress.
Object Description
DSCP Maximum number of supported DSCP values are 64 and valid DSCP value ranges from 0 to 63.
Ingress Ingress side DSCP can be first translated to new DSCP before using the DSCP for QoS class and DPL
map.
There are two configuration parameters for DSCP Translation :
Translate
Classify
Translation DSCP at Ingress side can be translated to any of (0-63) DSCP values.
Classify Click to enable Classification at Ingress side.
Egress There are the following configurable parameters for Egress side - Remap DP0 Controls the remapping
for frames with DP level 0. Remap DP1 Controls the remapping for frames with DP level 1.
Remap DP0 Select the DSCP value from select menu to which you want to remap. DSCP value ranges from 0 to 63.
Remap DP1 Select the DSCP value from select menu to which you want to remap. DSCP value ranges from 0 to 63.
Apply Click to apply changes.
Reset Click to revert to previous values.
