INS_CNGE3FE8MS[POE][HO] Rev. 11.7.17 PAGE 165
INSTRUCTION MANUAL CNGE3FE8MS[POE][HO]
TECH SUPPORT: 1.888.678.9427

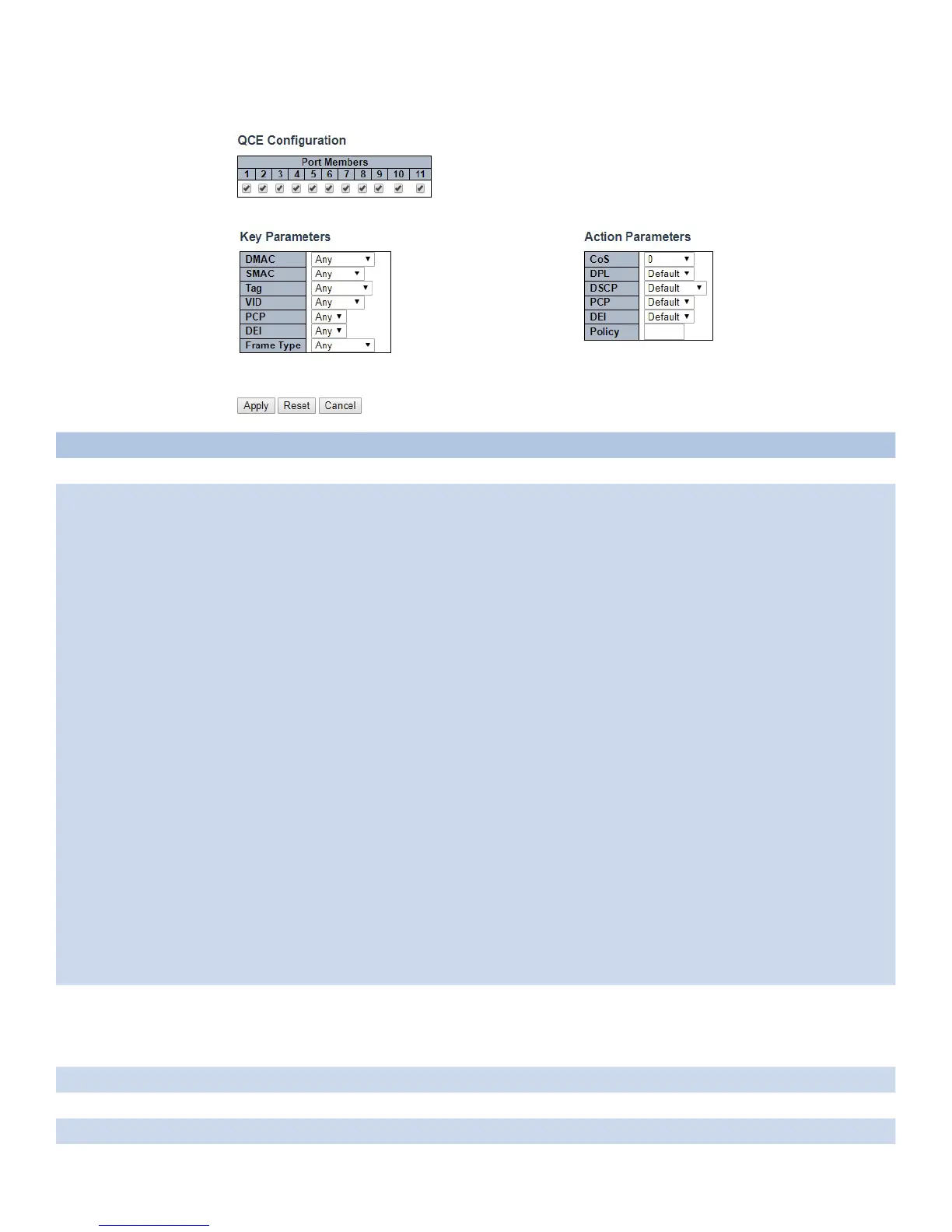

The QCE page includes the following fields:
Object Description
Port Members Check the checkbox button to include the port in the QCL entry. By default all ports are included.
Key Paramente
Key configuration is described as below:
DMAC Destination MAC address: Possible values are ‘Unicast’, ‘Multicast’, ‘Broadcast’ or ‘Any’.
SMAC Source MAC address: xx-xx-xx-xx-xx-xx or ‘Any’. If a port is configured to match on DMAC/DIP, this field is the
Destination MAC address.
Tag - Value of Tag field can be ‘Untagged’, ‘Tagged’ or ‘Any’.
VID - Valid value of VLAN ID can be any value in the range 1-4095 or ‘Any’; user can enter either a specific value or a
range of VIDs.
PCP - Valid value PCP are specific (0, 1, 2, 3, 4, 5, 6, 7) or range (0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or ‘Any’.
DEI - Valid value of DEI can be ‘0’, ‘1’ or ‘Any’.
Frame Type - Frame Type can have any of the following values:
Any: Allow all types of frames.
EtherType: Ether Type Valid Ether Type can be 0x600-0xFFFF excluding 0x800(IPv4) and 0x86DD(IPv6) or ‘Any’.
LLC: SSAP Address - Valid SSAP (Source Service Access Point) can vary from 0x00 to 0xFF or ‘Any’.
DSAP Address - Valid DSAP (Destination Service Access Point) can vary from 0x00 to 0xFF or ‘Any’.
Control - Valid Control field can vary from 0x00 to 0xFF or ‘Any’.
SNAP: PID - Valid PID (a.k.a Ether Type) can be 0x0000-0xFFFF or ‘Any’.
IPv4: Protocol - IP protocol number: (0-255, ‘TCP’ or ‘UDP’) or ‘Any’.
Source IP Specific Source IP address in value/mask format or ‘Any’. IP and Mask are in the format x.y.z.w where x, y, z, and
w are decimal numbers between 0 and 255.
When Mask is converted to a 32-bit binary string and read from left to right, all bits following the first zero must also be
zero. If a port is configured to match on DMAC/DIP, this field is the Destination IP address.
IP Fragment IPv4 frame fragmented option: ‘Yes’, ‘No’ or ‘Any’.
DSCP Diffserv Code Point value (DSCP): It can be a specific value, range of values or ‘Any’. DSCP values are in the range
0-63 including BE, CS1-CS7, EF or AF11-AF43.
Sport Source TCP/UDP port:(0-65535) or ‘Any’, specific or port range applicable for IP protocol UDP/TCP.
Dport Destination TCP/UDP port:(0-65535) or ‘Any’, specific or port range applicable for IP protocol UDP/TCP.
IPv6: Protocol IP protocol number: (0-255, ‘TCP’ or ‘UDP’) or ‘Any’.
Source IP 32 LS bits of IPv6 source address in value/mask format or ‘Any’. If a port is configured to match on DMAC/DIP,
this field is the Destination IP address.
DSCP Diffserv Code Point value (DSCP): It can be a specific value, range of values or ‘Any’. DSCP values are in the range
0-63 including BE, CS1-CS7, EF or AF11-AF43.
Sport Source TCP/UDP port :( 0-65535) or ‘Any’, specific or port range applicable for IP protocol UDP/TCP.
Dport Destination TCP/UDP port :( 0-65535) or ‘Any’, specific or port range applicable for IP protocol UDP/TCP.
Action ParametersCoS Class of Service: (0-7) or ‘Default’.
DP Drop Precedence Level: (0-1) or ‘Default’.
DSCP DSCP: (0-63, BE, CS1-CS7, EF or AF11-AF43) or ‘Default’.
‘Default’ means that the default classified value is not modified by this QCE.
Apply Click to apply changes.
Reset Click to revert to previous values.
Cancel Click to return to previous values without saving.
