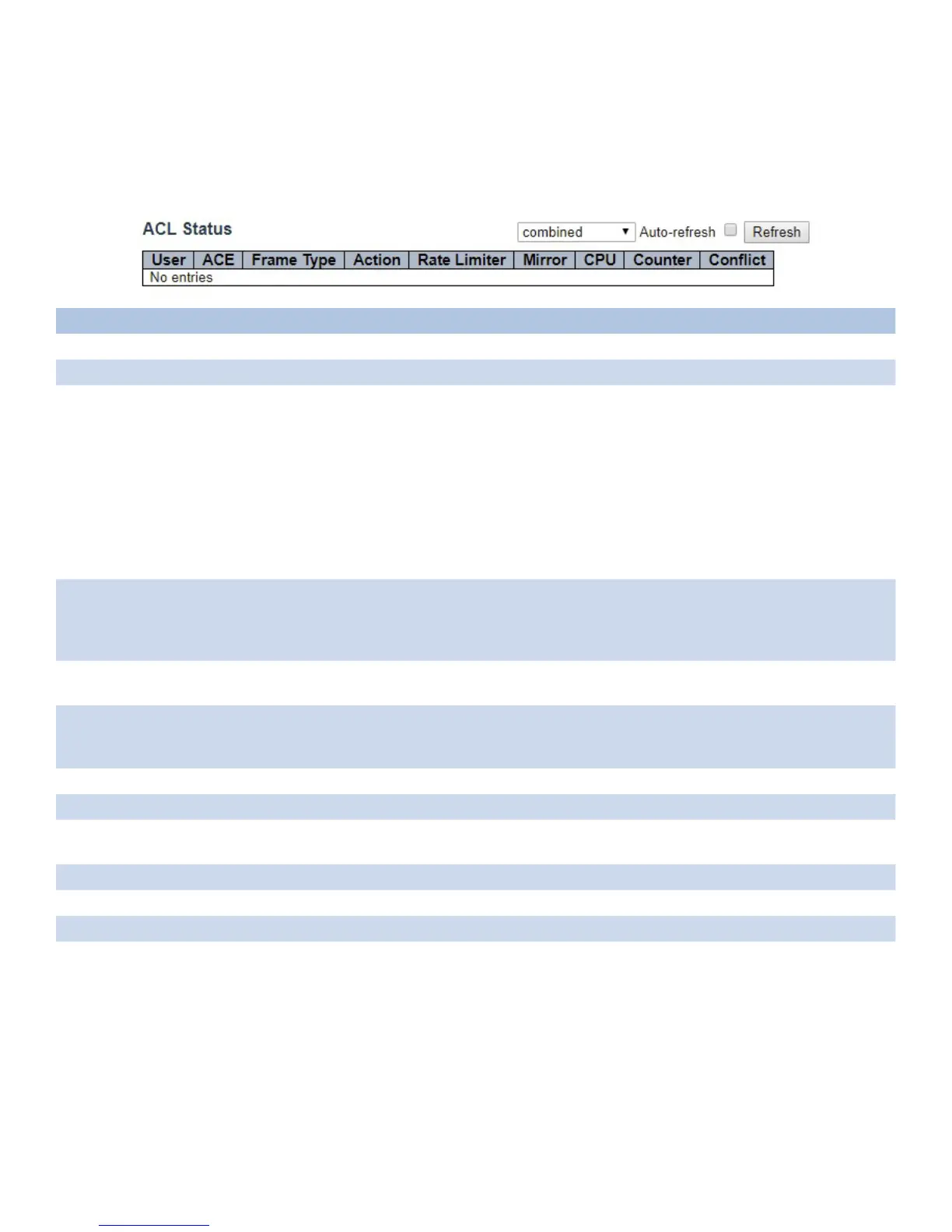

ACL Status
This page shows the ACL status by different ACL users. Each row describes the ACE that is
defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations.
The maximum number of ACEs is 256 on each switch.
Object Description
User Indicates the ACL user.
ACE Indicates the ACE ID on local switch.
Frame Type Indicates the frame type of the ACE. Possible values are:
Any: The ACE will match any frame type.
EType: The ACE will match Ethernet Type frames. Note that an Ethernet Type based ACE will not get
matched by IP and ARP frames.
ARP: The ACE will match ARP/RARP frames.
IPv4: The ACE will match all IPv4 frames.
IPv4/ICMP: The ACE will match IPv4 frames with ICMP protocol. IPv4/UDP: The ACE will match IPv4
frames with UDP protocol. IPv4/TCP: The ACE will match IPv4 frames with TCP protocol.
IPv4/Other: The ACE will match IPv4 frames, which are not ICMP/UDP/TCP. IPv6: The ACE will match
all IPv6 standard frames.
Action Indicates the forwarding action of the ACE.
Permit: Frames matching the ACE may be forwarded and learned.
Deny: Frames matching the ACE are dropped.
Filter: Frames matching the ACE are filtered.
Rate limiter Indicates the rate limiter number of the ACE. The allowed range is 1 to 16. When Disabled is
displayed, the rate limiter operation is disabled.
Mirror Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
Disabled: Frames received on the port are not mirrored. The default value is “Disabled”.
CPU Forward packet that matched the specific ACE to CPU.
Counter The counter indicates the number of times the ACE was hit by a frame.
Conflict Indicates the hardware status of the specific ACE. The specific ACE is not applied to the hardware
due to hardware limitations.
Combined Select the ACL user from this drop-down list.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the page.
