Groups Information

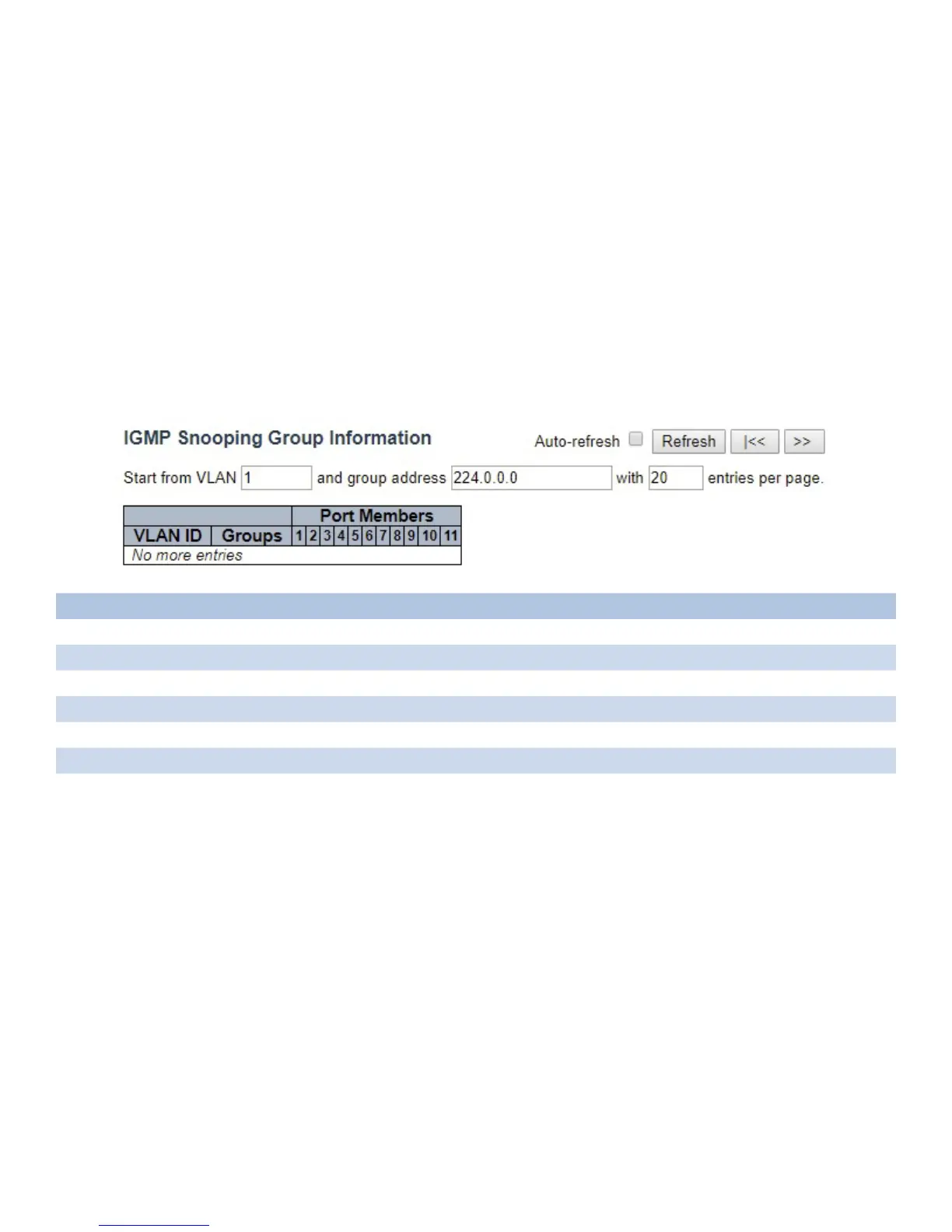

Each page shows up to 99 entries from the IGMP Group table, default being 20, selected through
the “entries per page” input field. When first visited, the web page will show the first 20 entries
from the beginning of the IGMP Group Table.
The “Start from VLAN “, and “group” input fields allow the user to select the starting point in the
IGMP Group Table. Clicking the “Refresh” button will update the displayed table starting from
that or the closest next IGMP Group Table match. In addition, the two input fields will - upon
a “Refresh” button click - assume the value of the first displayed entry, allowing for continuous
refresh with the same start address.
The “>>” will use the last entry of the currently displayed table as a basis for the next lookup.
When the end is reached the text “No more entries” is shown in the displayed table. Use the “|<<”
button to start over.
Object Description
VLAN ID VLAN ID of the group.
Groups Group address of the group displayed.
Port Members Ports under this group.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
|<< Click to update the table, starting with the first entry in the IGMP Group Table.
>> Click to update the table, starting with the entry after the last entry currently displayed.
