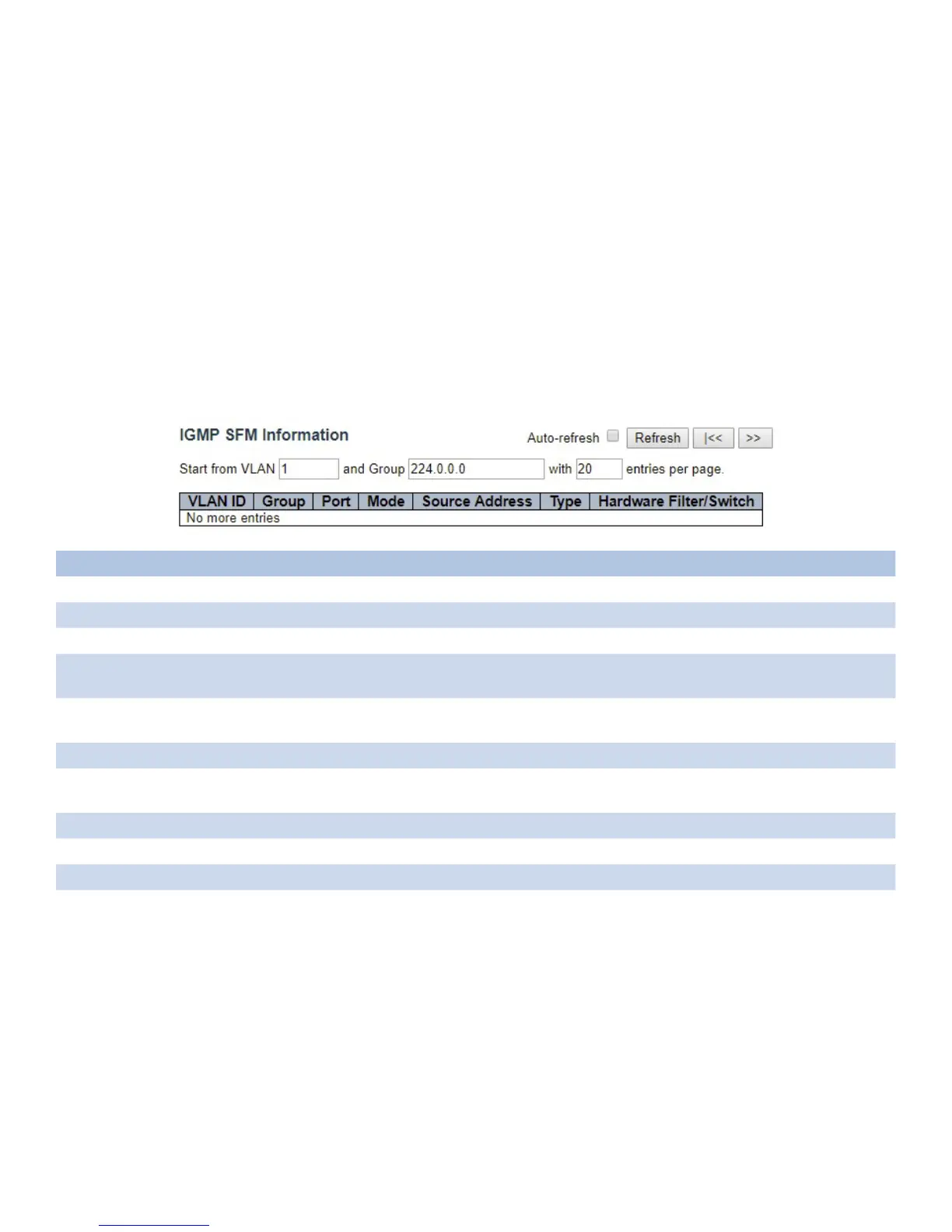

IPv4 SFM Information
Each page shows up to 99 entries from the IGMP SFM Information table, default being 20,
selected through the “entries per page” input field. When first visited, the web page will show the
first 20 entries from the beginning of the IGMP SFM Information Table.
The “Start from VLAN “, and “group” input fields allow the user to select the starting point in the
IGMP SFM Information Table. Clicking the “Refresh” button will update the displayed table starting
from that or the closest next IGMP SFM Information Table match. In addition, the two input fields
will - upon a “Refresh” button click - assume the value of the first displayed entry, allowing for
continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed table as a basis for the next lookup.
When the end is reached the text “No more entries” is shown in the displayed table. Use the “<<”
button to start over.
Object Description
VLAN ID VLAN ID of the group.
Group Group address of the group displayed.
Port Switch port number.
Mode Indicates the filtering mode maintained per (VLAN ID, port number, Group Address) basis.
It can be either Include or Exclude.
Source Address IP Address of the source. Currently, system limits the total number of IP source addresses
for filtering to be 128.
Type Indicates the Type. It can be either Allow or Deny.
Hardware Filter/Switch Indicates whether data plane destined to the specific group address from the source IPv4
address could be handled by chip or not.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
|<< Click to update the table starting from the first entry in the IGMP SFM Information Table.
>> Click to update the table, starting with the entry after the last entry currently displayed.
