EEE

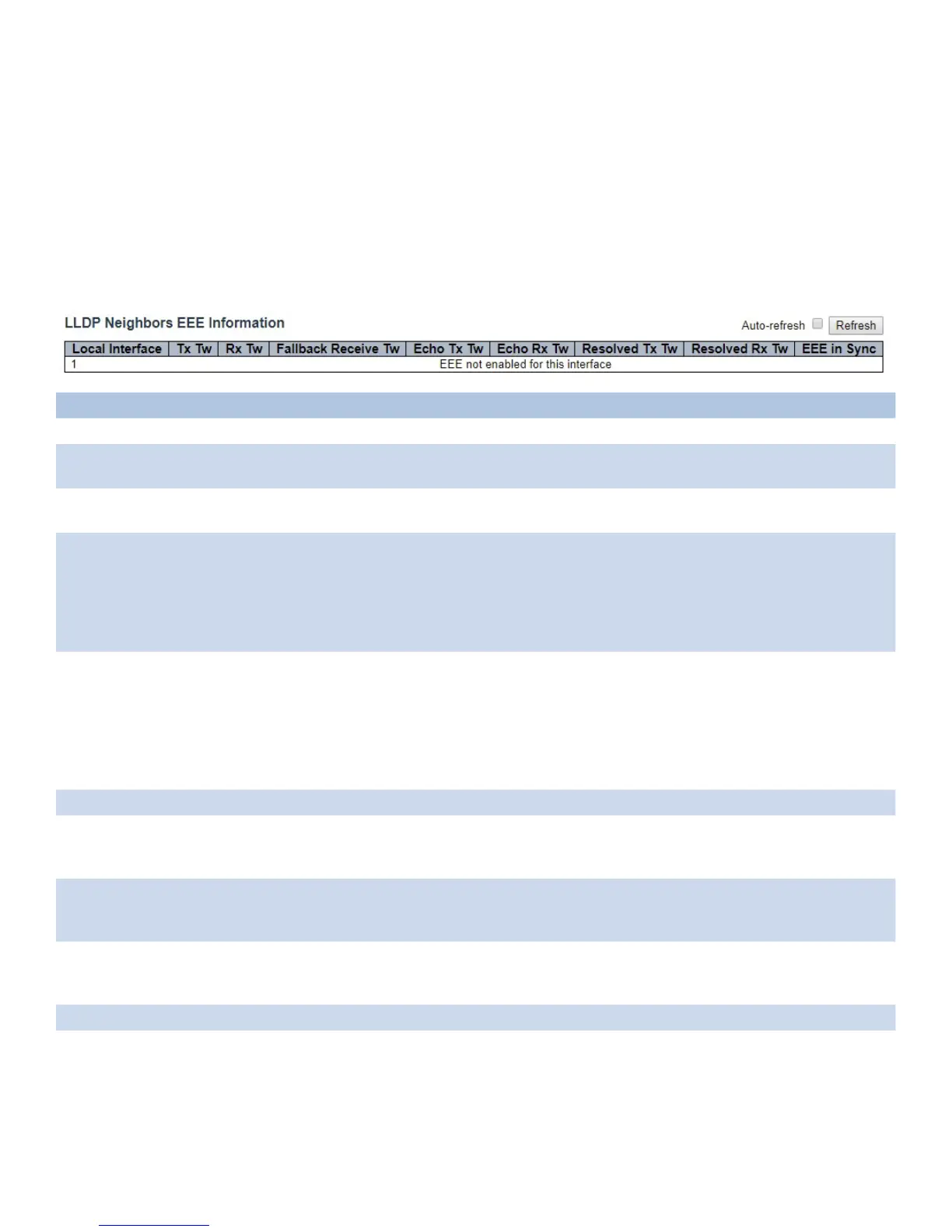

The displayed table contains a row for each interface.
If the interface does not support EEE, then it displays as “EEE not supported for this interface”.
If EEE is not enabled on particular interface, then it displays as “EEE not enabled for this interface”.
If the link partner doesn’t support EEE, then it displays as “Link partner is not EEE capable.
The columns hold the following information:
Object Description
Local Interface The interface at which LLDP frames are received or transmitted.
TX Tw The link partner’s maximum time that transmit path can hold-off sending data after
de-assertion of LPI.
RX Tw The link partner’s time that receiver would like the transmitter to hold-off to allow time for the
receiver to wake from sleep.
Fallback Receive Tw The link partner’s fallback receive Tw.
A receiving link partner may inform the transmitter of an alternate desired Tw_sys_tx. Since a
receiving link partner is likely to have discrete levels for savings, this provides the transmitter
with additional information that it may use for a more efficient allocation. Systems that do not
implement this option default the value to be the same as that of the Receive Tw_sys_tx.
“DISABLE” denotes the specific interface is administratively disabled.
Echo Tx Tw The link partner’s Echo Tx Tw value.
The respective echo values shall be defined as the local link partners reflection (echo) of
the remote link partners respective values. When a local link partner receives its echoed
values from the remote link partner it can determine whether or not the remote link partner
has received, registered and processed its most recent values. For example, if the local link
partner receives echoed parameters that do not match the values in its local MIB, then the
local link partner infers that the remote link partners request was based on stale information.
Echo Rx Tw The link partner’s Echo Rx Tw value.
Resolved Tx Tw The resolved Tx Tw for this link. Note : NOT the link partner
The resolved value that is the actual “tx wakeup time “ used for this link (based on EEE
information exchanged via LLDP).
Resolved Rx Tw The resolved Rx Tw for this link. Note : NOT the link partner
The resolved value that is the actual “tx wakeup time “ used for this link (based on EEE
information exchanged via LLDP).
EEE in Sync Shows whether the switch and the link partner have agreed on wake times.
Red - Switch and link partner have not agreed on wakeup times.
Green - Switch and link partner have agreed on wakeup times.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
