INS_CNGE3FE8MS[POE][HO] Rev. 11.7.17 PAGE 300
INSTRUCTION MANUAL CNGE3FE8MS[POE][HO]
TECH SUPPORT: 1.888.678.9427

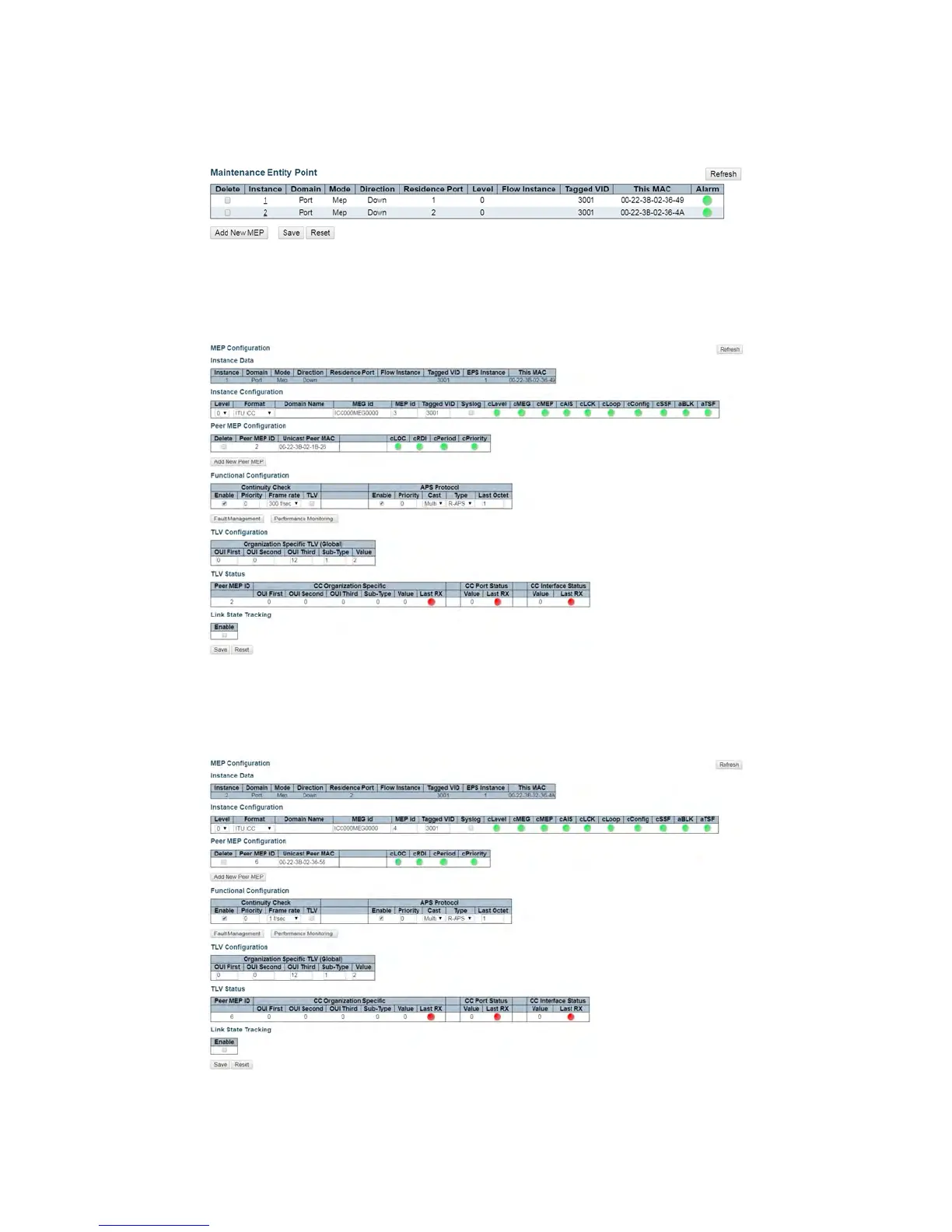

Configuring Switch 2
1. Add a new MEP on port 1 and 2 of switch 2.
Figure 5 – Switch 2 Port 1 and 2 MEP Configuration
2. Edit MEP1 of switch 2 by clicking 1 under Instance of the MEP table. Configure the MEP as
shown, and click Save or Apply.
Figure 6 – Switch 2 MEP 1 Configuration
3. Edit MEP2 of switch 2 by clicking 2 under Instance of the MEP table. Configure the MEP as
shown, and click Save or Apply.
Figure 7 – Switch 2 MEP 2 Configuration
