Ports

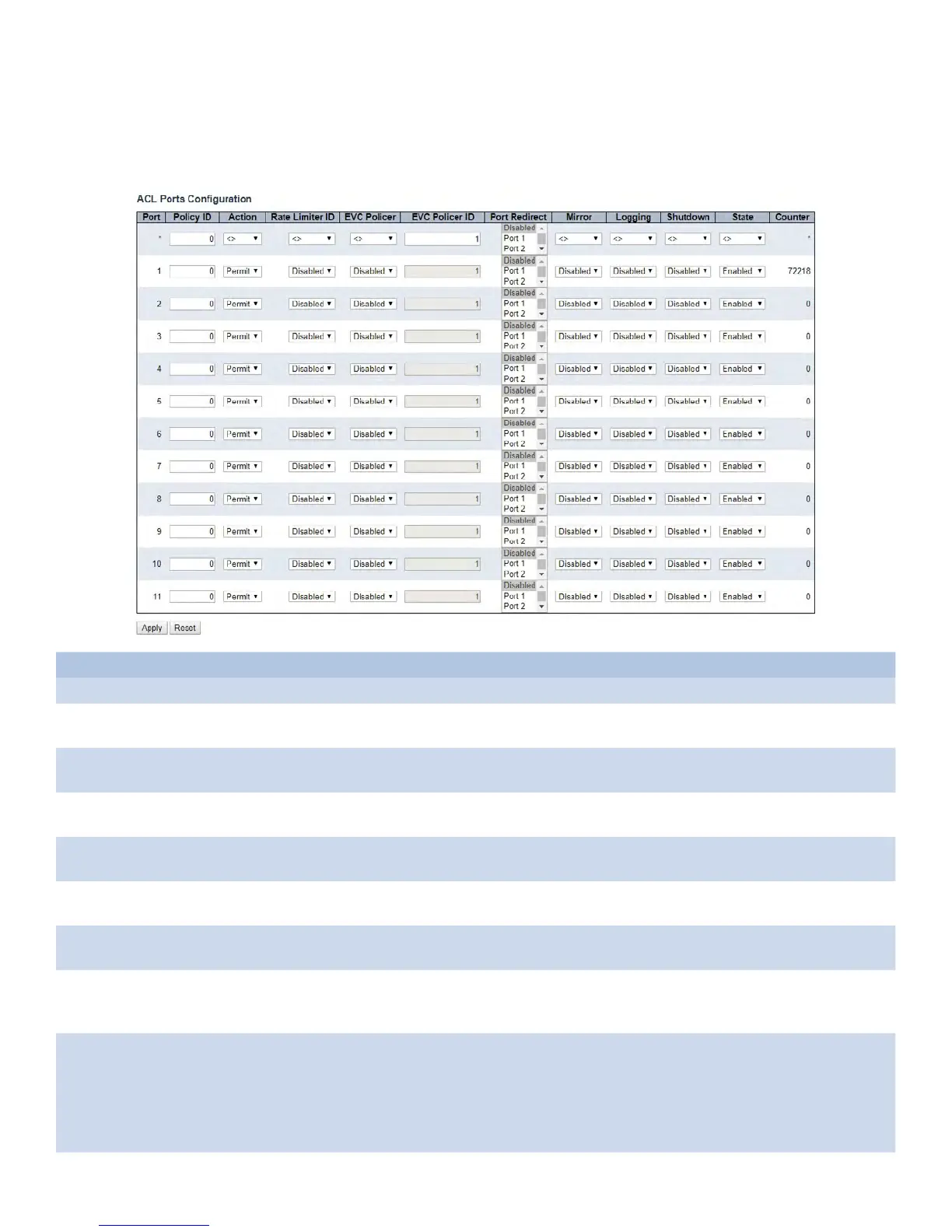

Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames
received on a port unless the frame matches a specific ACE.
Object Description
Port The logical port for the settings contained in the same row.
Policy ID Select the policy to apply to this port. The allowed values are 0 through 255. The default value is
0.
Action Select whether forwarding is permitted (“Permit”) or denied (“Deny”). The default value is
“Permit ”.
Rate Limiter ID Select which rate limiter to apply on this port. The allowed values are Disabled or the values 1
through 16. The default value is “Disabled”.
EVC Policer Select whether EVC policer is enabled or disabled. The default value is "Disabled". Note that ACL
rate limiter and EVC policer can not both be enabled.
EVC Policer ID Select which EVC policer ID to apply on this port. The allowed values are Disabled or the values
1 through 256.
Port Redirect Select which port frames are redirected on. The allowed values are Disabled or a specific port
number and it can’t be set when action is permitted. The default value is “Disabled”.
Mirror Specify the mirror operation of this port. The allowed values are: Enabled: Frames received on
the port are mirrored. Disabled: Frames received on the port are not mirrored. The default value
is “Disabled”.
Logging Specify the logging operation of this port. Notice that the logging message doesn’t include the
4 bytes CRC. The allowed values are:
Enabled: Frames received on the port are stored in the System Log.
Disabled: Frames received on the port are not logged.
The default value is “Disabled”. Note: The logging feature only works when the packet length is
less than 1518(without VLAN tags) and the System Log memory size and logging rate is limited.
