78
MICROCHOICE
HANDPIECES
C

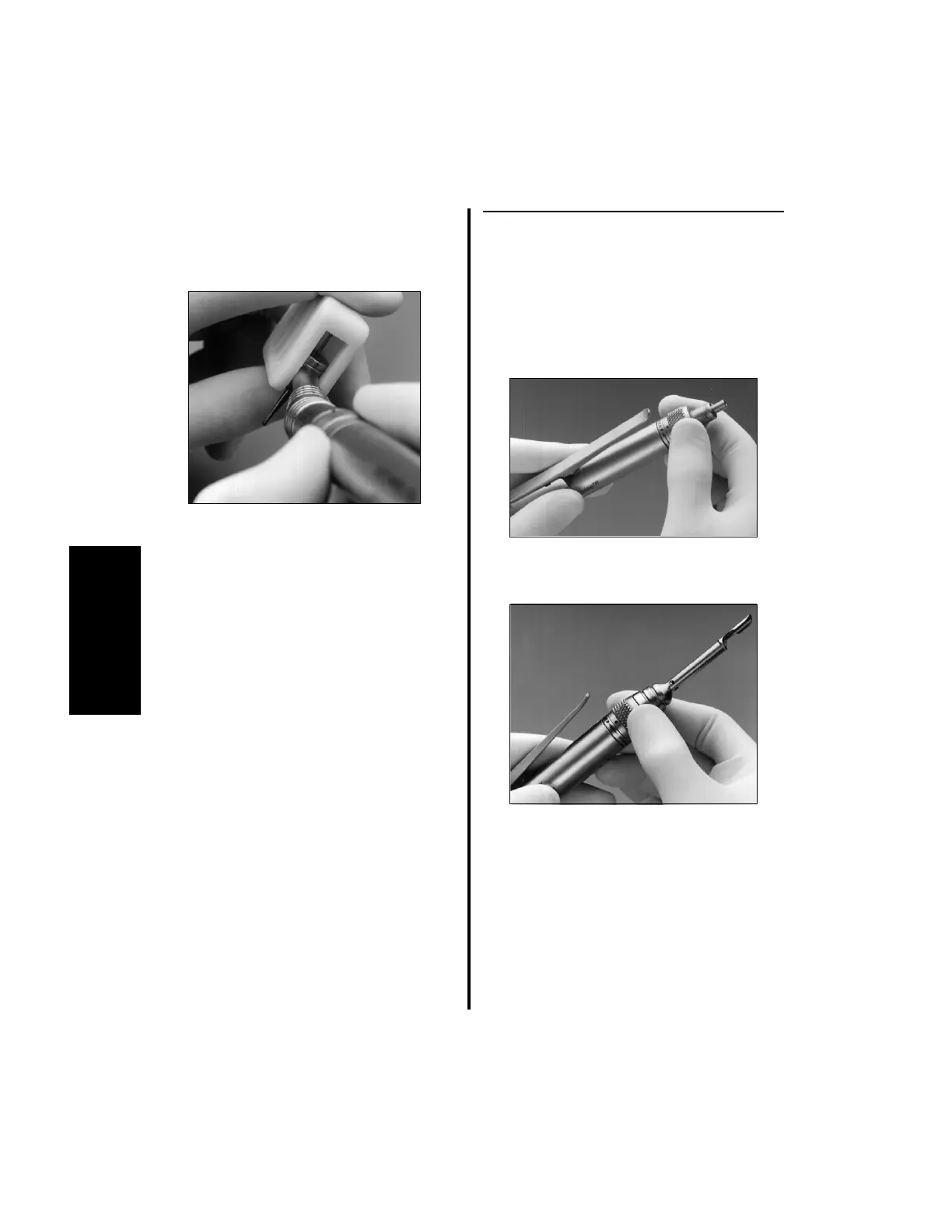

3. To remove the bur:
(a) Place the bur changer in the opening at
the rear of the attachment.
(b) Press firmly on the bur changer to push
the bur out.
4. To remove the attachment:
(c) Rotate the handpiece bur lock collar to
the “OPEN” position and remove the
guard.
70° Contra Angle (5020-069) with Dental Head
Attachment
The 70° Contra-Angle with Dental Head
attachment uses friction grip burs only - size
1/16” or 1.58 mm in diameter. Friction grip burs
of this diameter are not marketed by ConMed
Linvatec. They are available through dental
supply dealers.
3.4.3.4 Tissue Retractor Bur Guard
(5020-068)
1. To fasten the attachment to the handpiece:
(a) Rotate the handpiece bur lock collar
counterclockwise to the “OPEN”
position.
(b) Slide the guard over the end of the
drill. Ensure it is completely seated.
2. Insert the bur through the tip of the bur
guard and into the handpiece collet. (Any
5092 series bur with a head diameter of
4mm or less. The recommended bur is
5092-136, Long Oval Cutting Bur).
3. Rotate the handpiece bur lock collar
clockwise until the indicator dots are
aligned in the “LOCK” position to lock the
bur into place.
