SETUP Assembling the Cubiscan 325

Cubiscan 325 8

• Place the base assembly of the Cubiscan 325 on a stable surface. Make

sure that the Cubiscan 325 is level. Adjust the leveling feet located in

each corner if necessary.

• An optional cart, custom-designed for the Cubiscan 325, is available

from Cubiscan. If you purchased this cart, use the two T-handle pins to

secure the Cubiscan to the cart. See Figure 3.

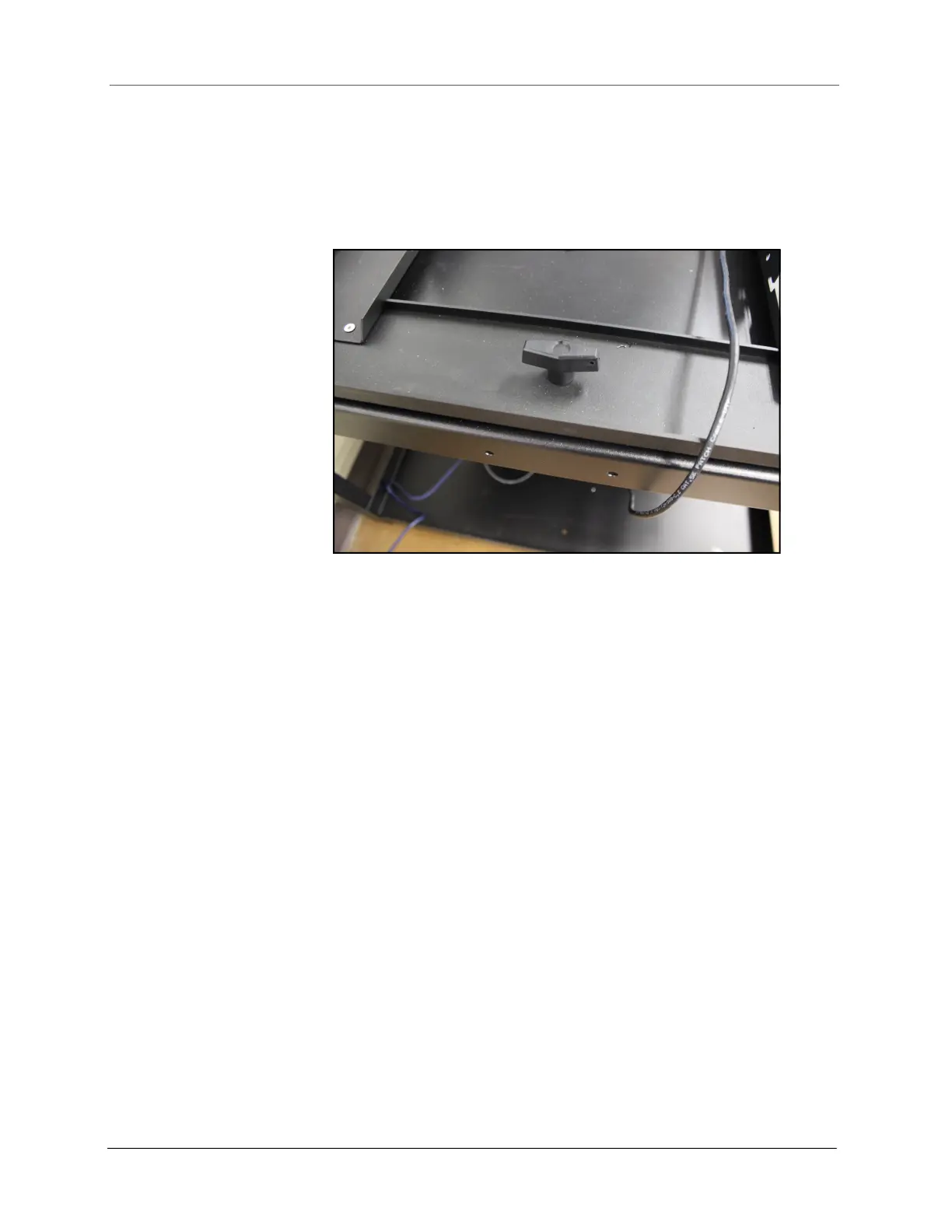

Figure 3

T-Handle
