TROUBLESHOOTING Diagnostics

Cubiscan 325 71

2. Tap DIAGNOSE. Select the Scale option if it is not already selected.

From this screen you can view the diagnostic scale values.

LDW

This field displays the dead weight count. (This field may or may not be

visible, depending on the scale board your Cubiscan has.)

LWT

This field displays the full weight count. (This field may or may not be

visible, depending on the scale board your Cubiscan has.)

Motion

This field displays the motion status of the scale.

0=No motion

1=Motion

Wgt

This field displays the current weight.

COZ

This field displays the center of zero.

This field displays the auto zero tracker.

Zero

This field displays whether there is weight on the scale or not.

0=Weight on scale

1=No weight on scale

Tare

This field displays the zero adjustment count.

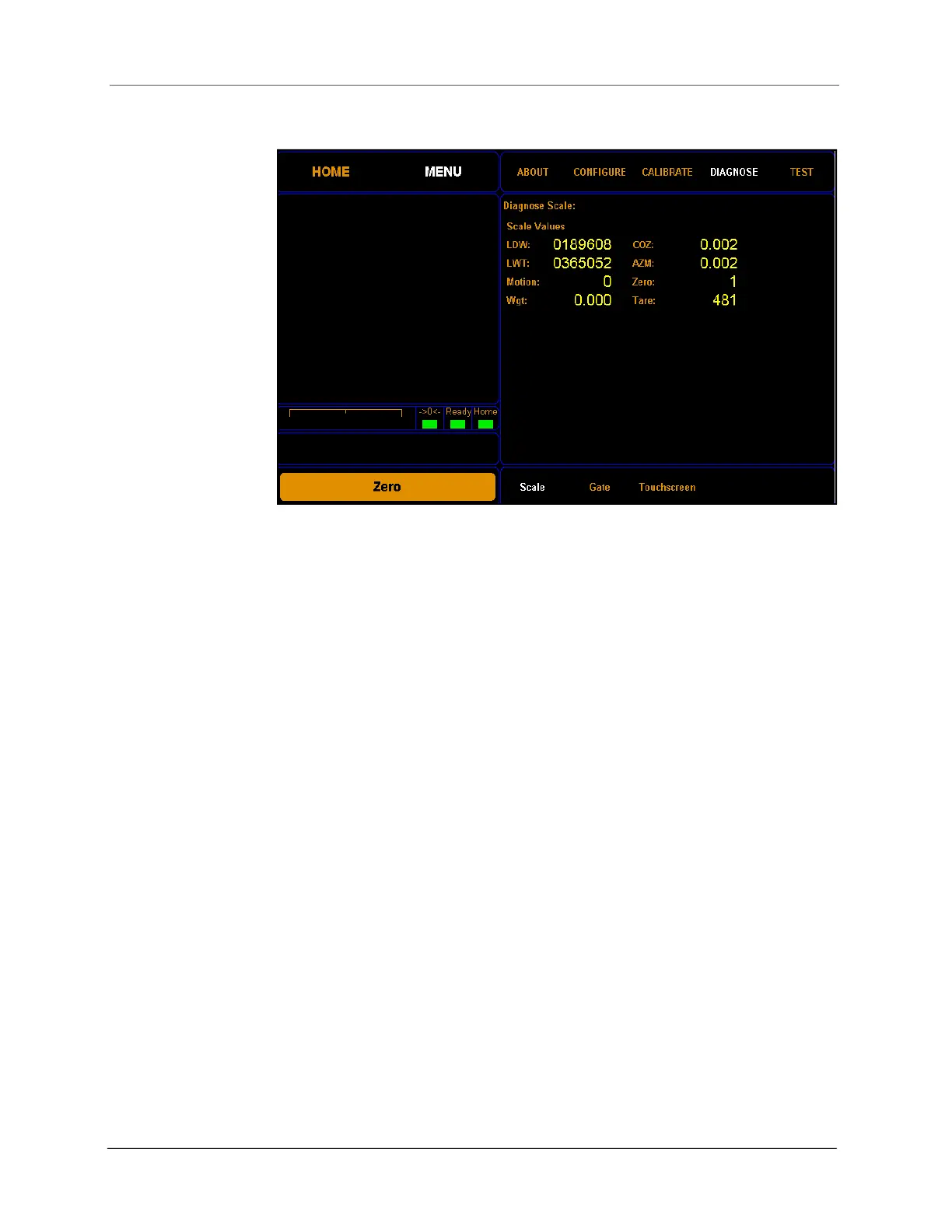

Figure 66

Scale diagnostics
