SETUP Connecting power

Cubiscan 325 15

Connecting power

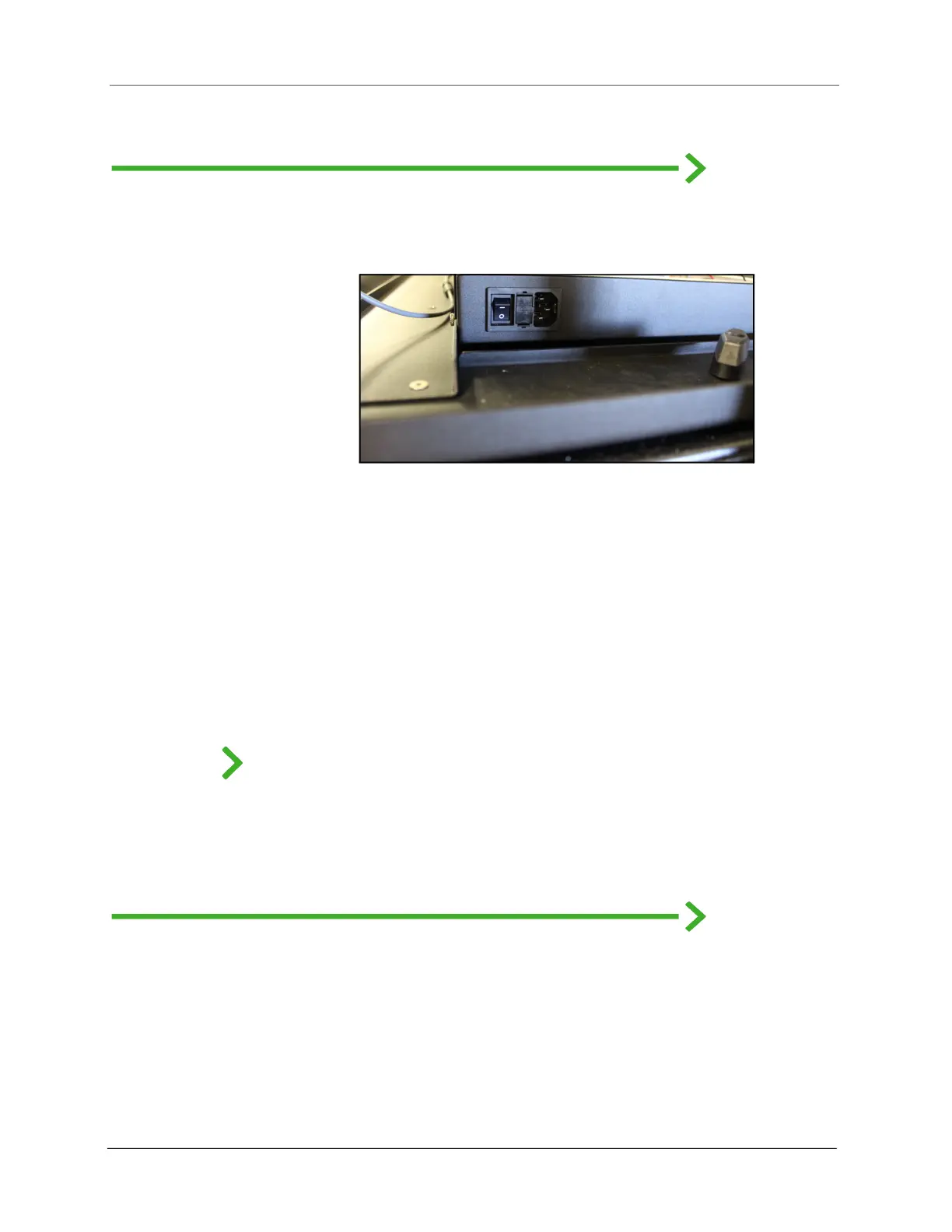

1. Locate the AC power cord (supplied), and connect it to the power

connection on the right side of the controller box, as shown below.

2. Route the AC power cord so it cannot be crushed, bent, or pulled

loose.

3. Connect the other end of the AC power cord to a standard power

outlet.

4. Use the power switch on the right side of the controller box (shown

above) to turn the Cubiscan 325 on and off.

NOTE

The Cubiscan 325 should be powered on before running the Qbit program to

cube and weigh packages.

Turning on the Cubiscan 325

Specific procedures must be followed each time you turn on the Cubiscan

325, as follows:

1. Make sure there are no packages or other objects on the Cubiscan 325

platform.

2. Make sure the gate is in the home position (right-hand side).

Figure 13

Connecting power
