CALIBRATION Calibrating the touchscreen

Cubiscan 325 59

3. Using a stylus or your finger, touch the center of each x on the screen

until the “x” turns green. There are five calibration points on the screen.

4. When all the x’s are green, the calibration is complete.

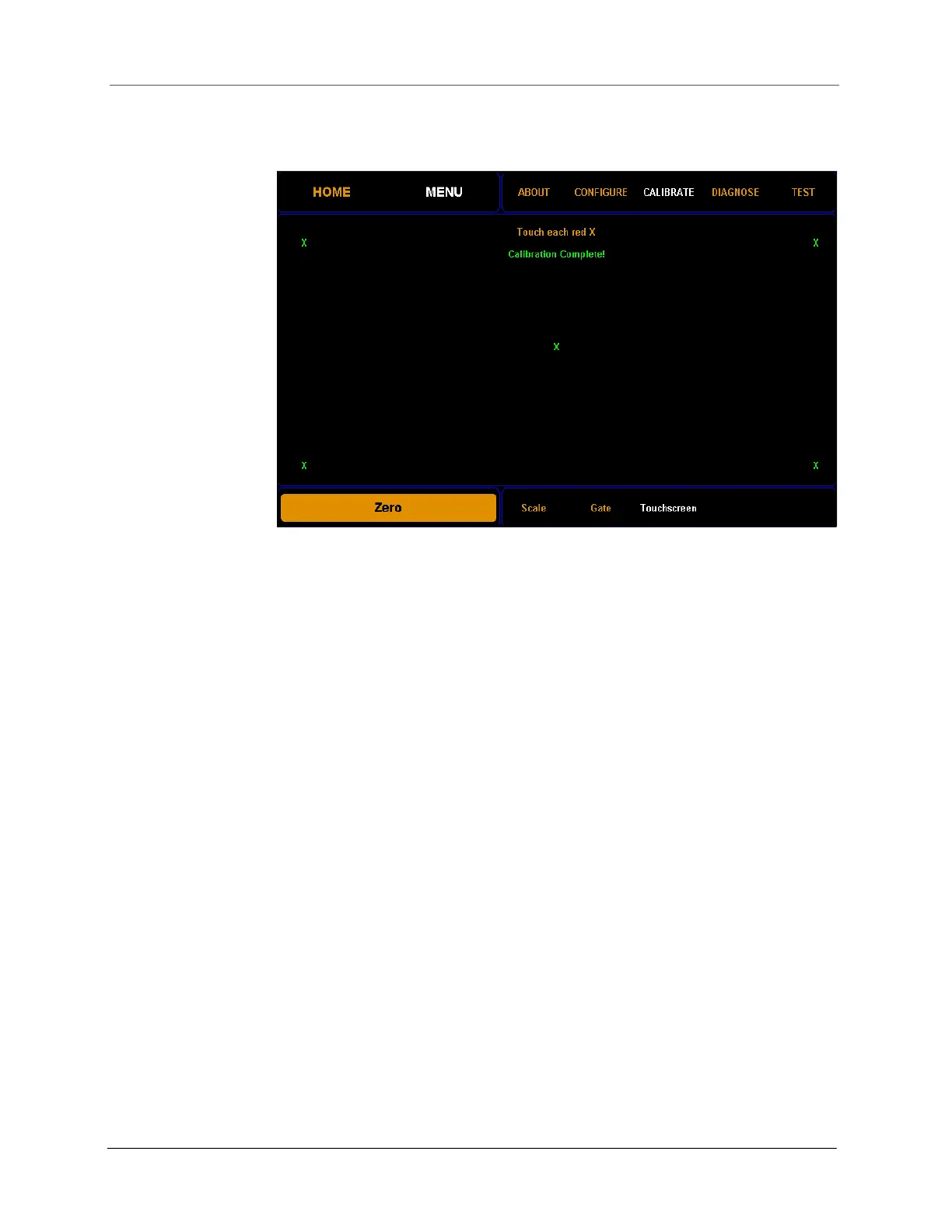

Figure 56

Touchscreen calibration
