TROUBLESHOOTING Diagnostics

Cubiscan 325 76

2. Tap the [>] button to go to the next screen.

Touchscreen diagnostics

Complete the following steps to view the touchscreen diagnostics.

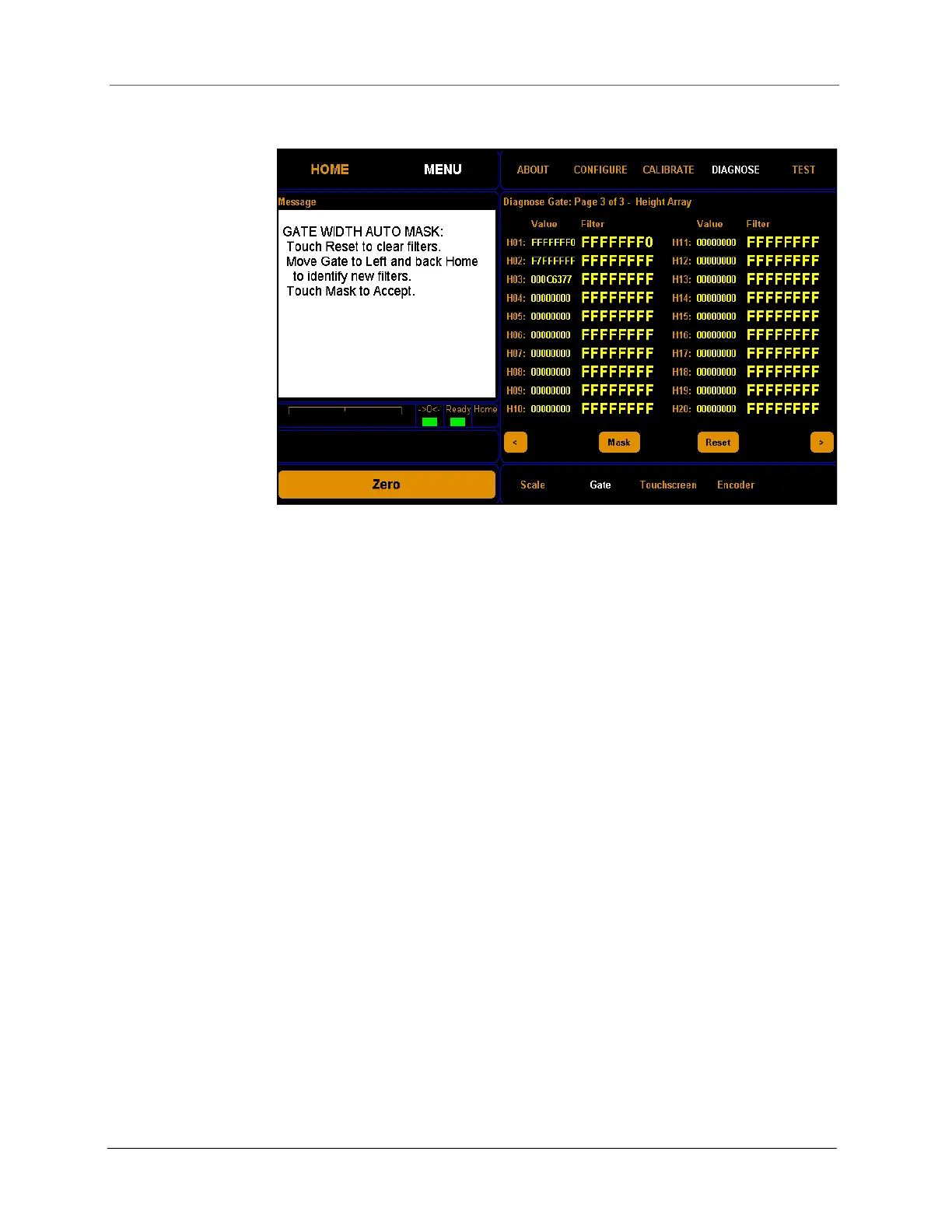

Figure 71

Third gate diagnostic screen
