CALIBRATION Calibrating the scale

Cubiscan 325 54

4. Place the calibration weights on the Cubiscan 325 platform. Tap [Next]

to continue.

5. You have now finished calibrating the scale. Tap HOME to return to the

home screen or if you would like to try calibrating the scale again, tap

[Next].

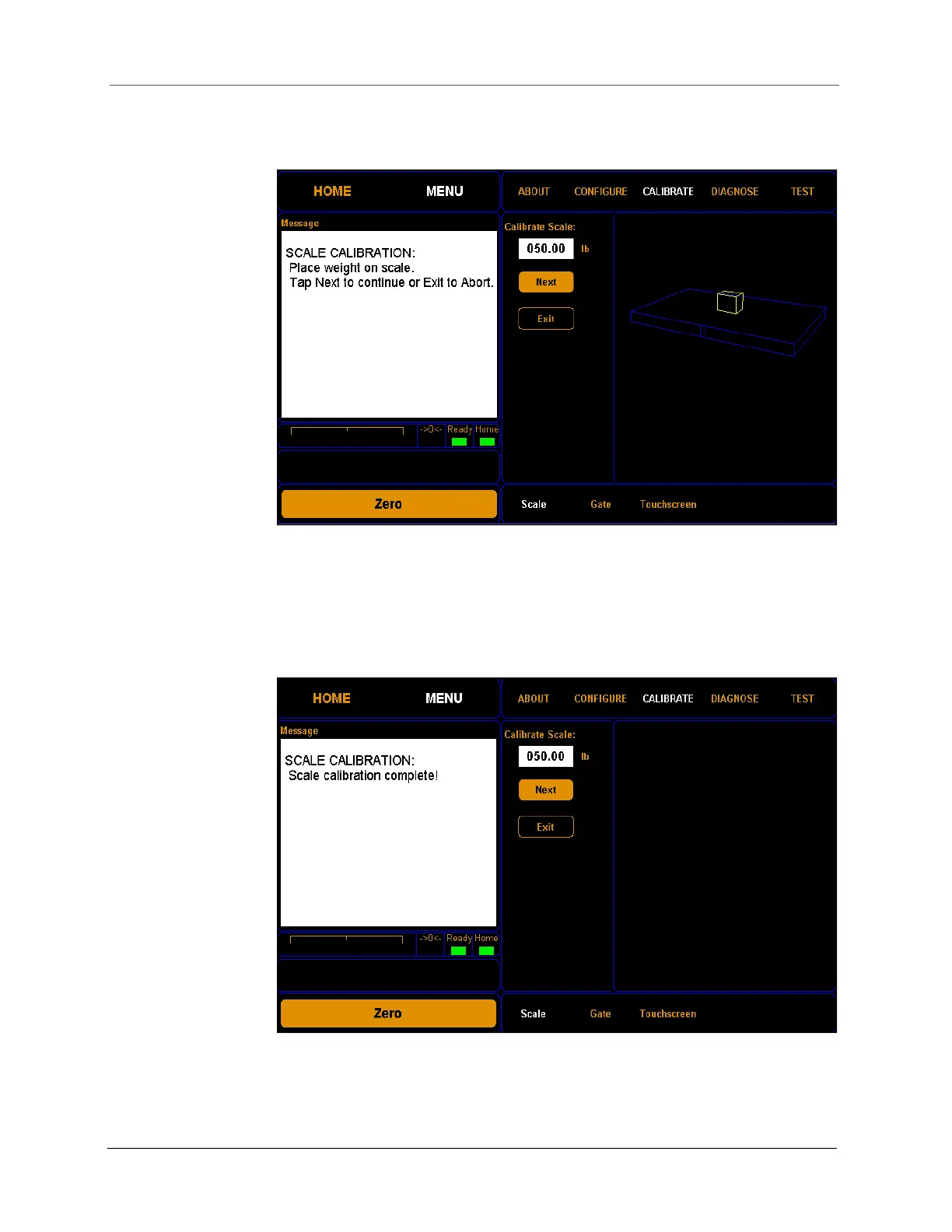

Figure 49

Second scale calibration screen

Figure 50

Scale calibration complete
