TROUBLESHOOTING Testing

Cubiscan 325 84

2. Tap TEST. Select the Gate option if it is not already selected.

From gate diagnostic screens one through two, you can run and view the

results of the cube test. Only run this test if instructed to by a Cubiscan

employee.

3. Tap [>] twice to reach the third gate diagnostic screen.

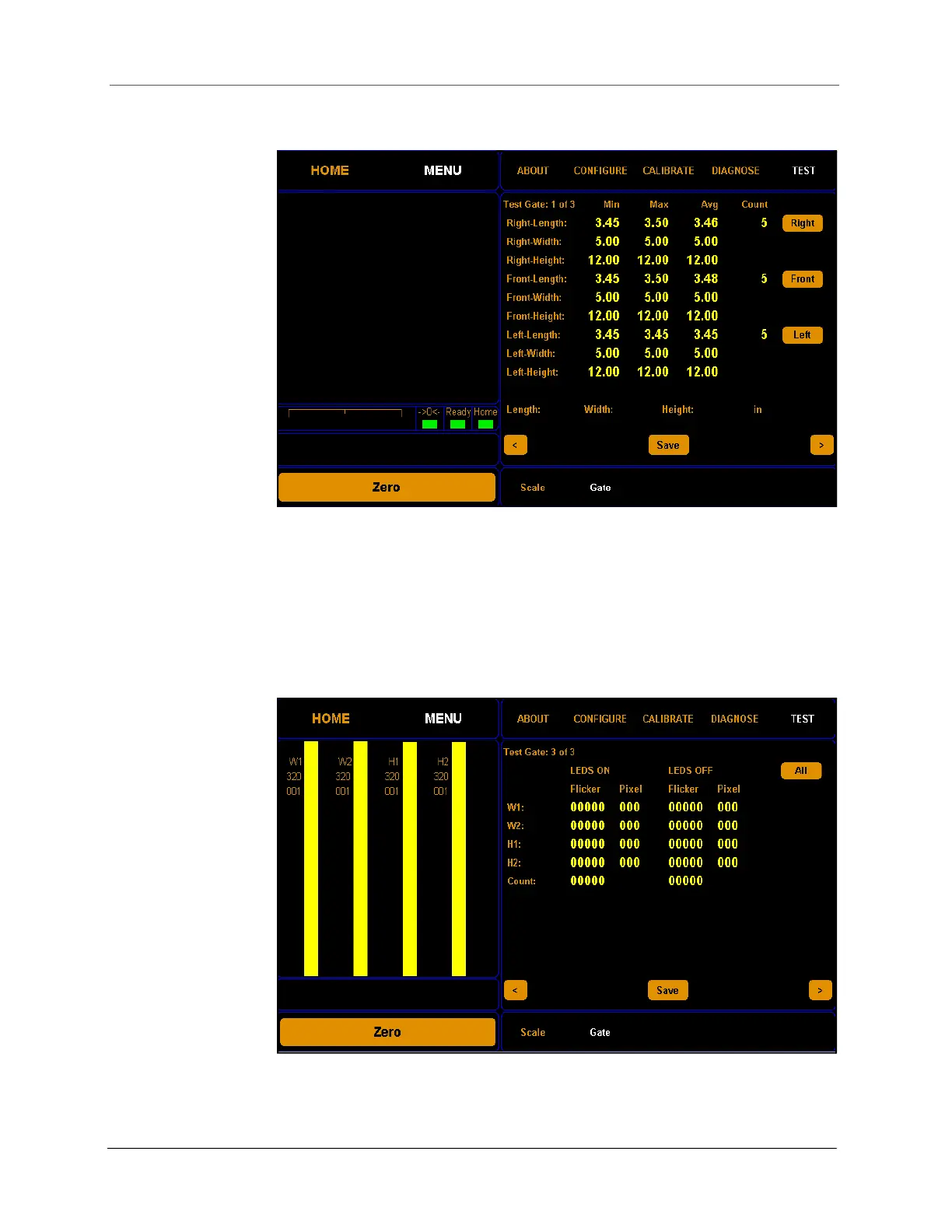

Figure 79

First gate test screen

Figure 80

Third gate diagnostic screen
