TROUBLESHOOTING Testing

Cubiscan 325 80

2. Tap DIAGNOSE. Select the Encoder option if it is not already selected.

From this screen you can view the encoder count.

Testing

This section describes the factory testing capabilities of the Cubiscan 325.

Data in this section should not be altered unless you are instructed to do so

by a Cubiscan employee.

Scale

Complete the following steps to view the Scale Testing.

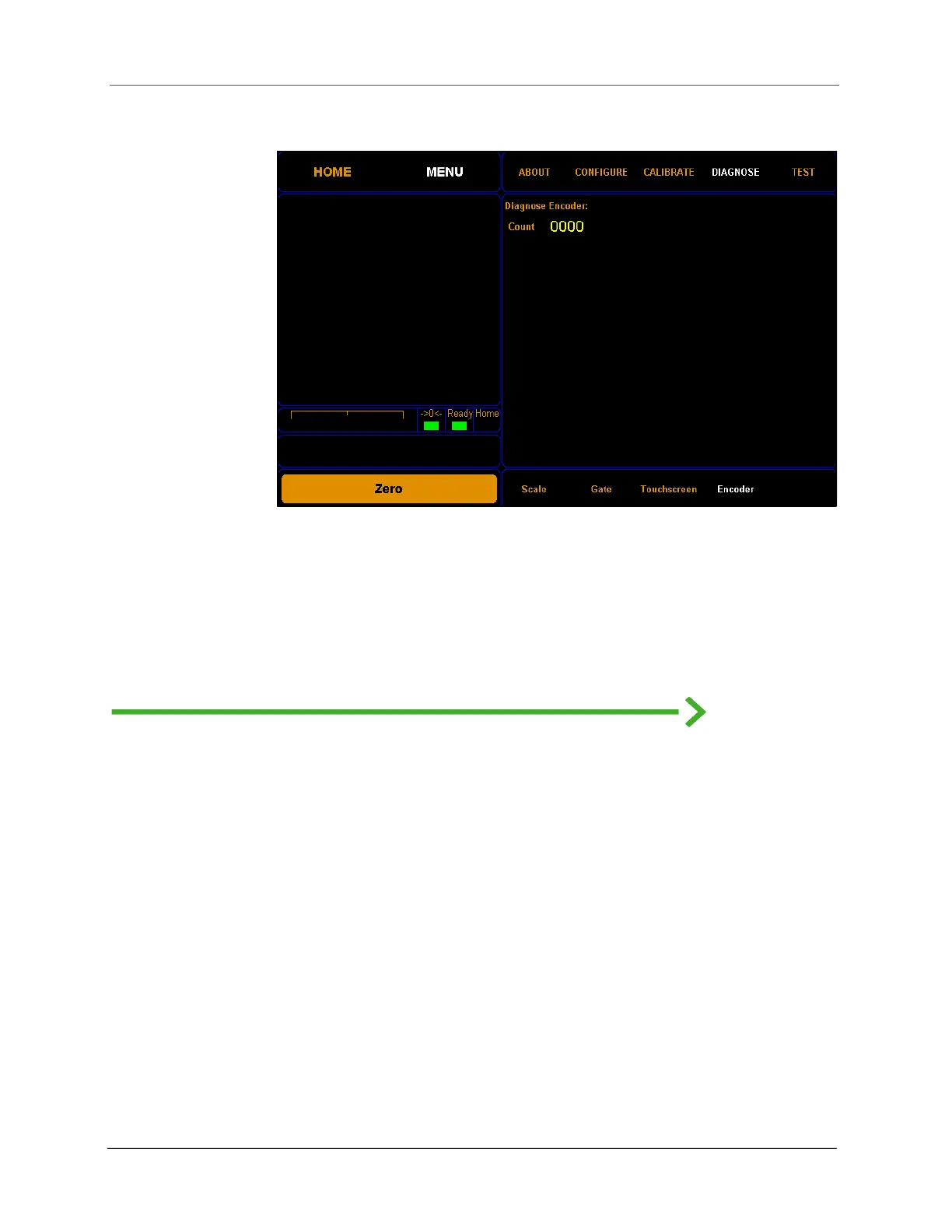

Figure 75

Diagnostic encoder
