CALIBRATION Calibrating the scale

Cubiscan 325 53

2. Tap CALIBRATE. Select the Scale option if it is not already selected.

Make sure the weight units displayed are correct for the test weight you

are using. Tap [Next] to begin the scale calibration.

3. The following screen is displayed. Clear the scale of all objects, and tap

[Next] to continue.

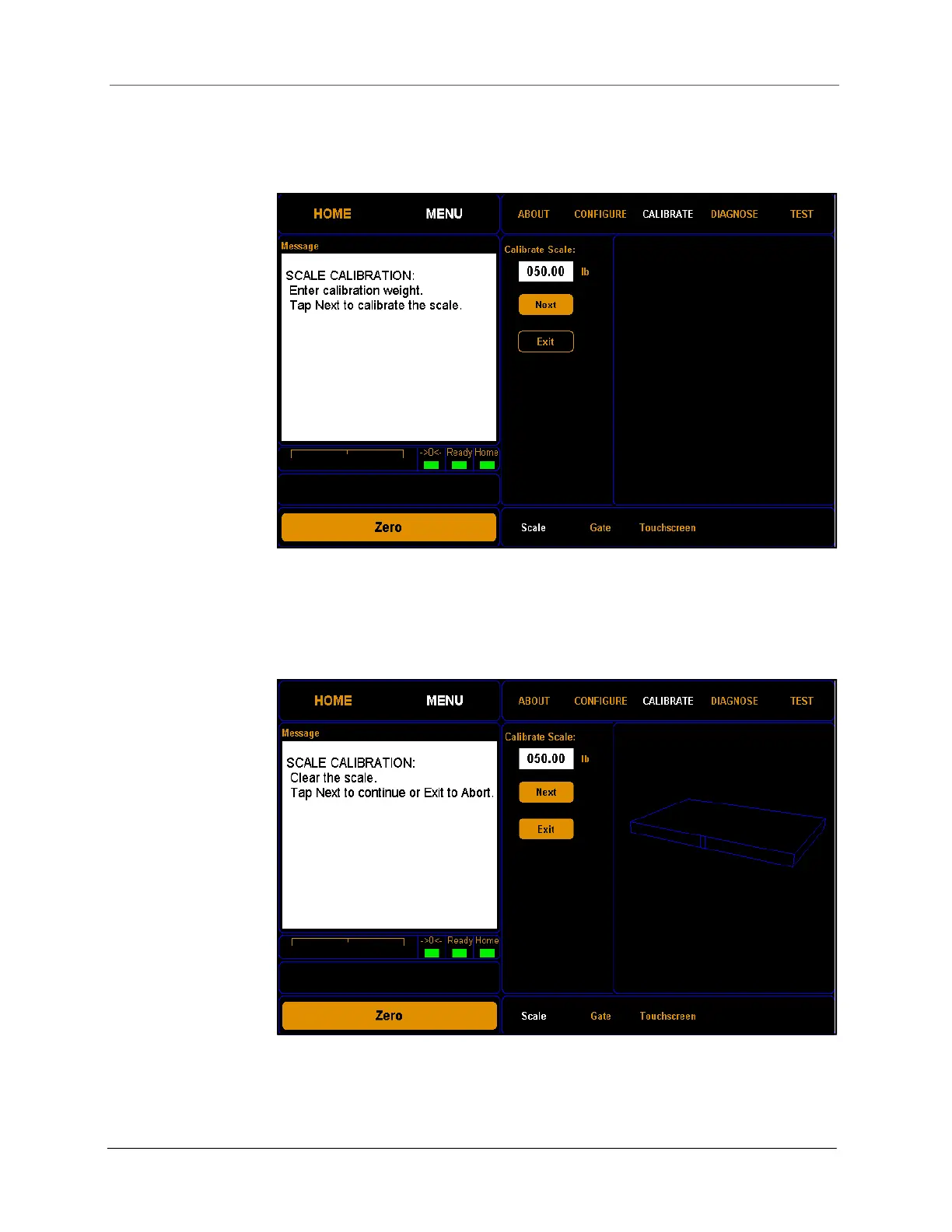

Figure 47

First scale calibration screen

Figure 48

Second scale calibration screen
