TROUBLESHOOTING Diagnostics

Cubiscan 325 78

2. Tap DIAGNOSE. Select the Touchscreen option if it is not already

selected.

From this screen you can view the linearization parameters of the

touchscreen.

To test the calibration of the touchscreen you can touch the screen and a x

should appear.

Encoder diagnostics

Complete the following steps to view the encoder diagnostics.

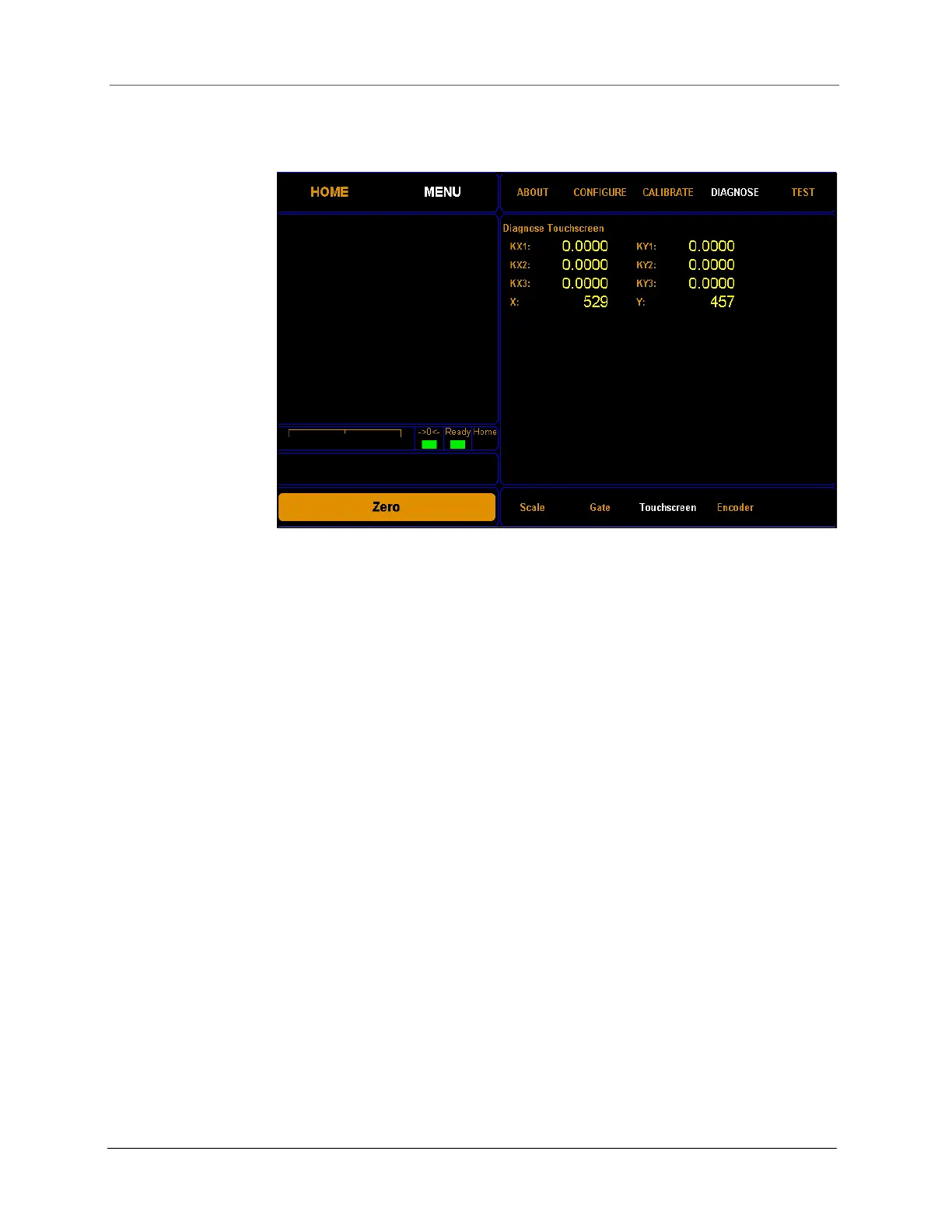

Figure 73

Diagnostic touchscreen
