TROUBLESHOOTING About

Cubiscan 325 68

2. Tap About. Select the Config-Audit option if it is not already selected.

Configuration

Audit Trail

This field displays the configuration audit history.

Cal-Audit

This section discusses the Cal-Audit menu. Complete the following steps

to access the Cal-Audit menu.

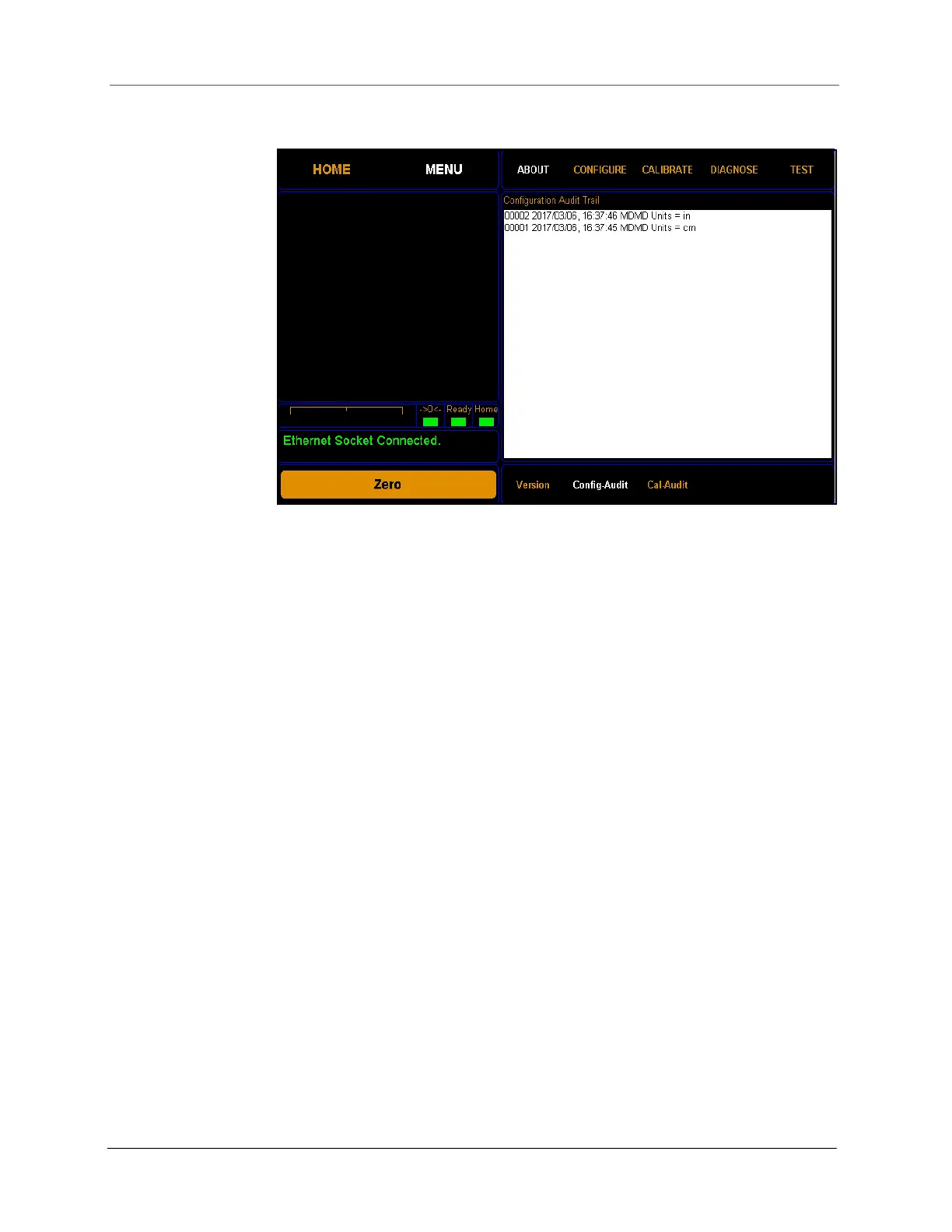

Figure 62

About Config-Audit
