CONFIGURATION System configuration

Cubiscan 325 47

1. From the home screen, tap MENU.

NOTE

If you have set up a password previously in the system configuration, you need to

enter the password to unlock the menu. Refer to page 43.

2. Tap CONFIGURE. Select the Ethernet option if it is not already

selected.

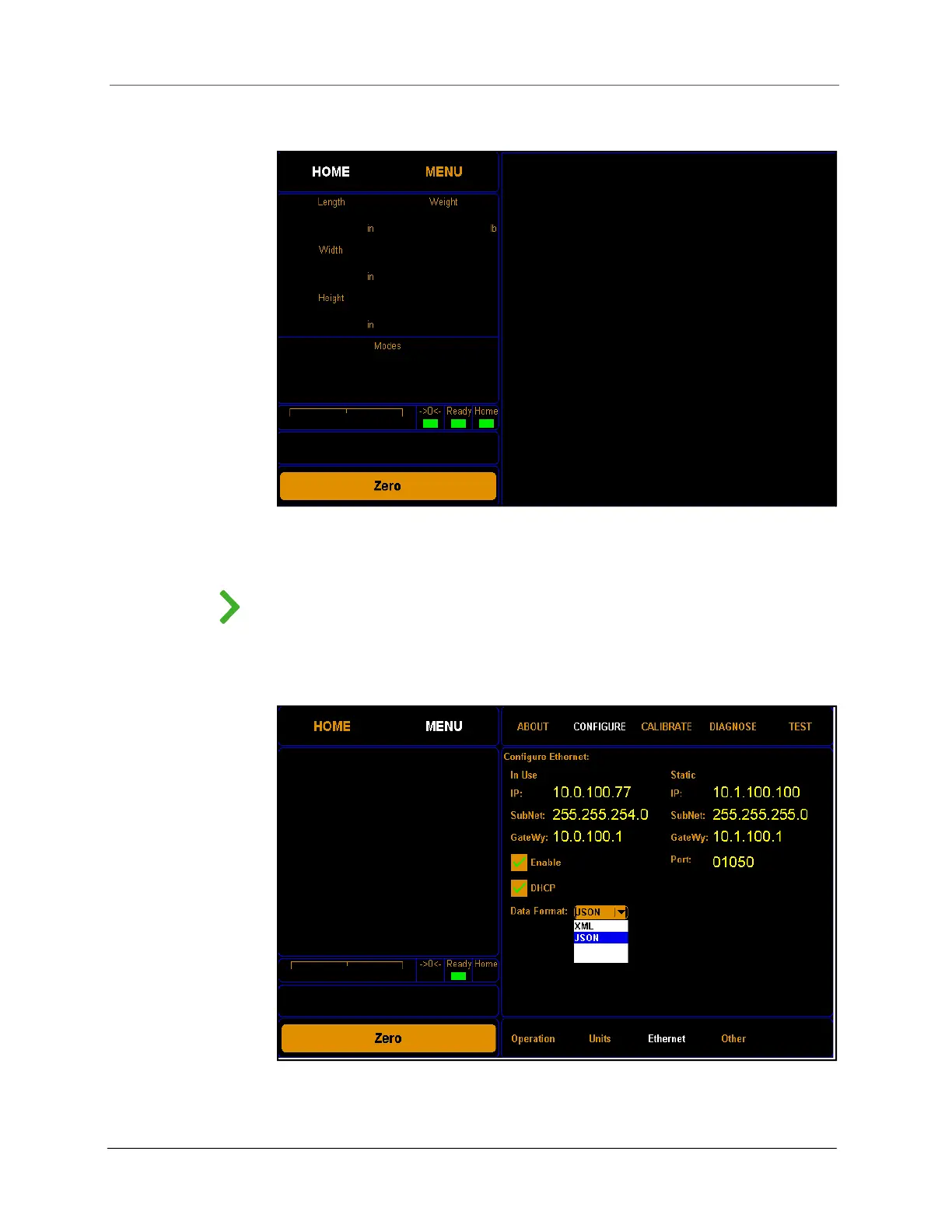

Figure 42

Home screen

Figure 43

Configure Ethernet
