CALIBRATION Calibrating the scale

Cubiscan 325 52

Calibrating the scale

To perform the calibration, you will need the following:

• Official test weight up to 50 pounds (25 kg) (it is recommended that you

calibrate with the maximum weight)

IMPORTANT: Do not begin scale calibration until you have the test weight.

Calibrating without an accurate known weight (within 0.01 of a lb/kg) can

make all future weight readings inaccurate.

Take the following steps to calibrate the Cubiscan 325 scale.

NOTE

When calibrating the scale, the Cubiscan 325 must be stable with no movement of

the platform such as that caused by vibration or air.

1. At the home screen, tap MENU.

NOTE

If you have set up a password previously in the system configuration, you need to

enter the password to unlock the menu. Refer to page 43.

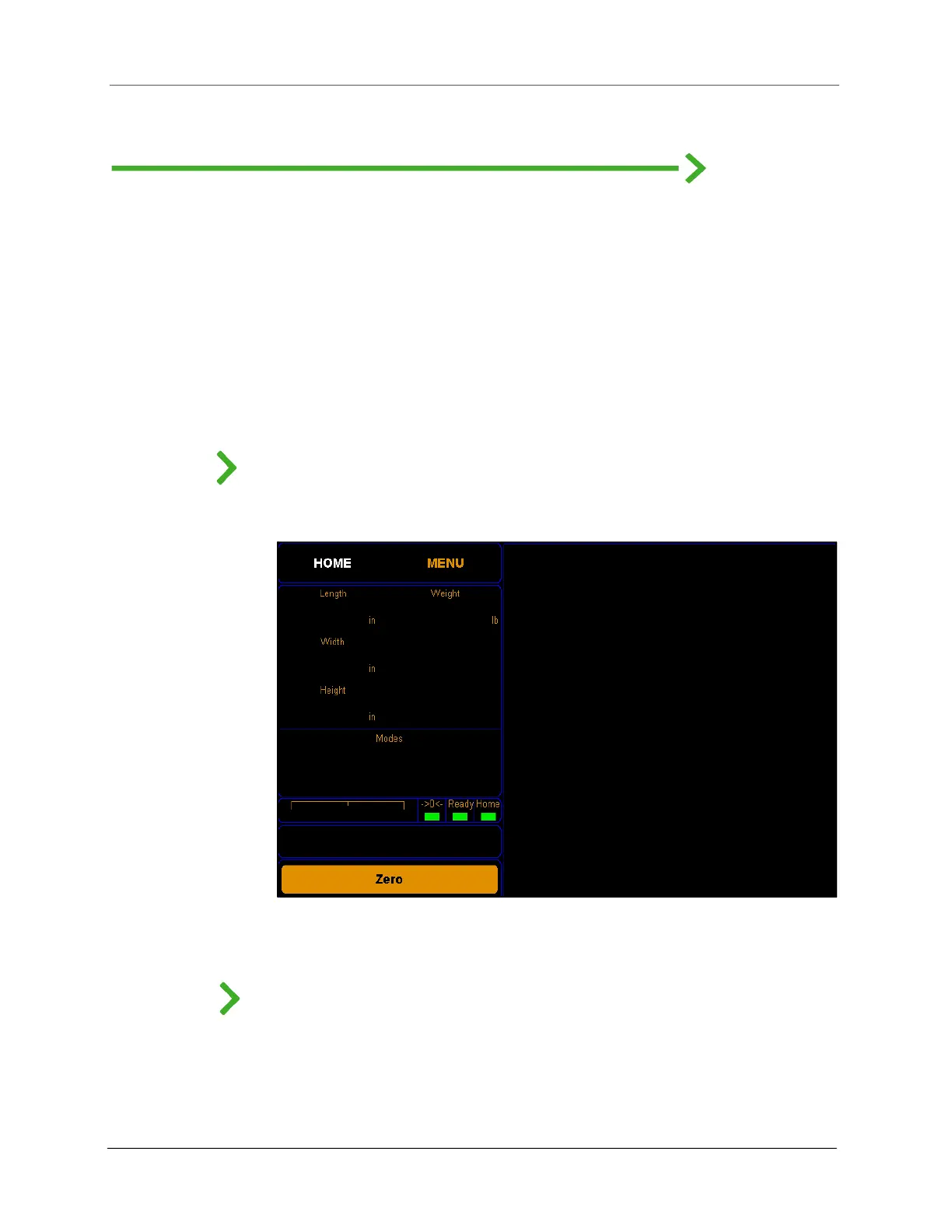

Figure 46

Home screen
