SETUP Assembling the Cubiscan 325

Cubiscan 325 12

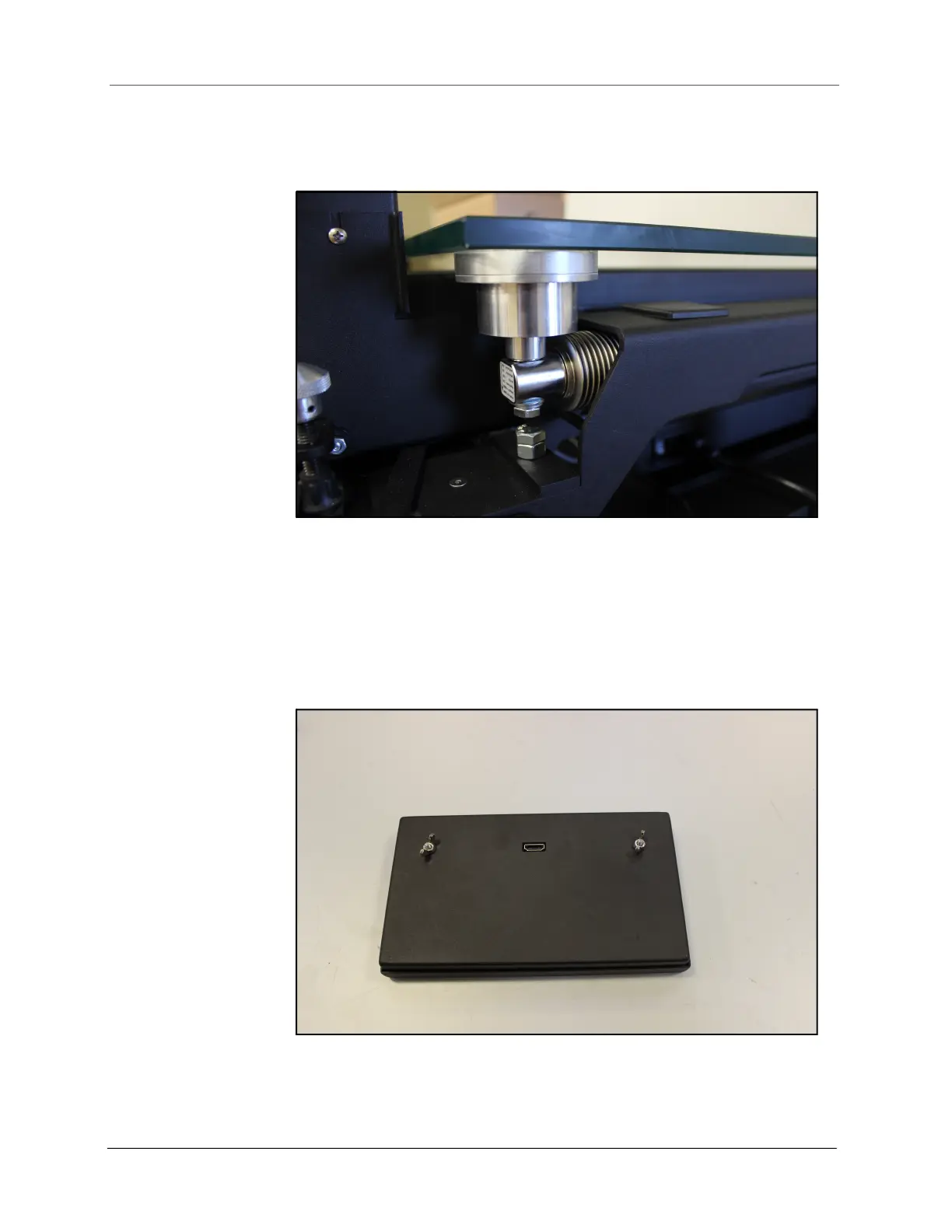

3. Carefully place the glass platform on the load cells, as shown below. It

is best to use two people to move the glass. Avoid placing excessive

force or stress on the load cells.

Attaching the touchscreen

1. Remove the two wing nuts from the back of the touchscreen.

Figure 9

Glass platform

Figure 10

Touchscreen wing nuts
