CubiScan 325 - Figure 52 First Gate Calibration Screen

CALIBRATION Calibrating the gate
Cubiscan 325 56
2. Tap CALIBRATE. Select the Gate option if it is not already selected.
The encoder val field shows the movement of the gate and should read
between 0940 and 0930 when the gate is the furthest from the home
position. The max range value should be set a little lower than the highest
encoder val.
From this screen you can set the measurement window for the Cubiscan
325 using the left and right limit fields.

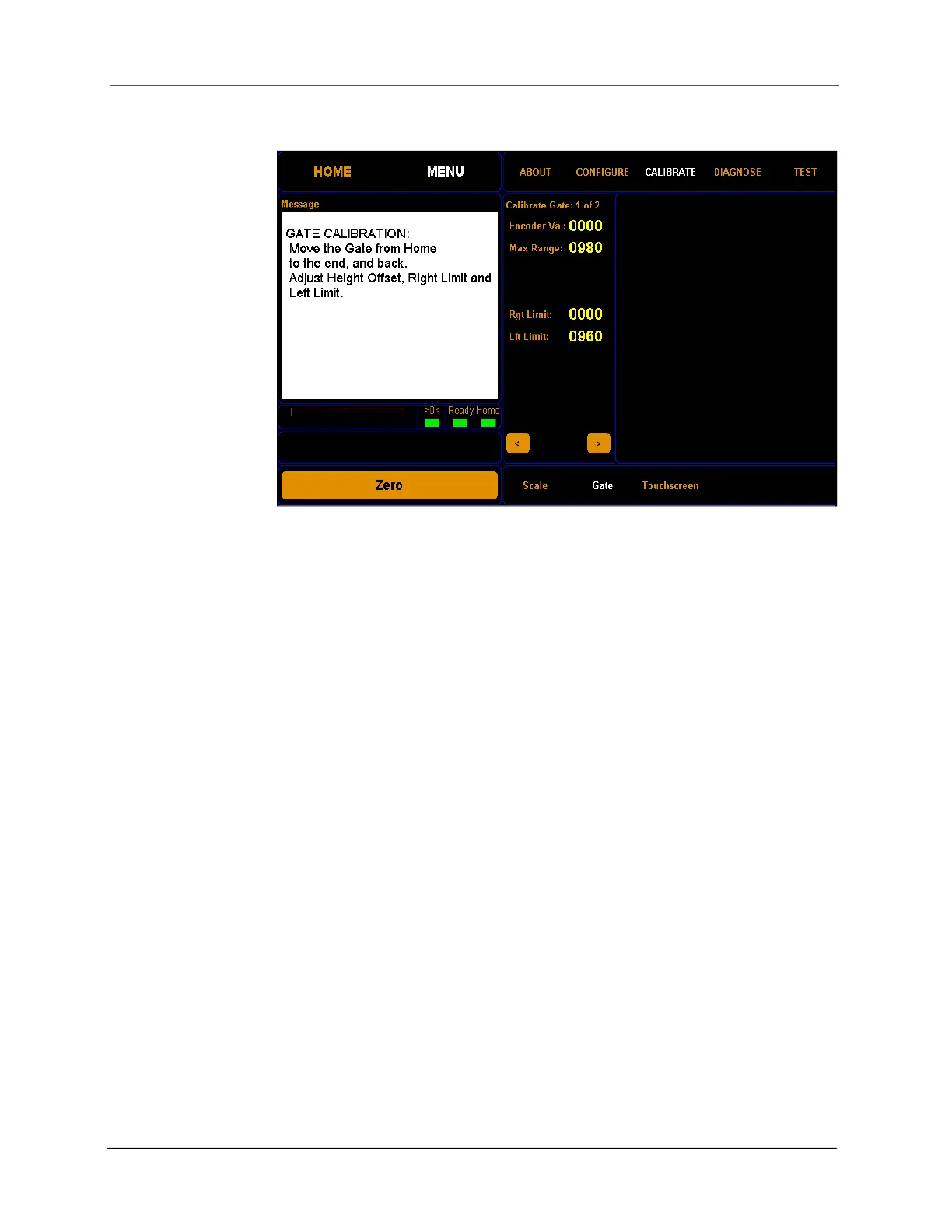

Figure 52
First gate calibration screen
