Culligan Smart Controller (GBE) User Manual

10 Culligan® Smart Controller (GBE) for Softeners and Filters
10 Cat. No. 01021161

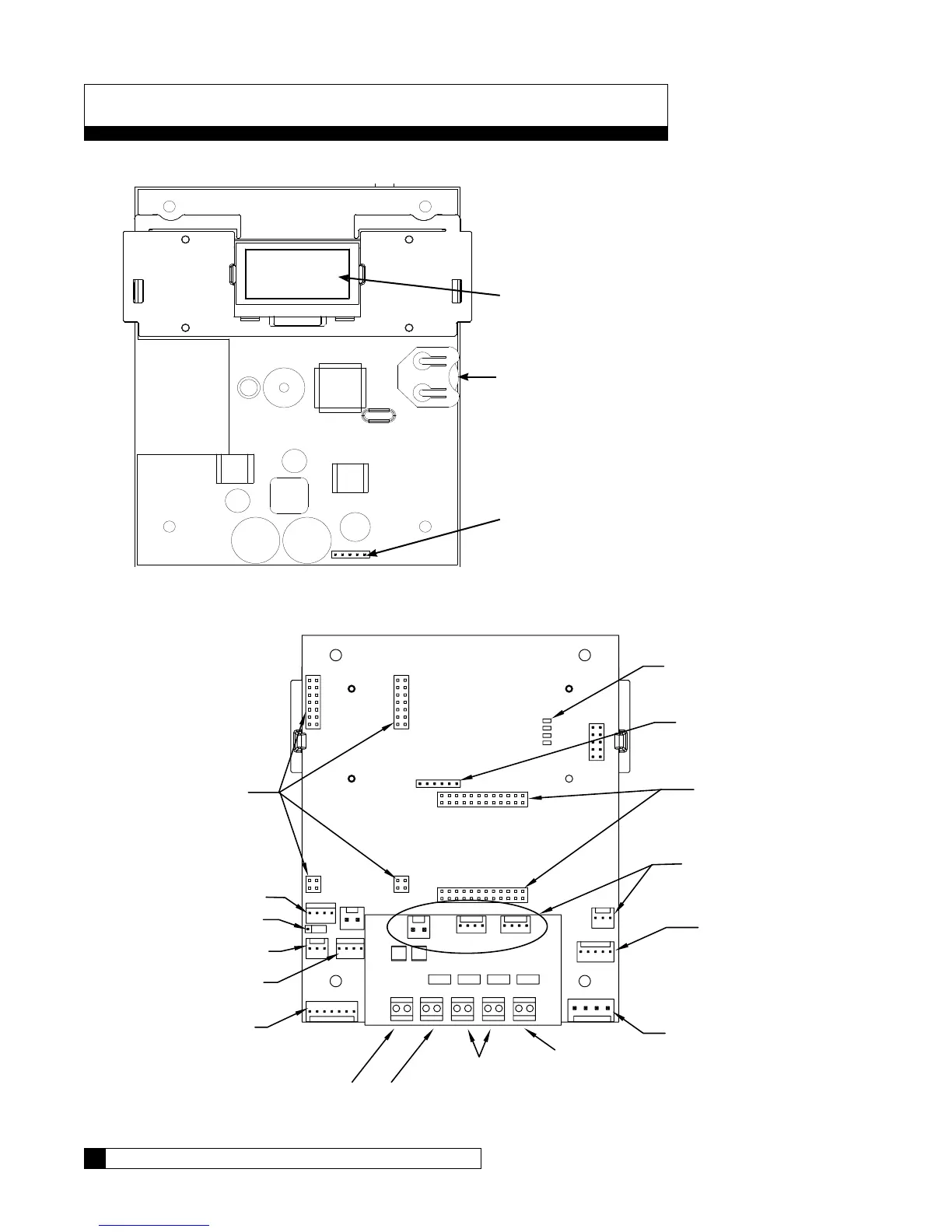

Smart Controller Circuit Board Layout
Smart Controller Circuit Board Layout–Front
Figure 10. Smart Controller circuit board layout, front view.
Smart Controller Circuit Board Layout–Back
Aqua-Sensor
Cable (Optional)
Power Cable
(from transformer)
Optional
Alarm Relay Board
Connection (Aux 5)
Optional Modem
Connections
Data Port
PLC Output
RF Board
Connection
(for remote)
Future Use
Do Not Connect
Anything to these
Communication Cable
(optional)
Motor Position Cable
Multiple Unit Jumper
Flow Meter Cable
(optional)
Smart Brine Tank
Cable (optional)
External regeneration
signal connection (optional)
or external alarm
Motor
Connection
Blocking Valve
Connection (optional)
Programmable
Outputs
(optional)
POSITION
DC
MOTOR
FLOW
METER
RS485
BRINE
TANK
J22
2.5v
24v
AQUA SENSOR
AUX OUT4
AUX OUT3
AUX OUT2
AUX OUT1AUX INPUT
Figure 11. Smart Controller circuit board layout, rear view.
Keypad connector
Battery
CR2032 (Postitive Side Up)
Pull protective tab before activating
power to activate the battery
OLED Display

Culligan Smart Controller (GBE) Specifications

General

Brand	Culligan
Model	Smart Controller (GBE)
Category	Controller
Language	English
